Descriere

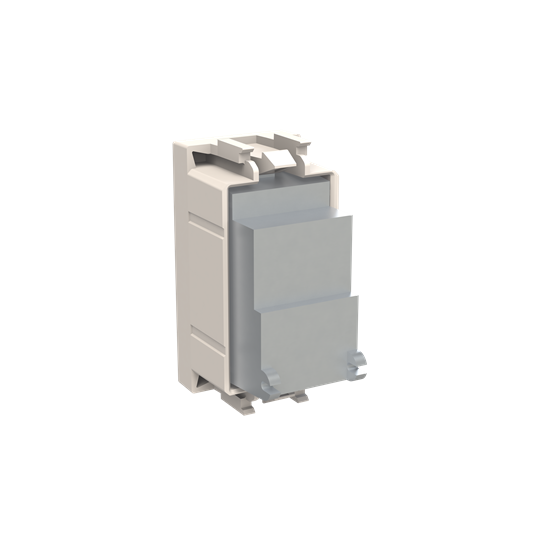

Color: White. Single TV outlet - Dead-end M type - 9,52mm male For 75Ω impedance coaxial cable Avoid small bending radius Frequency range: 5 - 2.400 Mhz Connection loss: 1 dB Isolation: >16 dB Return loss: >7,6 dB DC path (Vdc / mA / Tono): 34 max. / 500 max. / 22kHz - DiSEqC Size: 1 module.
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Assembly arrangement | Modular device for domestic switching devices |
| With dust cover | No |
| With hinged lid | No |
| Contact type | Male |
| With imprint | Yes |
| Number of modules (module system) | 1 |
| With buses/couplings | No |
| With strain relief | No |
| With lighting | No |
| Application | |
| Utilization | Other |
| Options | |
| Support ring | No |
| Imprintable label | Without indication field |
| Anti-bacterial treatment | No |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| Other | |
| Outlet direction | Straight |
| Impact strength | IK00 |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Type of fastening | Engage (snap) |
| Material | |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | |
| Colour | White |
| RAL-number (similar) | 9010 |
| Transparent | No |
| Connection | |
| Suitable for number of connectors | 1 |
| Isolated connections | - |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Measurements | |
| Device width | 22 mm |
| Device height | 44 mm |
| Device depth | 31 mm |
| Min. depth of built-in installation box | - mm |
| Package 1 | |
| weight | 0,78 |
| length | 0,297 |
| width | 0,077 |
| qmax | 10 |
| qmin | 10 |
| um | C62 |
| gtin | 8427238138176 |
| Dimensions of product | |
| Weight | 0,078 |
| Length | 0,044 |
| Width | 0,022 |
| Depth | 0,031 |
