Descriere

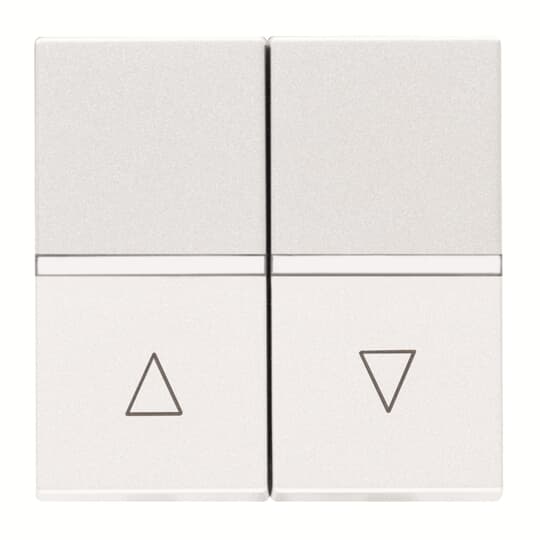

Color: White. Rated voltage: 110 - 250 Vac Rated current: 16 A. Direct control Interlocked gangs Size: 2 modules.
Documente
Alte surse
Specificatii
| Application | |
| For venetian blinds | - |
| Options | |
| For roller blinds | - |
| For awnings | - |
| Label space/information surface | No |
| IFTTT support available | No |
| Model/type | |
| Assembly arrangement | Modular device for domestic switching devices |
| Model | 1-pole push button |
| With electrical latch | - |
| With mechanical locking | - |
| Number of modules (module system) | 2 |
| Electrical | |
| Number of poles | 1 |
| Rated current | 16 A |
| Nominal voltage | 250 V |
| Setting/control | |
| Method of operation | Rocker |
| Mechanical controllable | Yes |
| Electronic controllable | No |
| Number of buttons | 2 |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Type of fastening | Engage (snap) |
| Material | |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Connection | |
| Connection type | Push-in clamp |
| Colour | |
| Colour | White |
| RAL-number (similar) | 9010 |
| Transparent | No |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Measurements | |
| Device width | 44 mm |
| Device height | 44 mm |
| Device diameter | - mm |
| Device depth | - mm |
| Built-in width | - mm |
| Built-in height | - mm |
| Built-in diameter | - mm |
| Built-in depth | - mm |
| Min. depth of built-in installation box | - mm |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| weight | 0,245 |
| length | 0,297 |
| width | 0,077 |
| qmax | 5 |
| qmin | 5 |
| um | C62 |
| gtin | 8427238063591 |
