Descriere

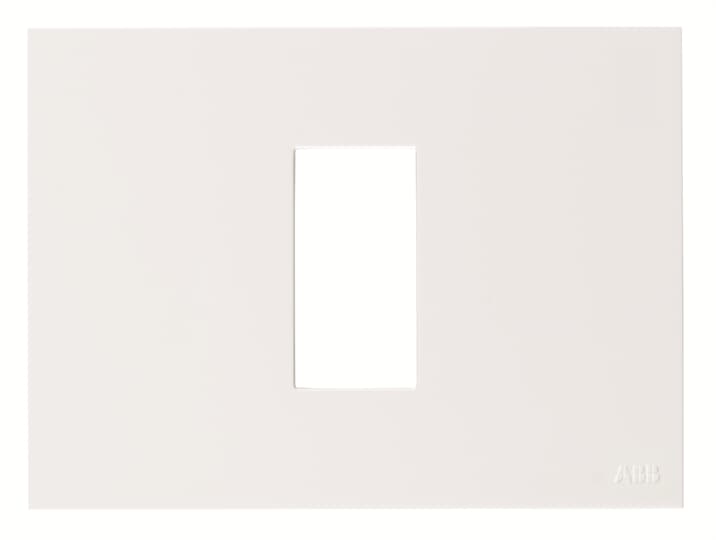

Color: White Size (height x width): 122 x 90 mm Mounting plate code suitable for 83,5 mm screw distance boxes: N2373.9. Frame and mounting plate also suitable for 3 module Italian type boxes, 4"x2" Brazilian boxes and American boxes. Flush mounting boxes code: 499.3 Surface mounting boxes code: N2993
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Number of units | 1 |
| Number of device inserts horizontal | 1 |
| Number of device inserts vertical | 1 |
| Number of modules horizontal (module system) | 1 |
| Number of modules vertical (module system) | 1 |
| With hinged lid | No |
| Mounting/installation | |
| Mounting direction | Horizontal and vertical |
| With mounting grid | No |
| Flush-mounted installation | Yes |
| Suitable for wall duct | Yes |
| Suitable for built-in installation | No |
| Type of fastening | Clamp mounting |
| Application | |
| Suitable for subfloor installation duct box | No |
| Options | |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| Material | |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | |
| Colour | White |
| RAL-number (similar) | 9010 |
| Transparent | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Other | |
| Impact strength | IK04 |
| Measurements | |
| Width | 122 mm |
| Height | 90 mm |
| Depth | 7.5 mm |
| Built-in width | - mm |
| Built-in height | - mm |
| Diameter bore hole (opening) | - mm |
| Package 1 | |
| weight | 1,08 |
| length | 0,272 |
| width | 0,135 |
| qmax | 20 |
| qmin | 20 |
| um | C62 |
| gtin | 8427238101965 |
| Dimensions of product | |
| Weight | 0,054 |
| Length | 0,09 |
| Width | 0,122 |
| Depth | 0,0075 |
