Descriere

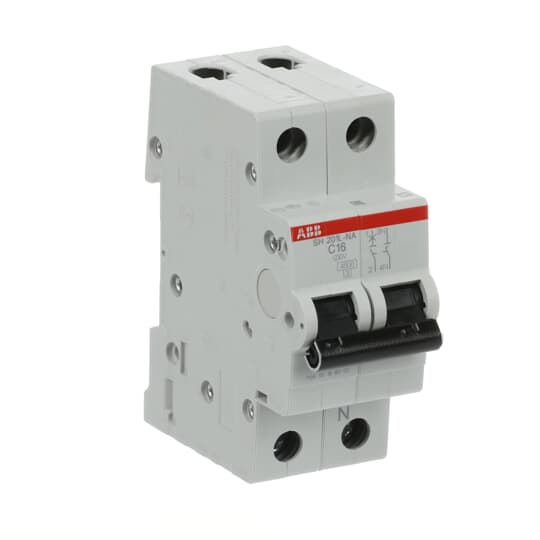

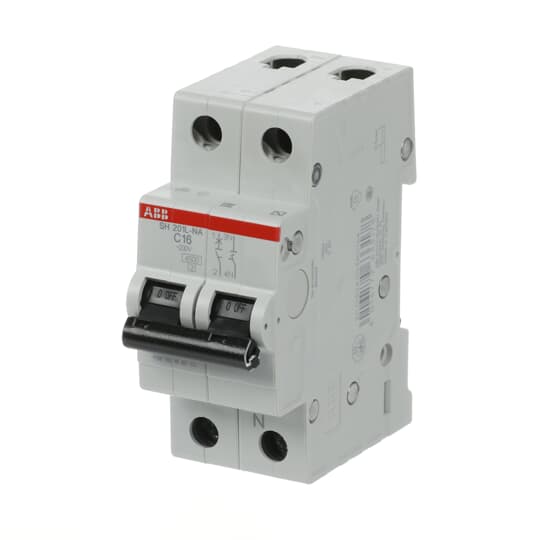

Compact Home SH200L miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 4,5 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200L comply with IEC/EN 60898-1, allowing the use for residential applications.
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Built-in depth | 69 mm |
| Width in number of modular spacings | 2.0 |
| Electrical | |
| Release characteristic | C |
| Rated current | 16 A |
| Rated voltage | 230 V |
| Rated insulation voltage Ui | 440 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 4.5 kA |
| Voltage type | Other |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | - kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | - kA |
| Power loss | 5 W |
| Current limiting class | 3 |
| Overvoltage category | 3 |
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 2 |
| Mounting/installation | |
| Flush-mounted installation | No |
| Options | |
| Concurrently switching neutral conductor | Yes |
| Additional equipment possible | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Operating conditions | |
| Ambient temperature during operating | -25 °C |
| Connection | |
| Connectable conductor cross section multi-wired | 0.75 mm² |
| Connectable conductor cross section solid-core | 0.75 mm² |
| Package 1 | |
| weight | 1,29 |
| length | 0,183 |
| width | 0,092 |
| qmax | 10 |
| qmin | 10 |
| um | C62 |
| gtin | 4016779633178 |
| Package 2 | |
| weight | 16 |
| length | 0,395 |
| width | 0,275 |
| qmax | 120 |
| qmin | 120 |
| um | piece |
| gtin | 4016779988988 |
| Dimensions of product | |
| Weight | 0,25 |
| Length | 0,085 |
| Width | 0,035 |
| Depth | 0,069 |
