Descriere

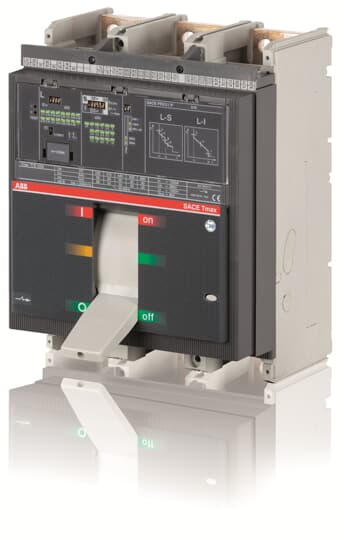

C.BREAKER TMAX T7S 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1600
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated permanent current Iu | 1600 A |
| Rated voltage | 690 V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | - kA |
| Overload release current setting | - A |
| Adjustment range short-term delayed short-circuit release | 1600 A |
| Adjustment range undelayed short-circuit release | - A |
| Power loss | 77 W |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Protection | |
| Integrated earth fault protection | No |
| Complete device with protection unit | Yes |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Bolt connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Mounting/installation | |
| Suitable for DIN rail (top hat rail) mounting | No |
| DIN rail (top hat rail) mounting optional | No |
| Model/type | |
| With switched-off indicator | No |
| Type of control element | Wing knob |
| Motor drive integrated | No |
| Options | |
| Motor drive optional | Yes |
| Package 1 | |
| weight | 14,33 |
| length | 0,36 |
| width | 0,28 |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 8015644655433 |
| Dimensions of product | |
| Weight | 13,614 |
| Length | 0,268 |
| Width | 0,21 |
| Depth | 0,154 |
