Descriere

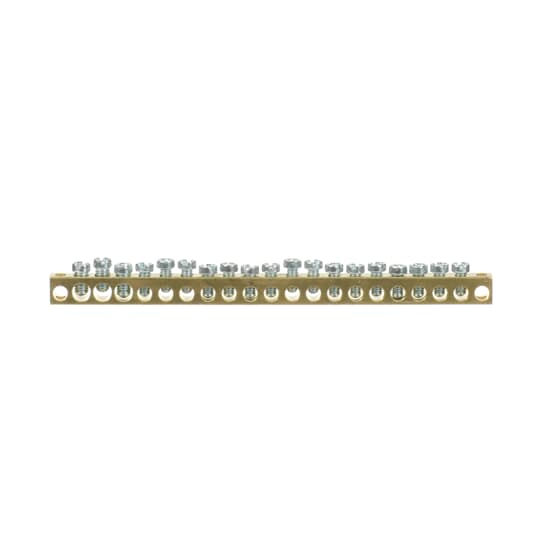

Terminals for consumer units - Terminal bars - 16 holes diam. 4.5 mm and 3 holes diam. 5.6 mm
Documente
Alte surse
Specificatii
| Mounting/installation | |
| Drill hole distance centrically | - mm |
| Mounting method | Other |
| Protection | |
| Explosion-tested version 'Ex e' | No |
| Inflammability class of insulation material according to UL94 | - |
| Connection | |
| Connectable conductor cross section fine-strand without cable end sleeve | 16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 16 mm² |
| Connectable conductor cross section solid-core | - mm² |
| Connectable conductor cross section multi-wired | - mm² |
| Type of electrical connection 1 | - |
| Type of electrical connection 2 | - |
| Number of clamp positions per pole | - |
| Electrical | |
| Rated current In | 63 A |
| Rated voltage | 400 V |
| Number of poles | - |
| Material | |
| Material insulation body | Other |
| Halogen free | No |
| Operating conditions | |
| Operating temperature | -25 °C |
| Closing plate required | - |
| Measurements | |
| Width | - mm |
| Height | - mm |
| Depth | 19 mm |
| Colour | |
| Colour | Other |
| Transparent | No |
| Package 1 | |
| weight | 0,073 |
| qmax | 20 |
| qmin | 20 |
| um | C62 |
| gtin | 8000126125337 |
| Package 2 | |
| weight | 17,52 |
| length | 0,0004 |
| width | 0,0003 |
| qmax | 240 |
| qmin | 240 |
| um | piece |
| gtin | 8000126125337 |
