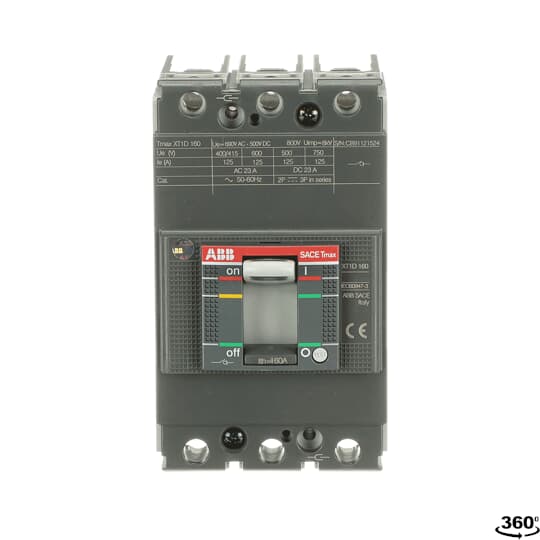

SWITCH-DISCONNECTOR TMAX XT1D 160 FIXED THREE-POLE WITH FRONT TERMINALS
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Version as main switch | Yes |
| Version as maintenance-/service switch | No |
| Version as safety switch | No |
| Version as emergency stop installation | No |
| Number of switches | - |
| Motor drive integrated | No |
| Type of control element | - |
| With pre-assembled cabling | - |
| Options | |
| Version as reversing switch | No |
| Motor drive optional | Yes |
| Voltage release optional | No |
| Interlockable | Yes |
| Electrical | |
| Max. rated operation voltage Ue AC | 690 V |
| Rated operating voltage | 0 V |
| Rated permanent current Iu | 160 A |
| Rated permanent current at AC-23, 400 V | - A |
| Rated permanent current at AC-21, 400 V | 160 A |
| Rated operation power at AC-3, 400 V | - kW |
| Rated short-time withstand current lcw | 2 kA |
| Rated operation power at AC-23, 400 V | - kW |
| Switching power at 400 V | - kW |
| Conditioned rated short-circuit current Iq | - kA |
| Number of poles | 3 |
| Connection | |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Type of electrical connection of main circuit | Bolt connection |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Mounting/installation | |
| Suitable for floor mounting | No |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | No |
| Suitable for intermediate mounting | No |
| Application | |
| Suitable for distribution board installation | Yes |
| Colour | |
| Colour control element | White |
| Protection | |
| Degree of protection (IP), front side | IP20 |
| Degree of protection (NEMA) | - |
| Measurements | |
| Width | 76.2 mm |
| Height | 130 mm |
| Depth | 70 mm |
| Width in number of modular spacings | - |
| Package 1 | |
| weight | 1,082 |
| length | 0,13 |
| width | 0,142 |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 8015644021047 |
| Dimensions of product | |
| Weight | 1,028 |
| Length | 0,13 |
| Width | 0,0762 |
| Depth | 0,07 |
