Descriere

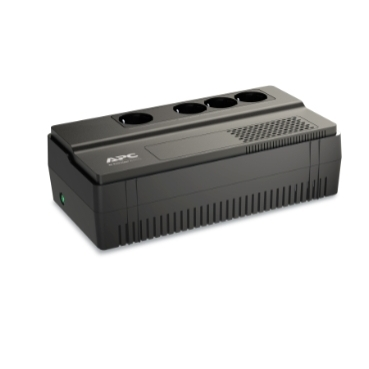

APC EASY UPS BV 800VA, AVR, Schuko Outlet, 230V
Documente
Specificatii
| Options | |
| Potential free switch contact | No |
| Auto shut down function | No |
| Modular | No |
| SNMP | No |
| Electrical | |
| Input voltage | 230 V |
| Output power factor | 0.6 |
| Max. voltage distortion output (linear load) | 0 % |
| Output apparent power | 800 VA |
| Number of phases primary | 1 |
| Number of phases secondary | 1 |
| Voltage type | AC |
| Output voltage | 230 V |
| Connection | |
| Number of output connections C19 | 0 |
| Number of output connections C13 | 0 |
| Number of output connections with protective contact CEE 7/3 (type F) | 4 |
| USB interface | No |
| Number of output connections fixed connection | 0 |
| Number of output connections French standard (Type E) | 0 |
| Application | |
| Suitable for network-management | No |
| Performance | |
| Efficiency in eco-mode | 0 % |
| Overall efficiency | 96 % |
| Output effective power | 450 W |
| Communication | |
| With communication interface RS-232 | No |
| Measurements | |
| Height | 86 mm |
| Width | 160.5 mm |
| Weight | 5.3 kg |
| Depth | 305 mm |
| Other | |
| Primary frequency | 50 Hz |
| Secondary frequency | 50 Hz |
| Bridging time full load | 0 min |
| USV- technology | Line-interactive |
| Model/type | |
| Construction type | Freestanding model |
| Package 1 | |
| volume | 12173 cm3 |
| weight | 5,618 kg |
| length | 37 cm |
| width | 23,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304338369 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 23,831 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 10731304338366 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 107,324 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 16 |
| qmin | 16 |
| um | PF |
