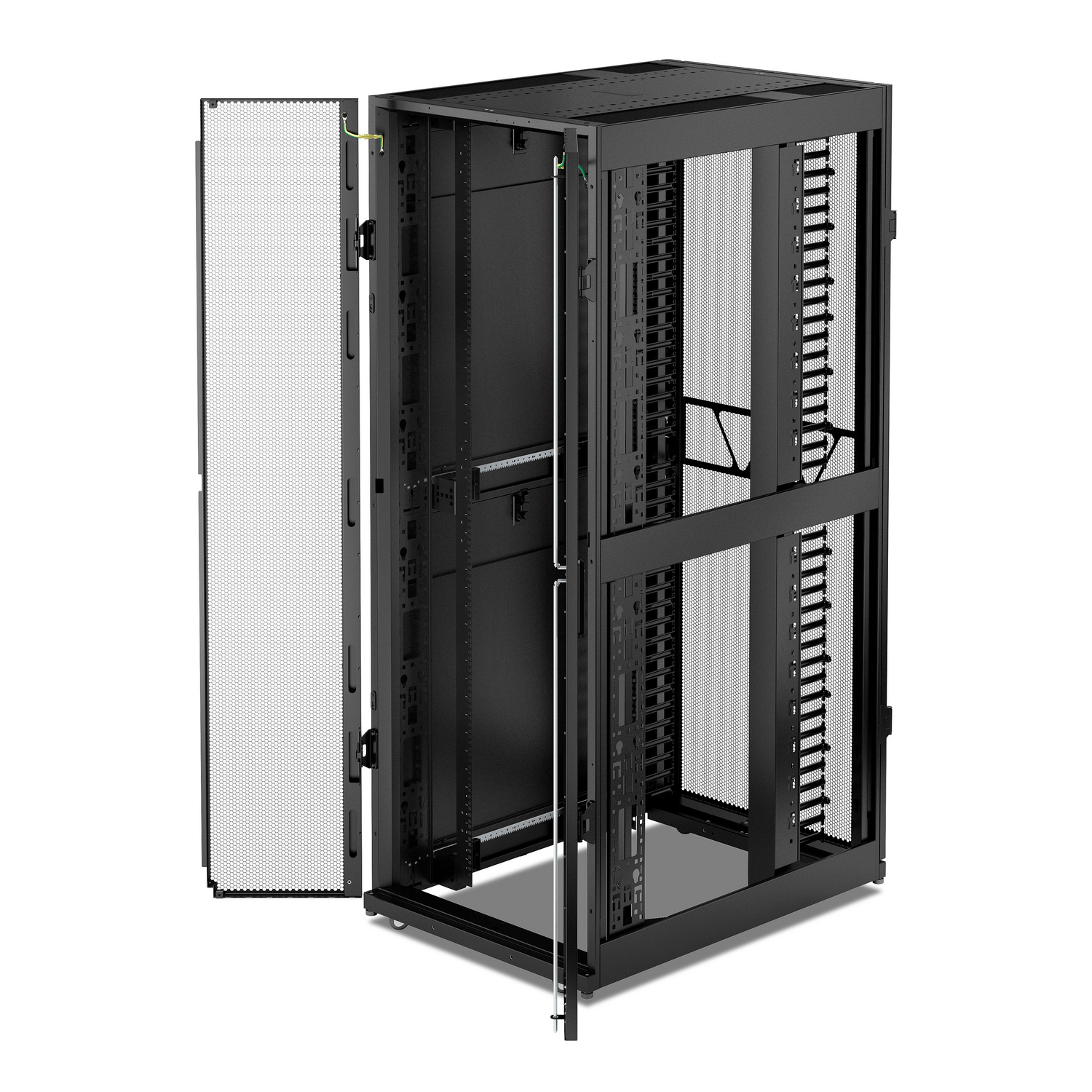

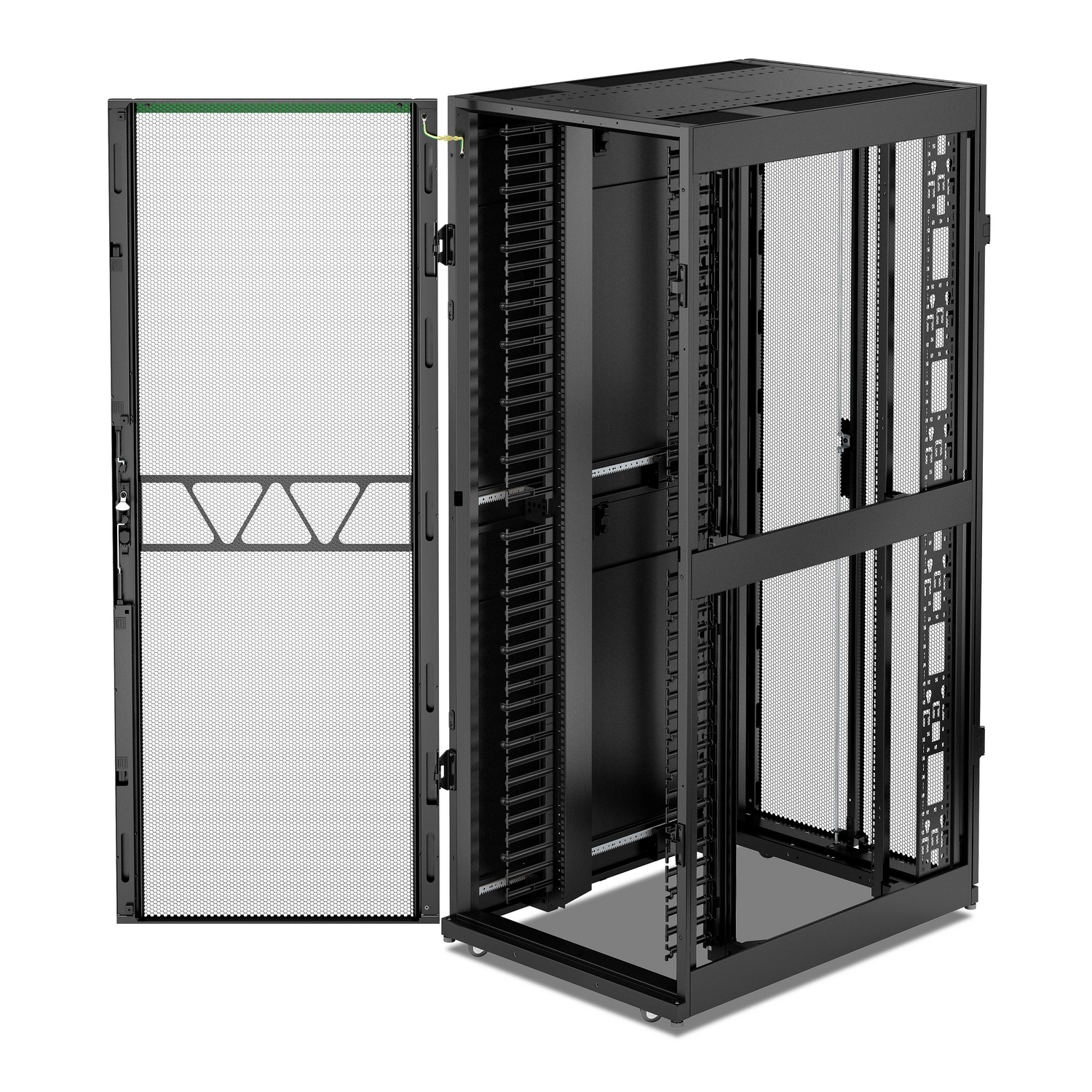

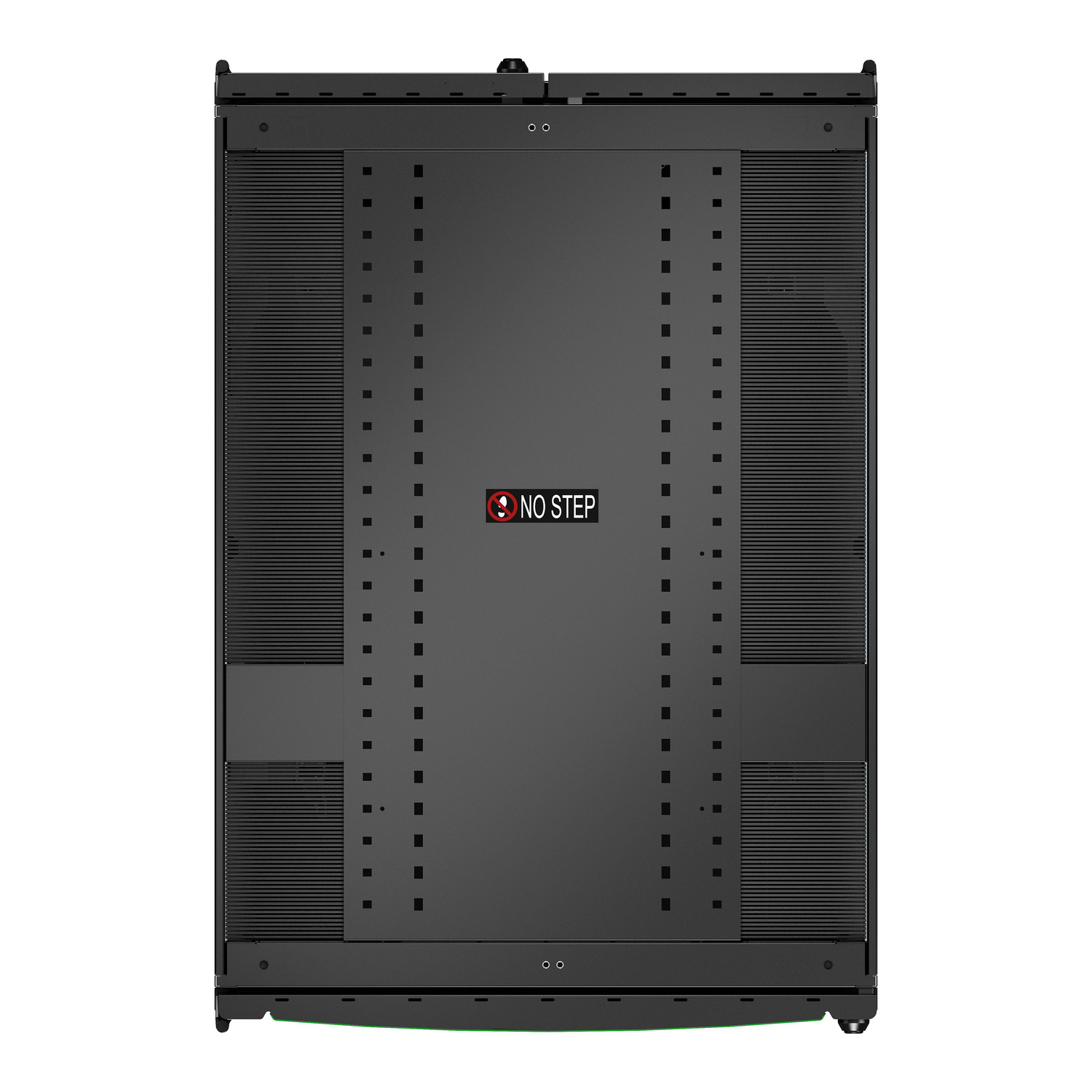

APC NetShelter SX Networking Enclosure Gen2, 42U,1991Hx750Wx1070Dmm,with vertical cable mgrs,Black

Cod produs: AR3140B2

Producator: APC

Set: 1 bucati

731304753209

APC NetShelter SX Networking Enclosure, 42U, 1991H x 750W x 1070D mm, wtih Sides, Black

Fisa tehnica

Product Data Sheet

Instructiuni

User guide

Brochure

Declaratie de conformitate

Model/type
With glazed door	No
Model	With permanent frame
With earthing	No
With front door	Yes
With roof plate	Yes
With base	No
Type of ventilation	None
Number of doors	2
Type of profile rail	None
With sidewall	Yes
With rear door	Yes
With vertical cable management	Yes
Rear door locking system	2-point
Front door locking system	3-point
Measurements
Modular spacing	Other
Height	1991 mm
Width	750 mm
Depth	1070 mm
Number of height units	42
Operating conditions
Max. load capacity	1020 kg
Colour
RAL-number	-
Colour	Black
Protection
Degree of protection (IP)	IP20
Degree of protection (NEMA)	1
Mounting/installation
Demountable	Yes
Mounting level	None
Material
Surface finishing	Powder coating
Material	Steel
Material rear door	Steel
Material front door	Steel
Package 1
volume	2101983,072 cm3
weight	187,35 kg
length	115,8 cm
width	85,3 cm
qmax	1
qmin	1
um	C62
gtin	731304753209
