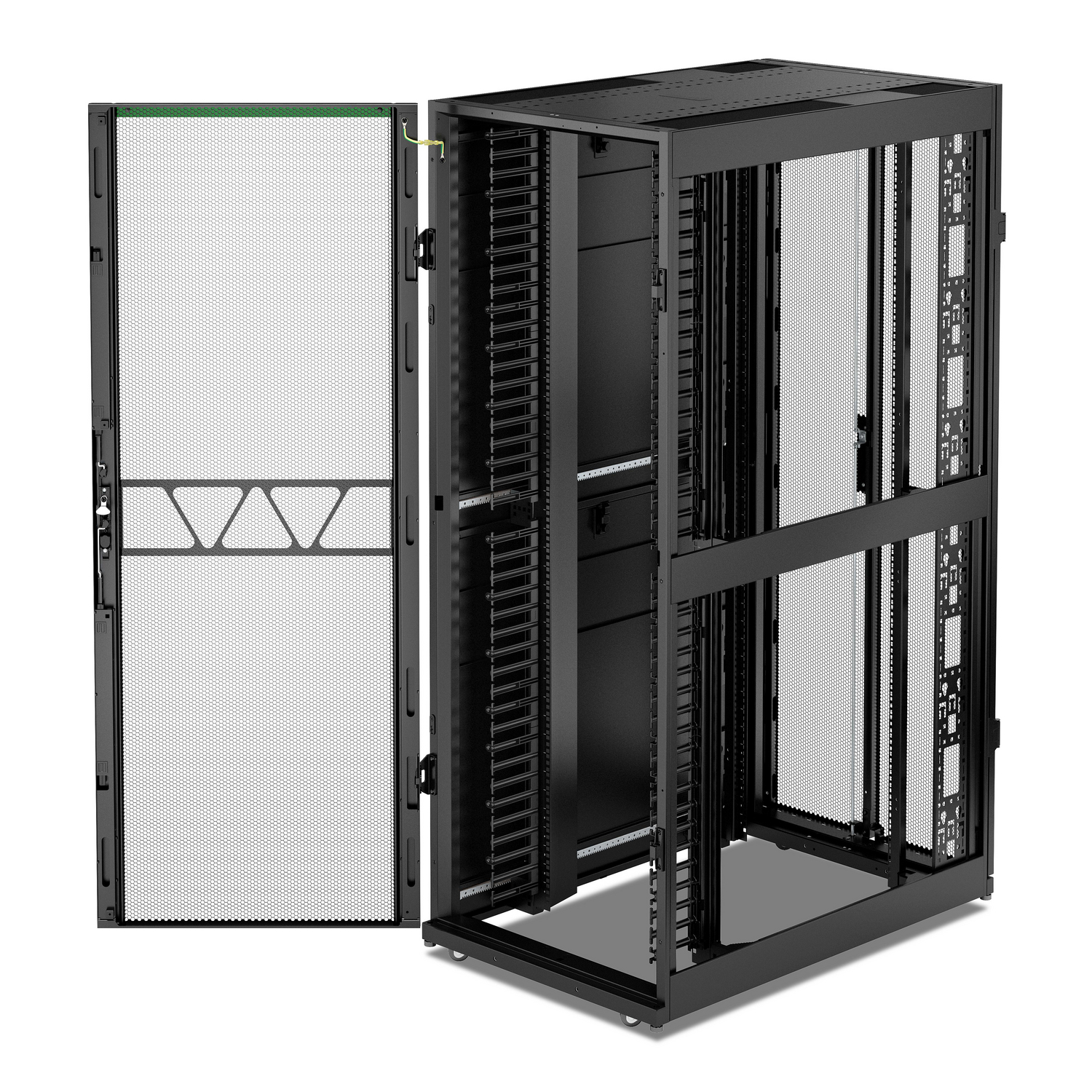

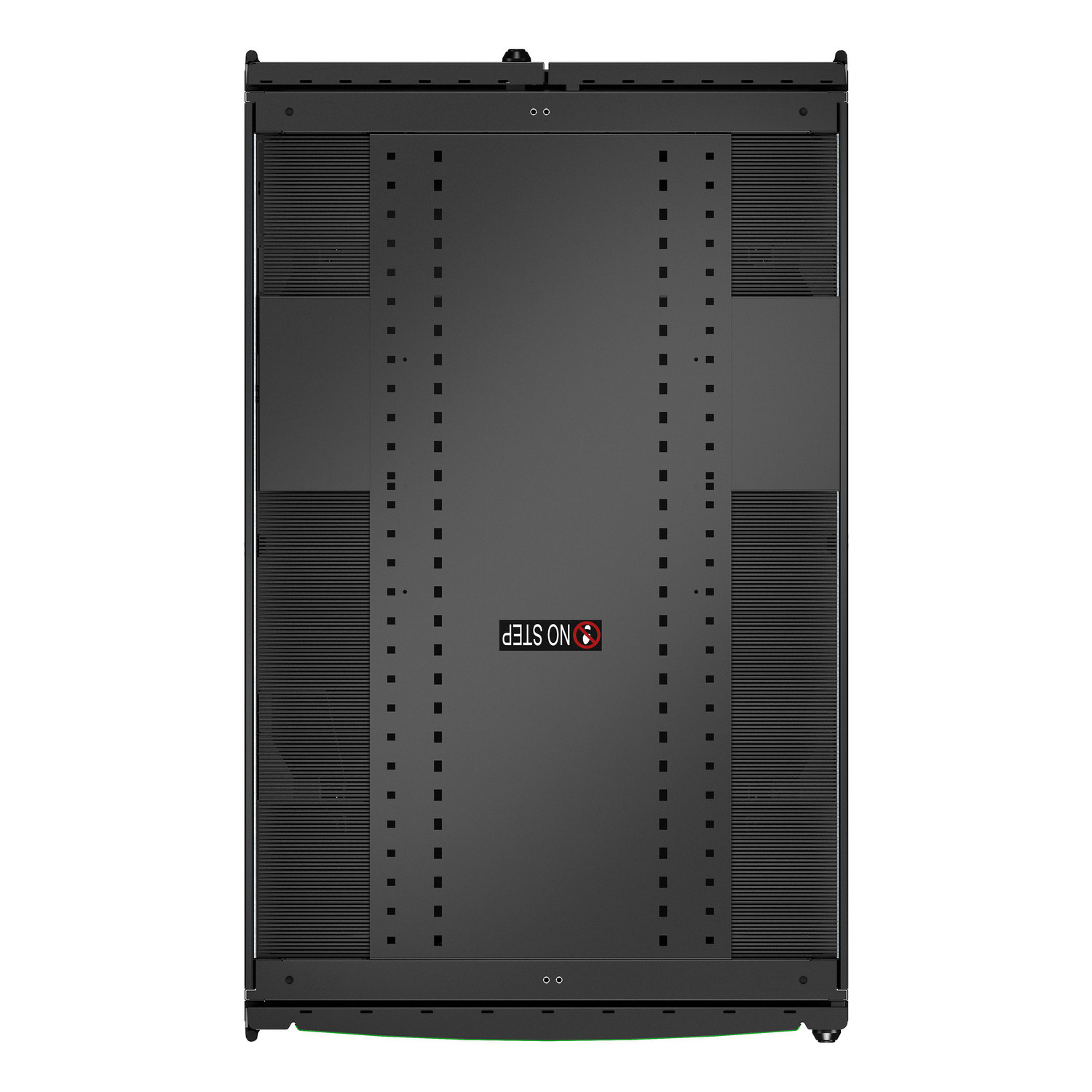

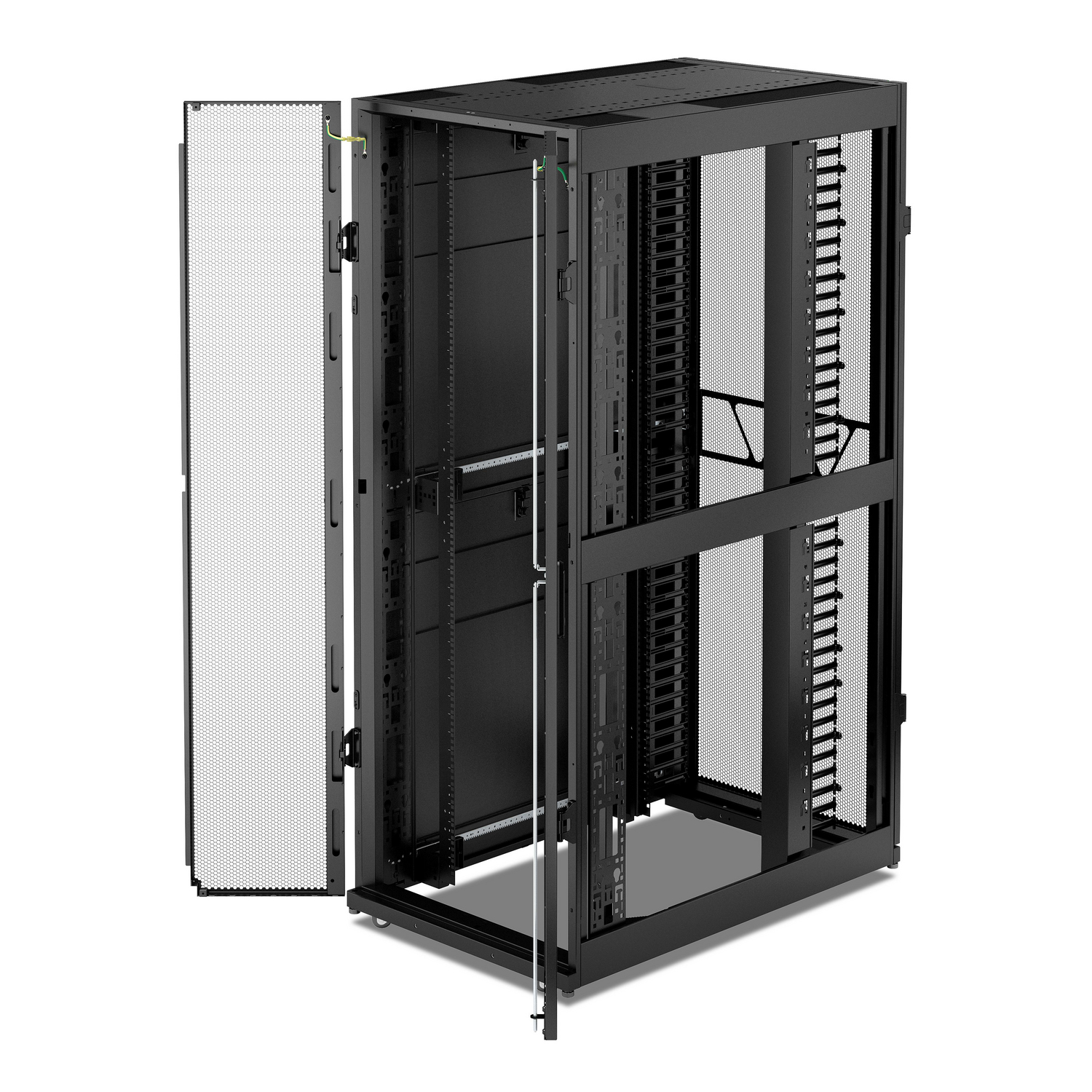

APC NetShelter SX Networking Enclosure Gen2, 42U,1991Hx750Wx1200Dmm, with vertical cable mgrs, Black

Cod produs: AR3340B2

Producator: APC

Set: 1 bucati

731304753391

APC NetShelter SX, Networking Rack Enclosure, 42U, 1991H x 750W x 1200D mm, with Sides, Black

Fisa tehnica

Product Data Sheet

Instructiuni

User guide

Brochure

Declaratie de conformitate

Model/type
Model	With permanent frame
With glazed door	No
With earthing	No
With front door	Yes
With roof plate	Yes
With base	No
Type of ventilation	None
Number of doors	2
Type of profile rail	None
With sidewall	Yes
With rear door	Yes
With vertical cable management	Yes
Rear door locking system	2-point
Front door locking system	3-point
Measurements
Modular spacing	Other
Height	1991 mm
Width	750 mm
Depth	1200 mm
Number of height units	42
Operating conditions
Max. load capacity	1020 kg
Colour
RAL-number	-
Colour	Black
Protection
Degree of protection (IP)	IP20
Degree of protection (NEMA)	1
Mounting/installation
Demountable	Yes
Mounting level	None
Material
Surface finishing	Powder coating
Material	Steel
Material rear door	Steel
Material front door	Steel
Package 1
volume	2401488,432 cm3
weight	203,54 kg
length	132,3 cm
width	85,3 cm
qmax	1
qmin	1
um	C62
gtin	731304753391
