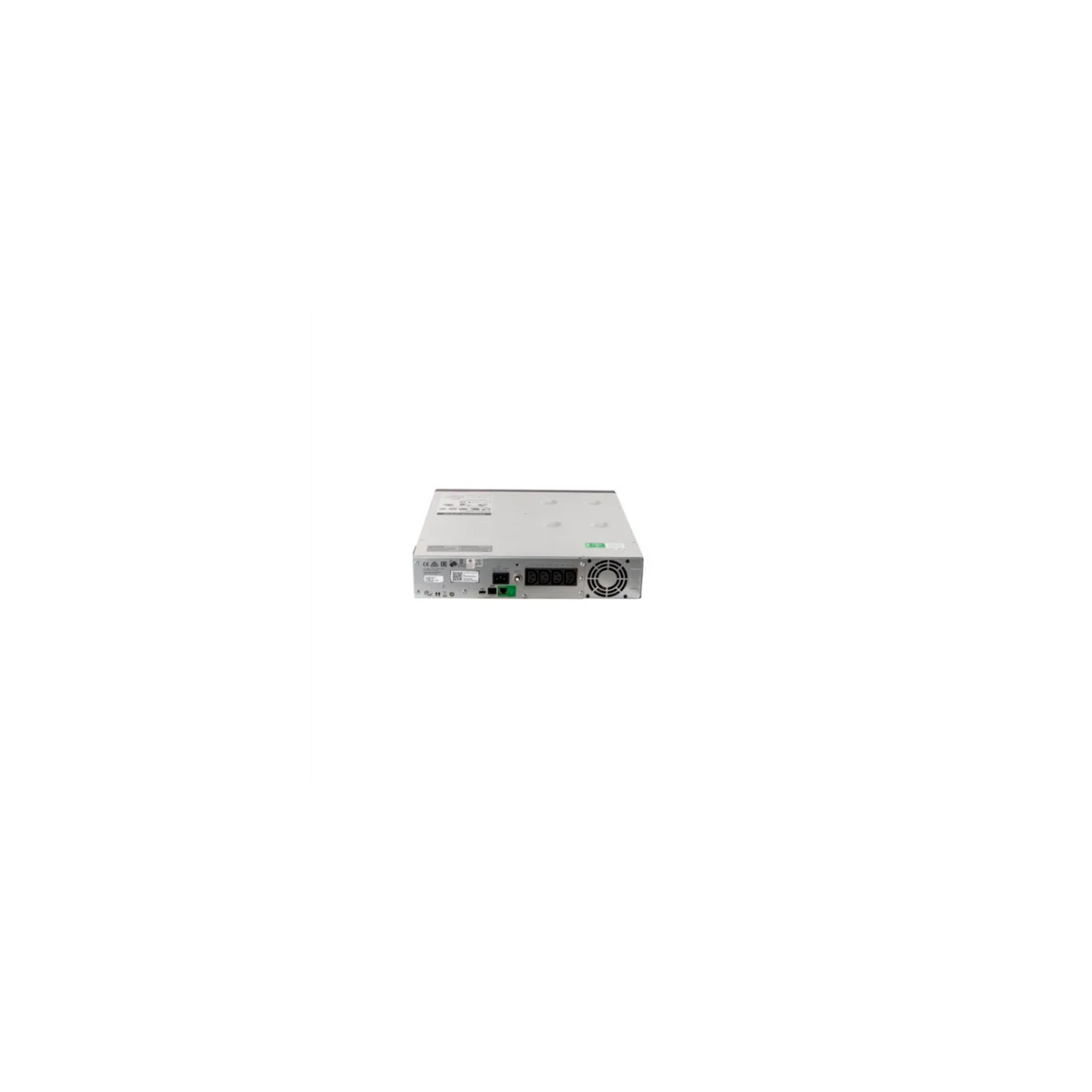

APC Smart-UPS C 1500VA LCD RM 2U 230V with SmartConnect

Cod produs: SMC1500I-2UC

Autentificati-va pentru a vedea pretul.

Producator: APC

Set: 1 bucati

731304332954

Descriere

APC Smart-UPS C 1500VA LCD RM 2U 230V with SmartConnect

Documente

Fisa tehnica

Product Data Sheet

Instructiuni

Declaratie de conformitate

Alte surse

Circularity Profile

Specificatii

Options
Potential free switch contact	No
Auto shut down function	No
Modular	No
SNMP	No
Electrical
Input voltage	230 V
Output power factor	0.6
Max. voltage distortion output (linear load)	0.05 %
Output apparent power	1500 VA
Number of phases primary	1
Number of phases secondary	1
Voltage type	AC
Output voltage	230 V

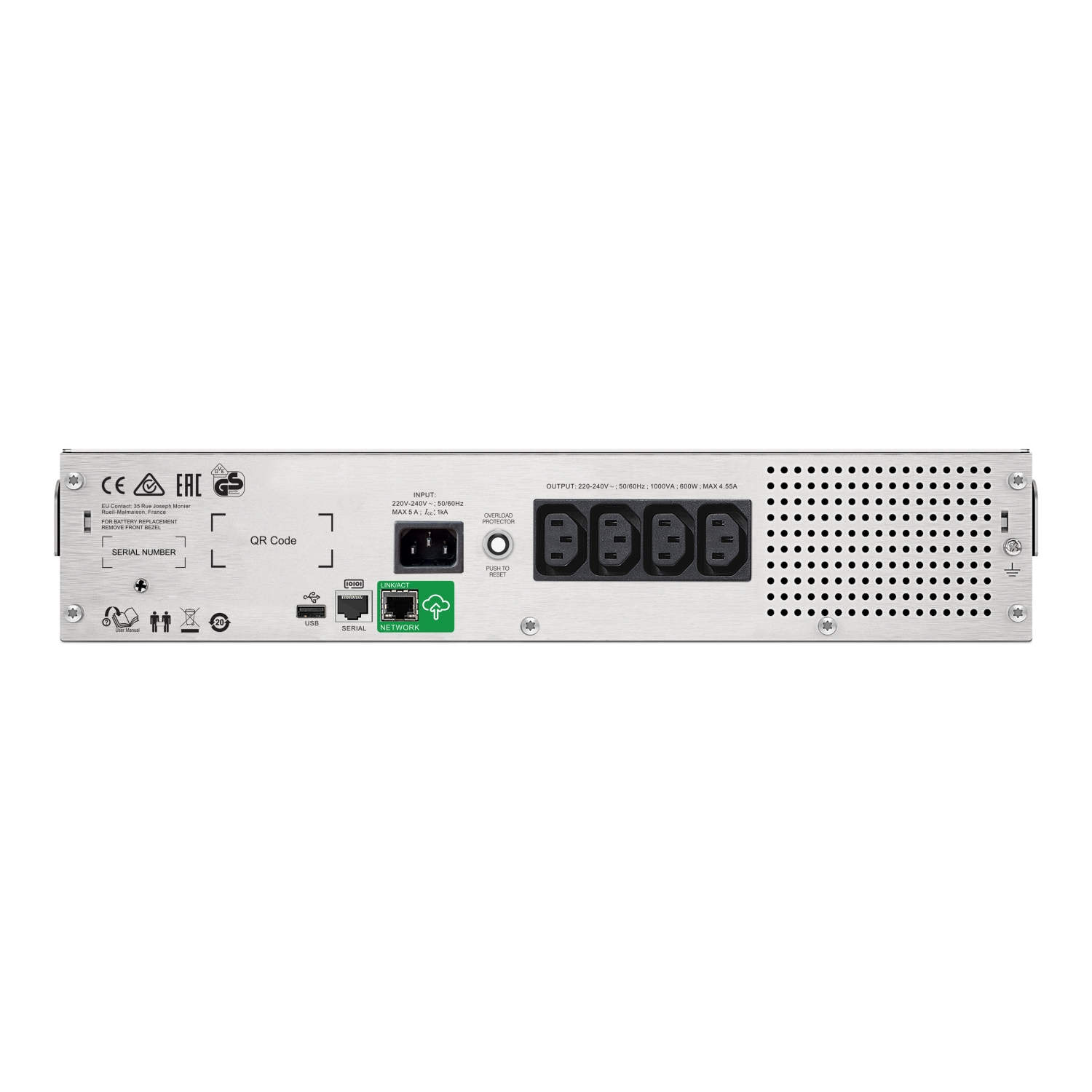

Connection
Number of output connections C19	0
Number of output connections C13	4
Number of output connections with protective contact CEE 7/3 (type F)	0
USB interface	Yes
Input connection	C14
Number of output connections fixed connection	0
Number of output connections French standard (Type E)	0
Application
Suitable for network-management	No
Performance
Efficiency in eco-mode	96 %
Overall efficiency	92 %
Output effective power	900 W
Communication
With communication interface RS-232	No
Measurements
Height	86 mm
Width	432 mm
Weight	28.64 kg
Depth	477 mm
Other
Primary frequency	50 Hz
Secondary frequency	50 Hz
Bridging time full load	10.4 min
USV- technology	Line-interactive
Model/type
Construction type	482.6 mm (19 inch) device
Package 1
volume	89903,682 cm3
weight	31,91 kg
length	59,4 cm
width	60,3 cm
qmax	1
qmin	1
um	C62
gtin	731304332954

Afiseaza mai multe specificatii
