Descriere

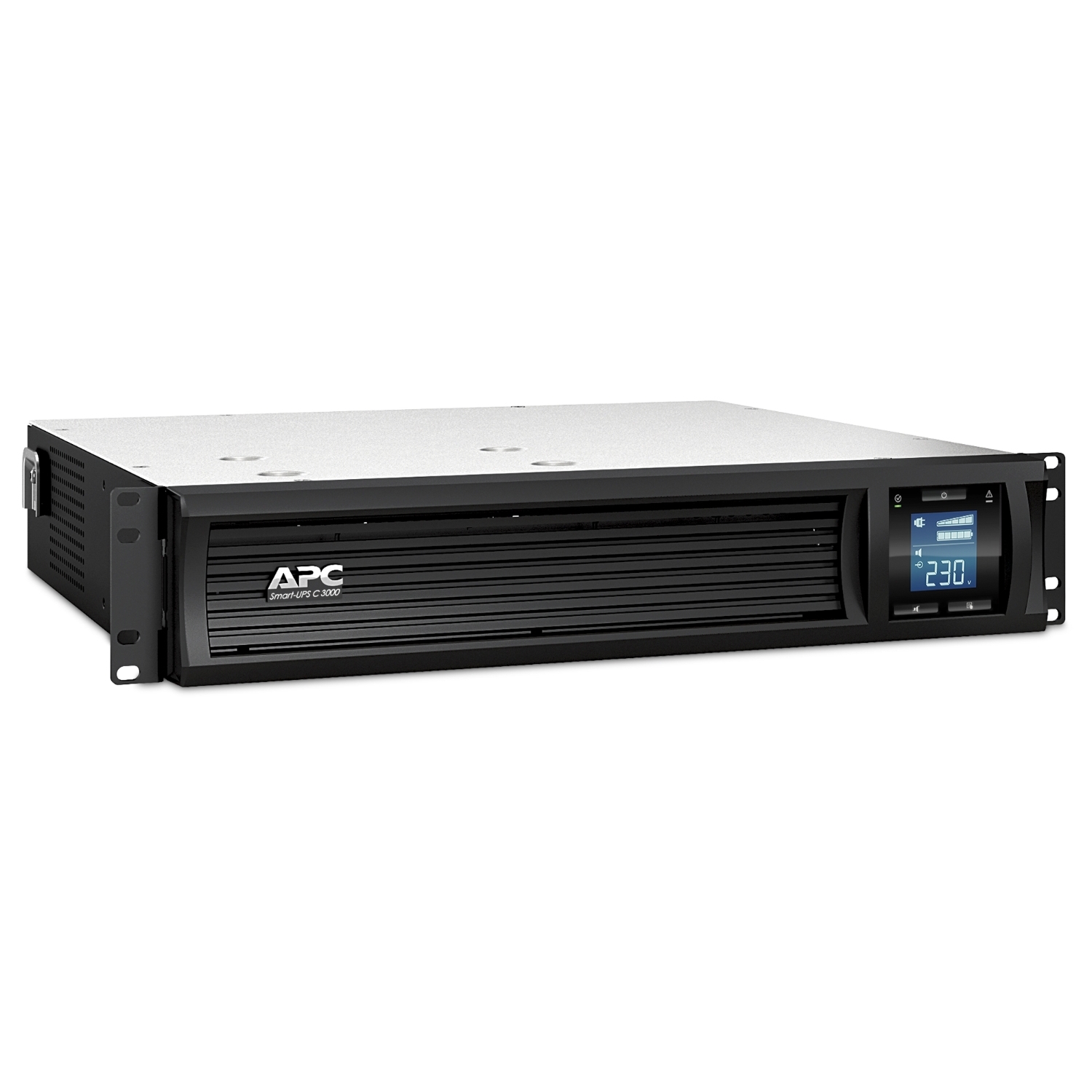

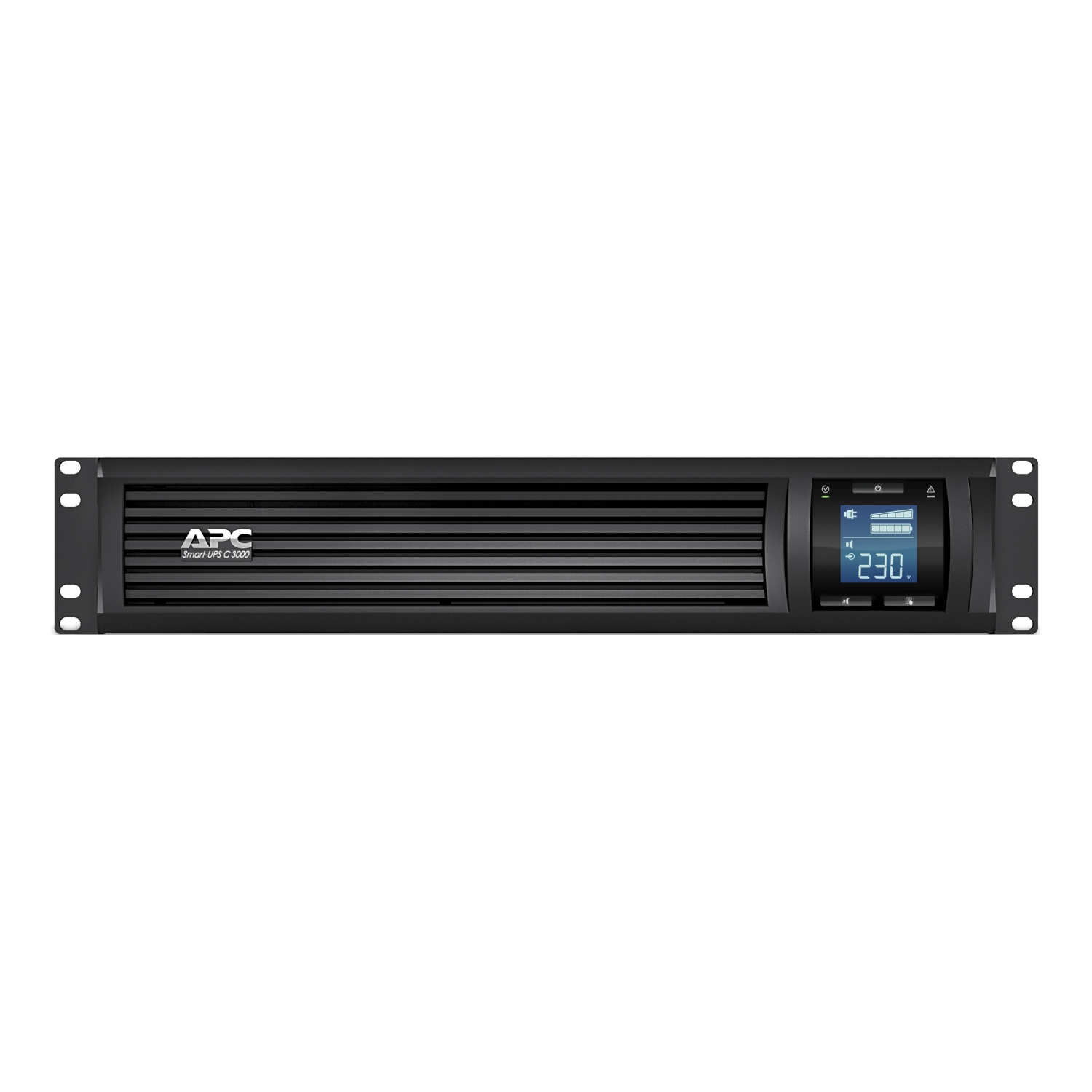

APC Smart-UPS C 3000 VA LCD montare în rack 230 V
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Options | |
| Potential free switch contact | No |
| Auto shut down function | No |
| Modular | No |
| SNMP | No |

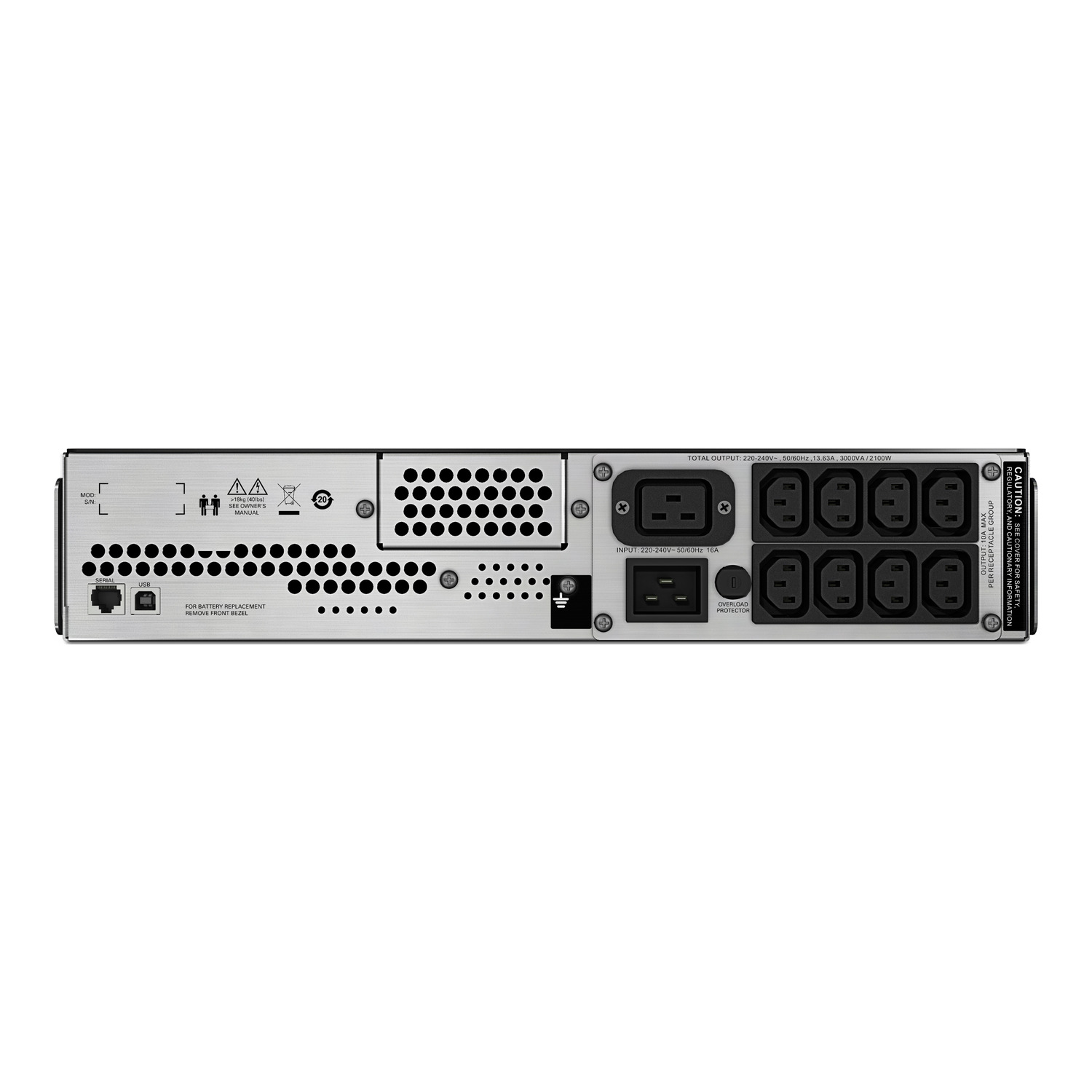

| Connection | |
| Number of output connections C19 | 0 |
| Number of output connections C13 | 9 |
| Number of output connections with protective contact CEE 7/3 (type F) | 0 |
| USB interface | Yes |
| Input connection | Other |
| Number of output connections fixed connection | 0 |
| Number of output connections French standard (Type E) | 0 |
| Electrical | |
| Input voltage | 230 V |
| Output power factor | 0.7 |
| Max. voltage distortion output (linear load) | 0.05 % |
| Output apparent power | 3000 VA |
| Number of phases primary | 1 |
| Number of phases secondary | 1 |
| Voltage type | AC |
| Output voltage | 230 V |
| Application | |
| Suitable for network-management | No |
| Performance | |
| Efficiency in eco-mode | 96 % |
| Overall efficiency | 92 % |
| Output effective power | 2100 W |
| Communication | |
| With communication interface RS-232 | Yes |
| Measurements | |
| Height | 89 mm |
| Width | 480 mm |
| Weight | 41 kg |
| Depth | 670 mm |
| Other | |
| Primary frequency | 50 Hz |
| Secondary frequency | 50 Hz |
| Bridging time full load | 4.31 min |
| USV- technology | Line-interactive |
| Model/type | |
| Construction type | Freestanding model |
| Package 1 | |
| volume | 149,352 dm3 |
| weight | 50,9 kg |
| length | 60 cm |
| width | 98 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304310112 |
Accesorii
APC Service Bypass Panel- 230V, 100A, MBB, Hardwire input, (3) 30A Hardwire Output
Cod: SBP16KRMI4U
APC
APC Service Bypass Panel- 230V, 32A, MBB, Hardwire input, (4) IEC-320 C19 Output
Cod: SBP6KRMI2U
APC
APC Service Bypass Panel- 230V, 100A, MBB, Hardwire input, (3) 30A Hardwire Output
Cod: SBP16KRMI4U
APC
APC Service Bypass Panel- 230V, 32A, MBB, Hardwire input, (4) IEC-320 C19 Output
Cod: SBP6KRMI2U
APC
