Descriere

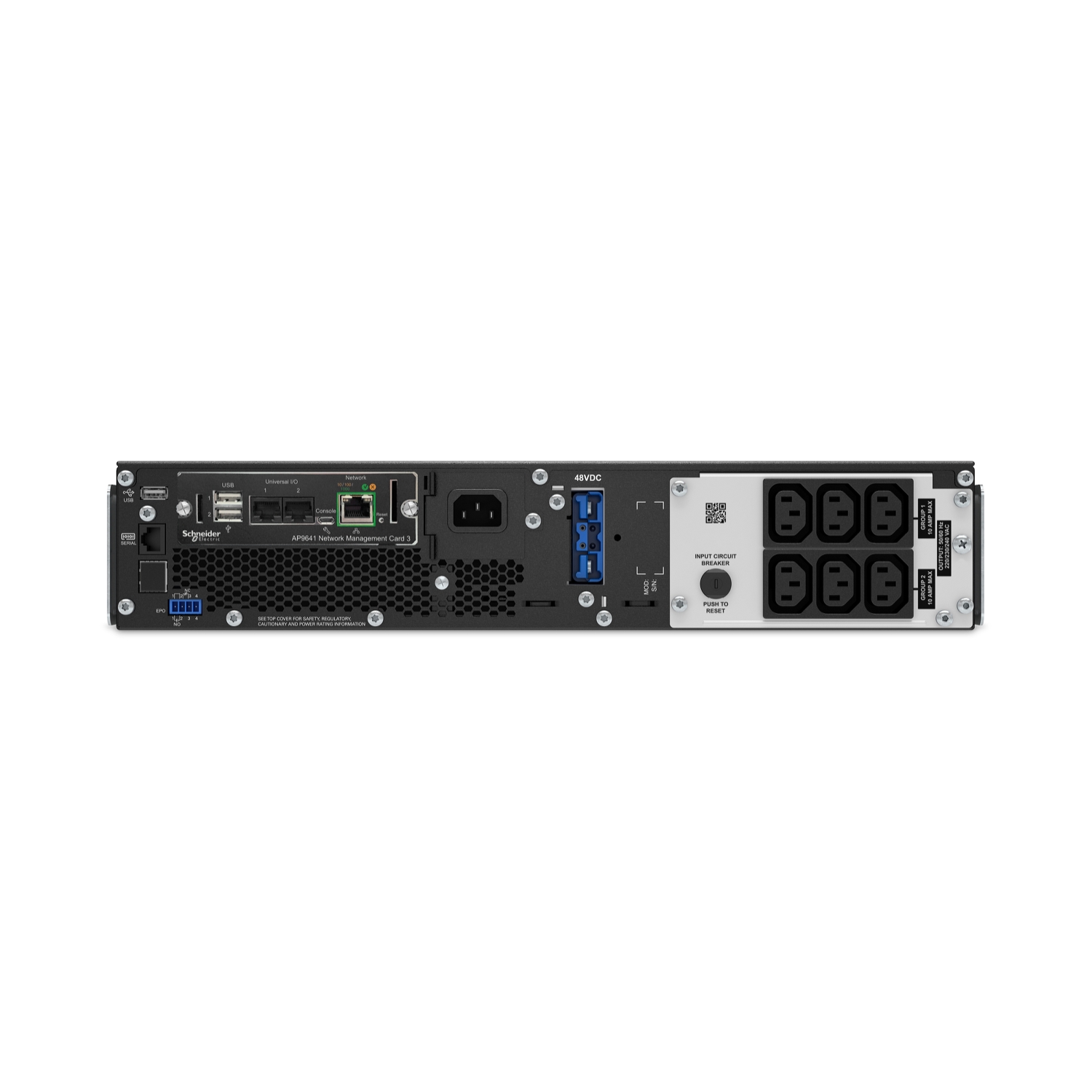

APC Smart-UPS On-Line, 1500VA/1500W, Rackmount 2U, 230V, 6x C13 IEC outlets, Network Card, Extended runtime, W/ rail kit
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Options | |
| Potential free switch contact | No |
| Auto shut down function | Yes |
| Modular | No |
| SNMP | Yes |
| Electrical | |
| Input voltage | 230 V |
| Output power factor | 1 |
| Max. voltage distortion output (linear load) | 5 % |
| Output apparent power | 1500 VA |
| Number of phases primary | 1 |
| Number of phases secondary | 1 |
| Voltage type | AC |
| Output voltage | 230 V |
| Connection | |
| Number of output connections C19 | 0 |
| Number of output connections C13 | 6 |
| Number of output connections with protective contact CEE 7/3 (type F) | 0 |
| USB interface | Yes |
| Input connection | C14 |
| Number of output connections fixed connection | 0 |
| Number of output connections French standard (Type E) | 0 |
| Application | |
| Suitable for network-management | Yes |
| Performance | |
| Efficiency in eco-mode | 96 % |
| Overall efficiency | 92 % |
| Output effective power | 1500 W |
| Communication | |
| With communication interface RS-232 | No |
| Measurements | |
| Height | 85 mm |
| Width | 432 mm |
| Weight | 21 kg |
| Depth | 505 mm |
| Other | |
| Primary frequency | 40 Hz |
| Secondary frequency | 50 Hz |
| Bridging time full load | 4.37 min |
| USV- technology | Online |
| Model/type | |
| Construction type | Freestanding model |
| Package 1 | |
| volume | 100584,75 cm3 |
| weight | 32,58 kg |
| length | 59,5 cm |
| width | 69 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304340294 |

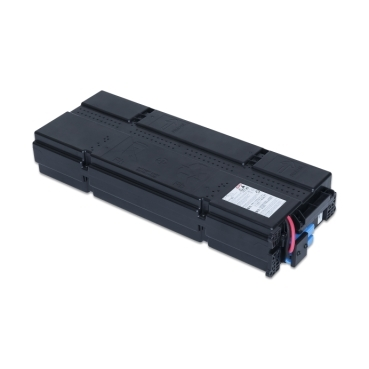

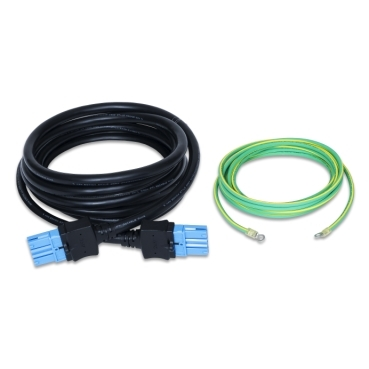

Accesorii
