Descriere

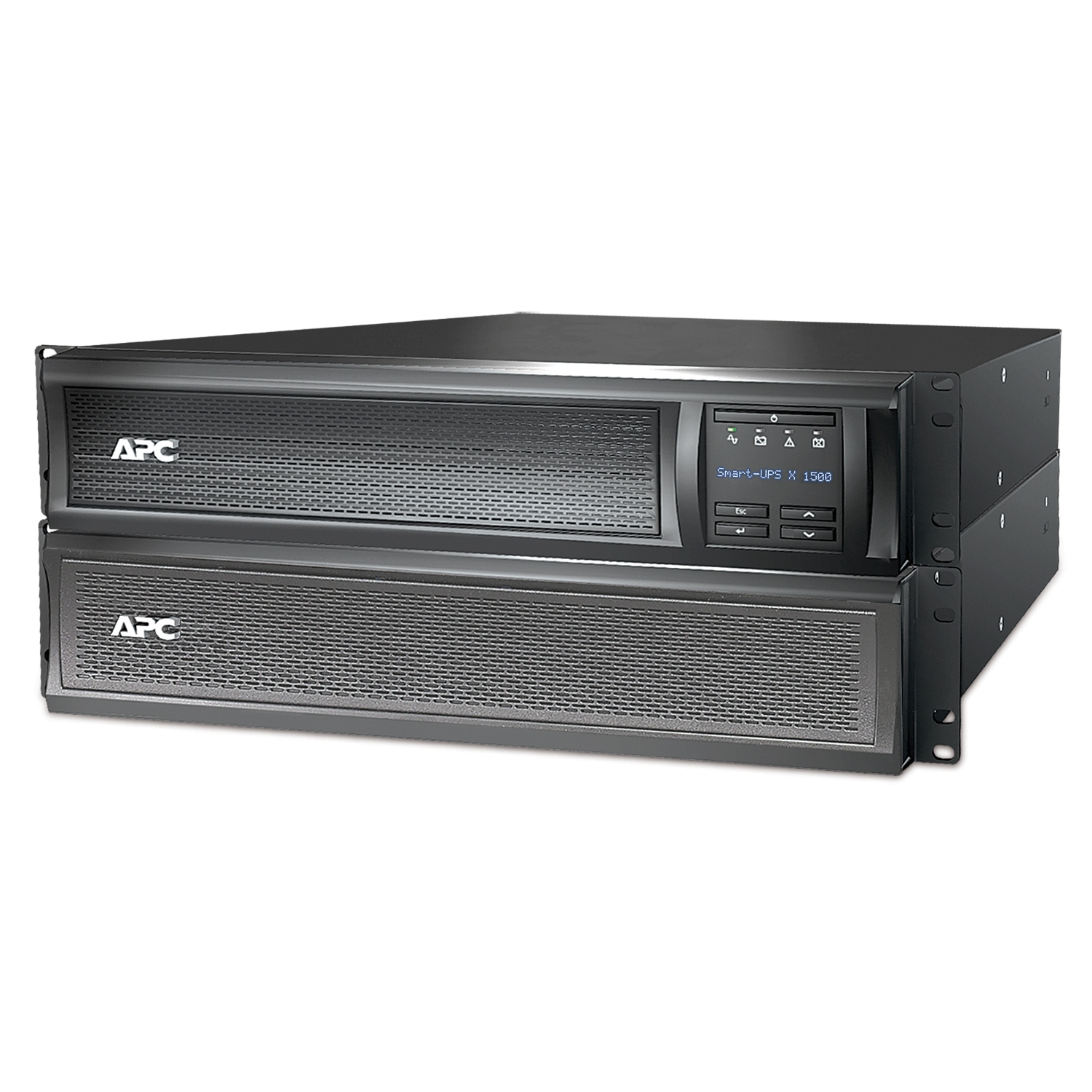

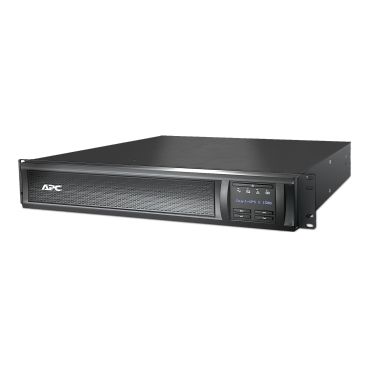

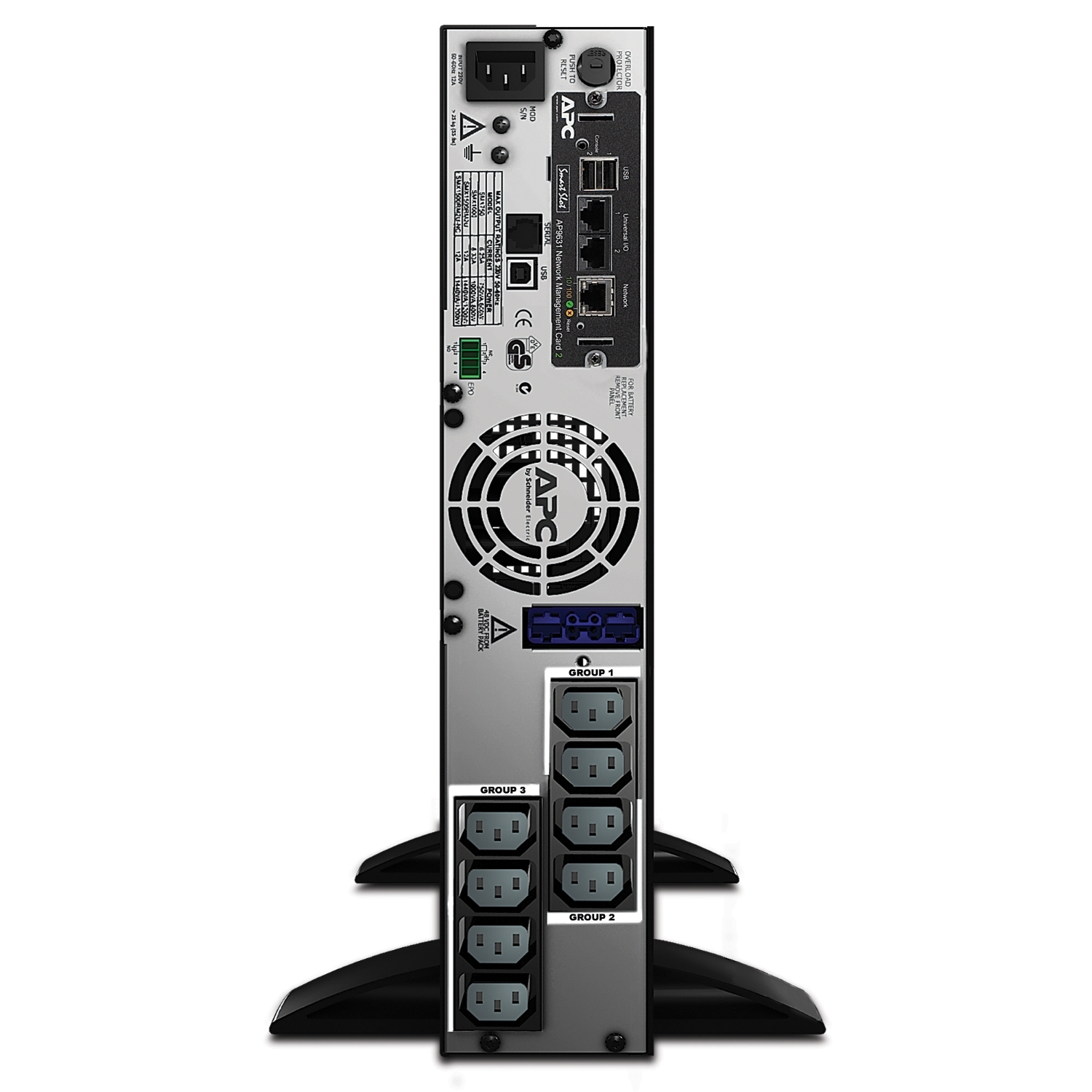

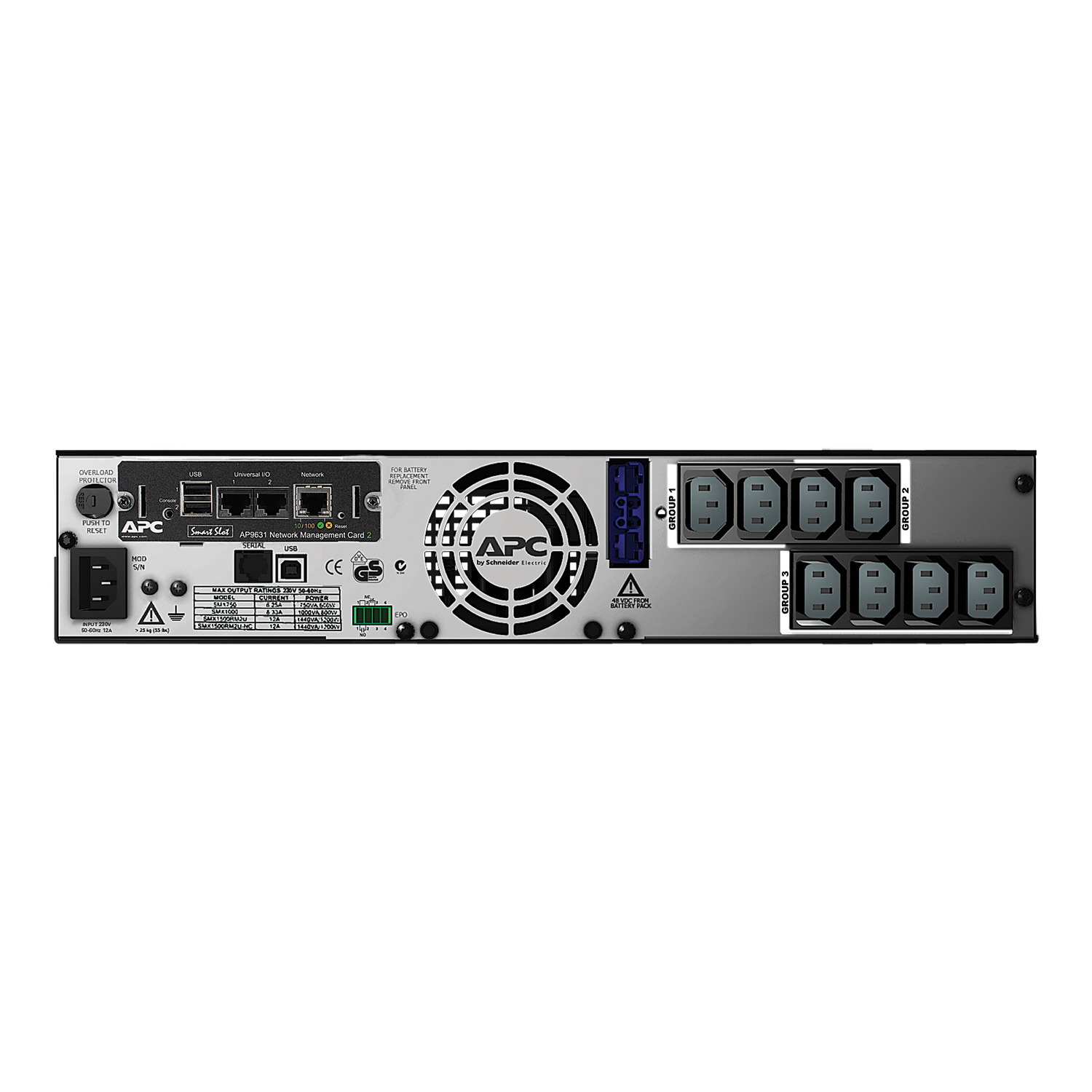

APC Smart-UPS X 1500 VA Rack/Tower LCD 230 V cu placă de reţea
Documente
Specificatii
| Options | |
| Potential free switch contact | No |
| Auto shut down function | No |
| Modular | No |
| SNMP | Yes |
| Electrical | |
| Input voltage | 230 V |
| Output power factor | 0.8 |
| Max. voltage distortion output (linear load) | 0.05 % |
| Output apparent power | 1500 VA |
| Number of phases primary | 1 |
| Number of phases secondary | 1 |
| Voltage type | AC |
| Output voltage | 230 V |
| Connection | |
| Number of output connections C19 | 0 |
| Number of output connections C13 | 8 |
| Number of output connections with protective contact CEE 7/3 (type F) | 0 |
| USB interface | Yes |
| Input connection | C14 |
| Number of output connections fixed connection | 0 |
| Number of output connections French standard (Type E) | 0 |
| Application | |
| Suitable for network-management | Yes |
| Performance | |
| Efficiency in eco-mode | 98 % |
| Overall efficiency | 94 % |
| Output effective power | 1200 W |
| Communication | |
| With communication interface RS-232 | No |
| Measurements | |
| Height | 89 mm |
| Width | 432 mm |
| Weight | 24.82 kg |
| Depth | 490 mm |
| Other | |
| Primary frequency | 50 Hz |
| Secondary frequency | 50 Hz |
| Bridging time full load | 5.45 min |
| USV- technology | Line-interactive |
| Model/type | |
| Construction type | 482.6 mm (19 inch) device |
| Package 1 | |
| volume | 89834,28 cm3 |
| weight | 30 kg |
| length | 62 cm |
| width | 58,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304281702 |
| Package 2 | |
| volume | 1620000 cm3 |
| weight | 514,88 kg |
| length | 120 cm |
| width | 100 cm |
| qmax | 16 |
| qmin | 16 |
| um | PF |
