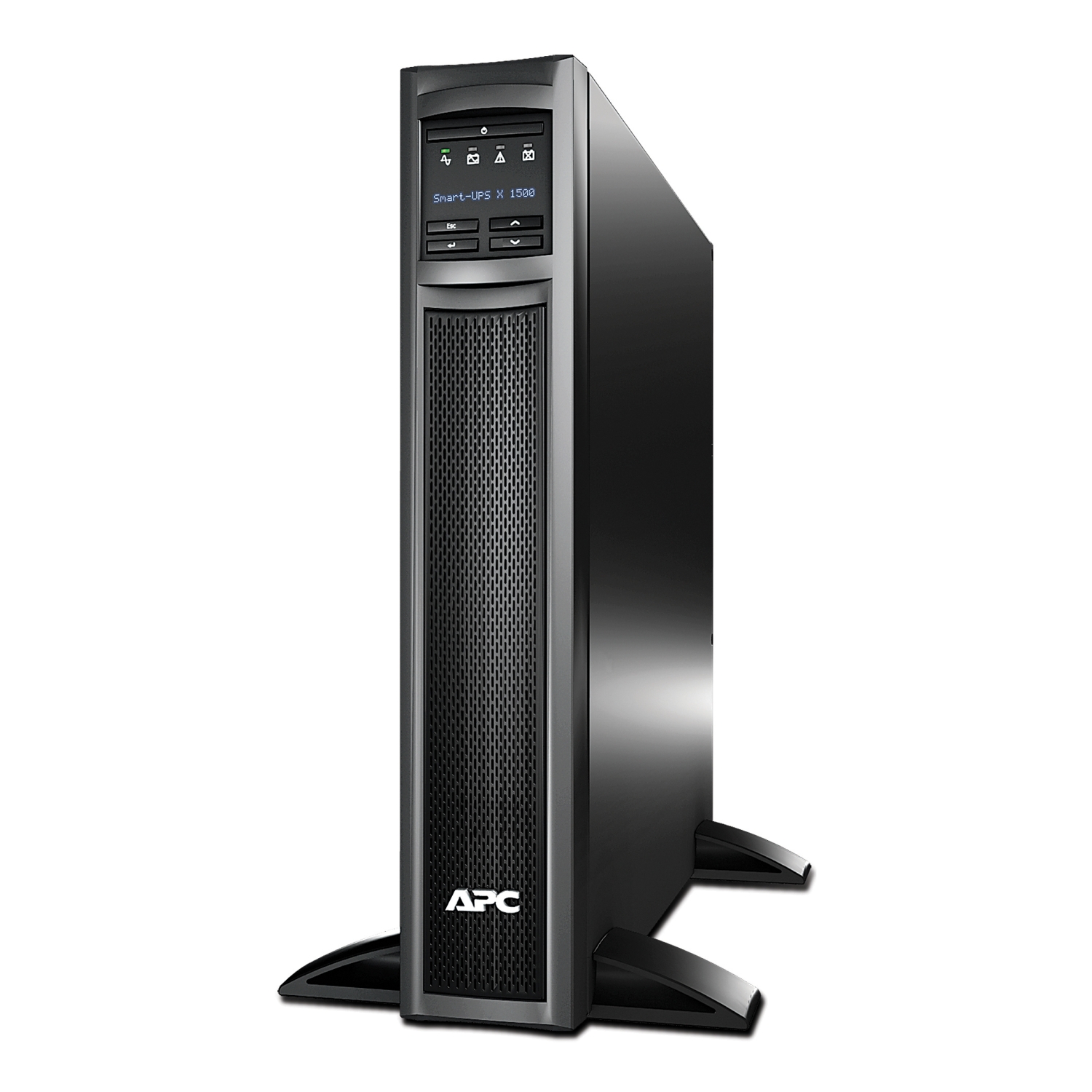

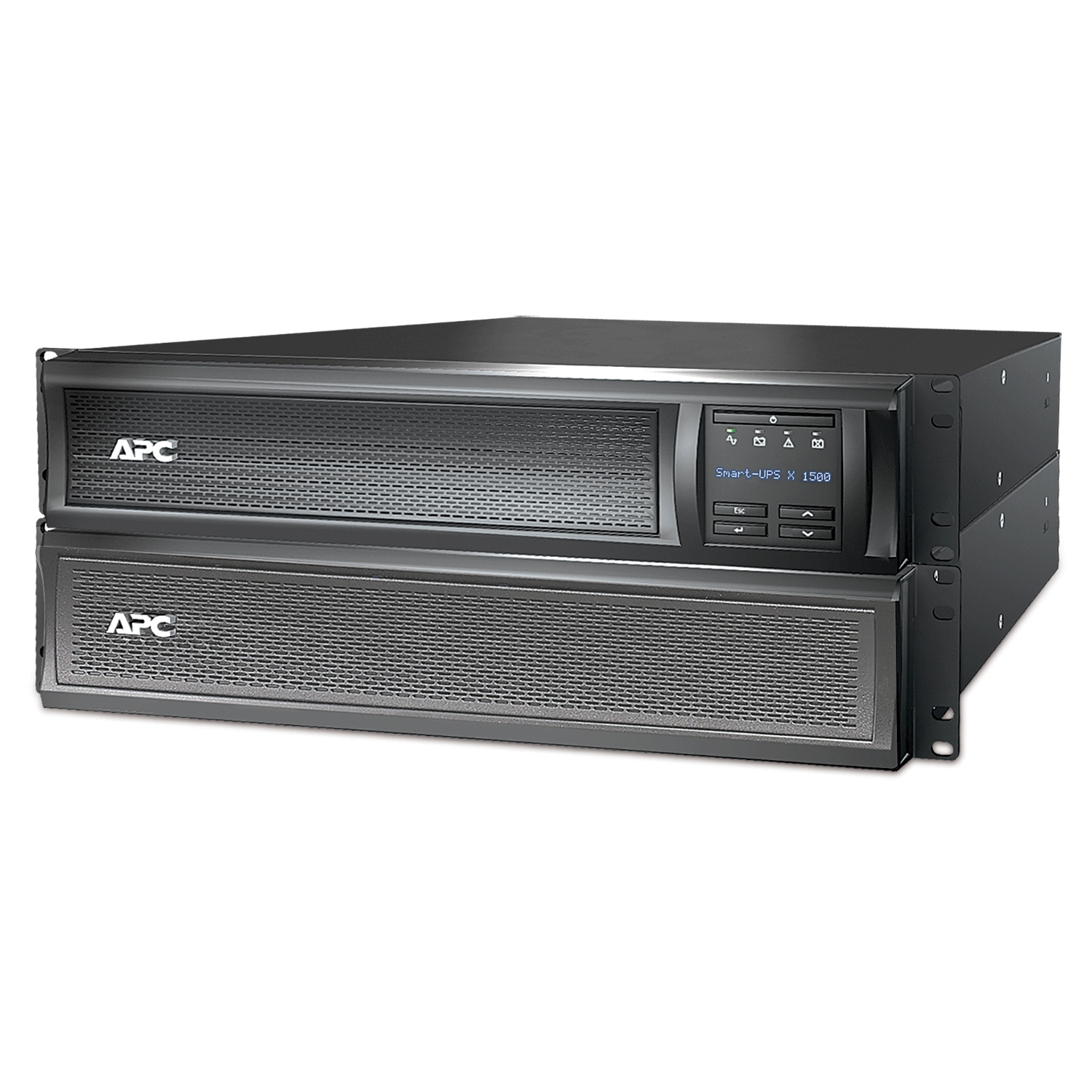

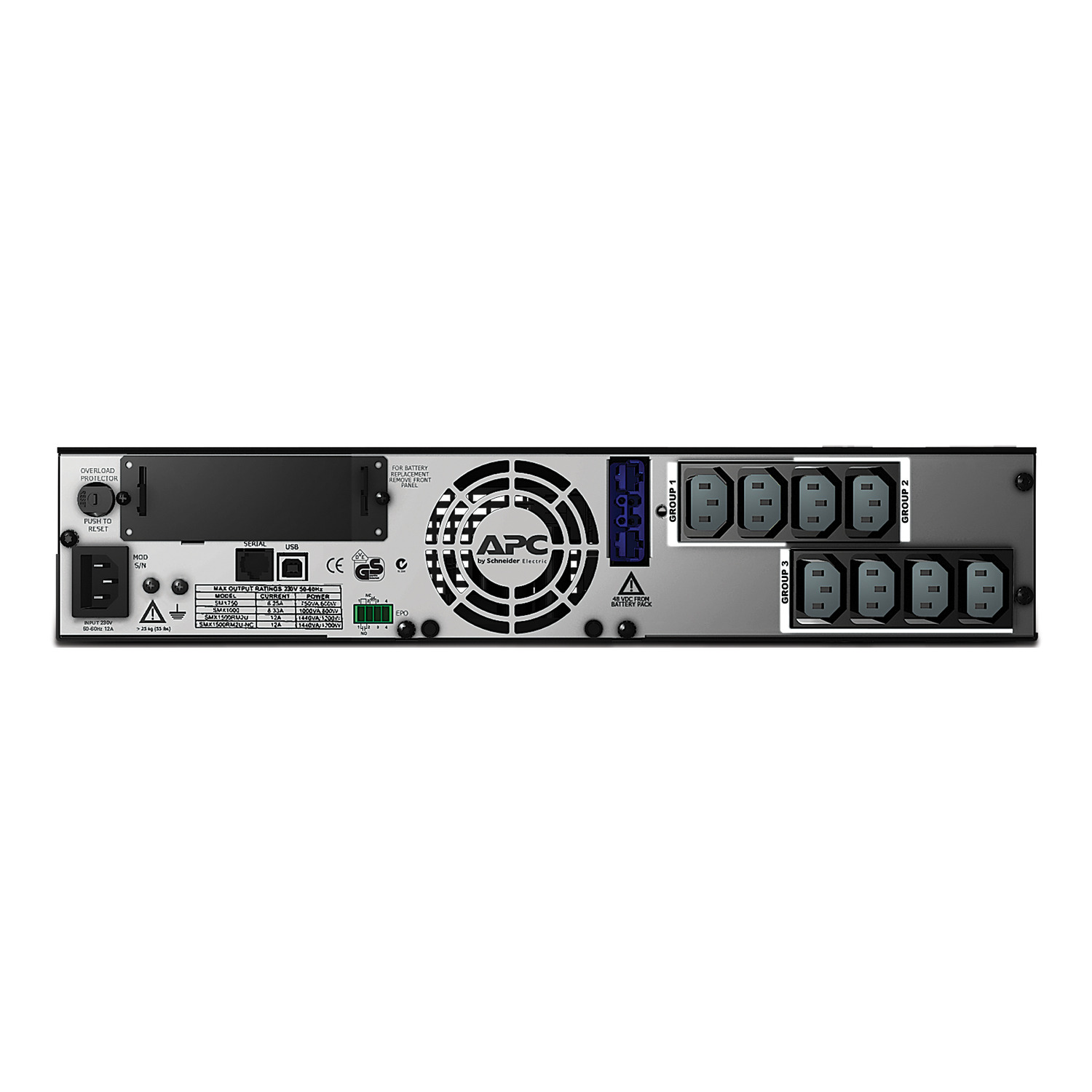

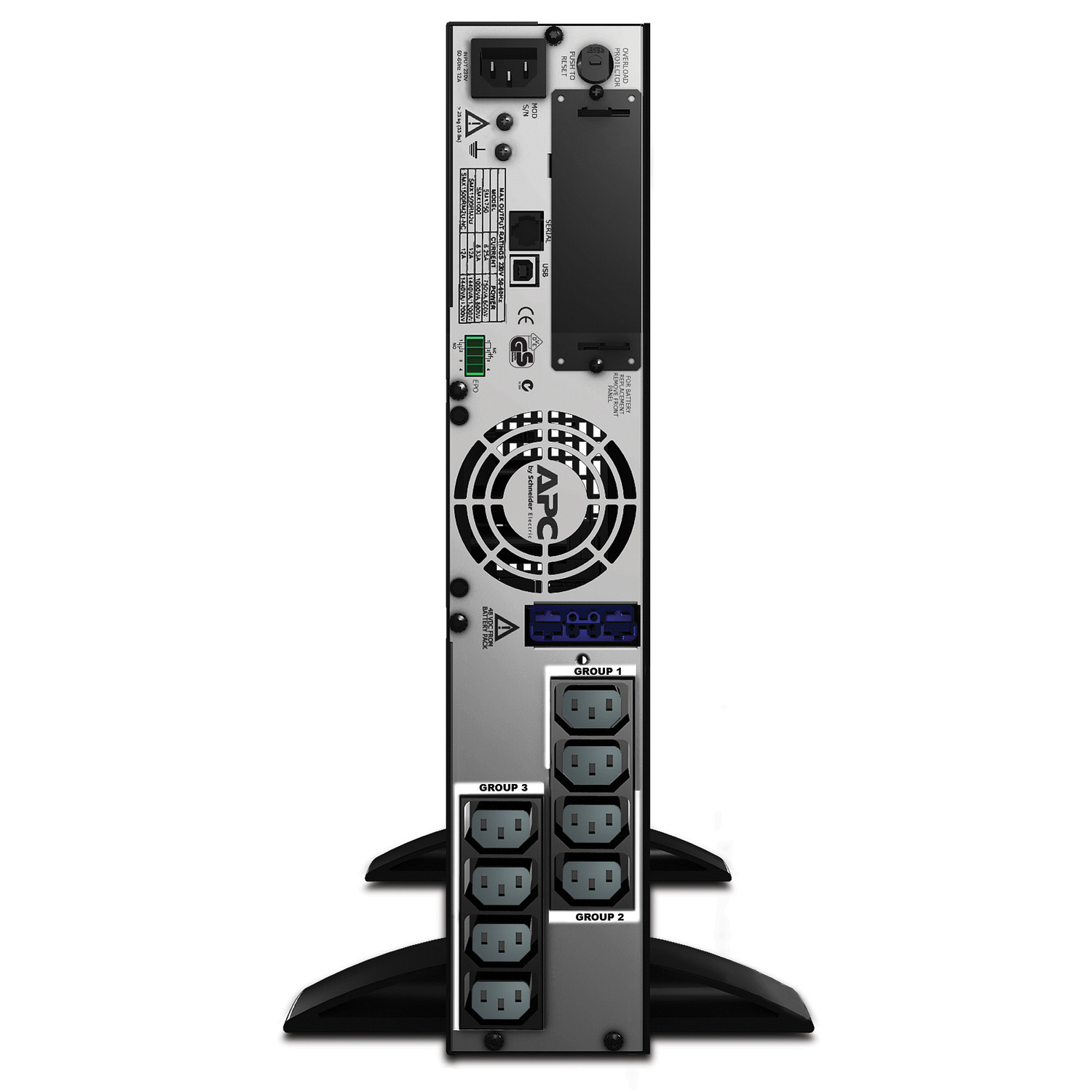

APC Smart-UPS X 1500VA Rack/Tower LCD 230V

Cod produs: SMX1500RMI2U

Autentificati-va pentru a vedea pretul.

Producator: APC

Set: 1 bucati

731304268598

Descriere

APC Smart-UPS X 1500 VA Rack/Tower LCD 230 V

Documente

logo-pdf APC Smart-UPS X 1500VA Rack/Tower LCD 230V

Link

Specificatii

Options
Potential free switch contact	No
Auto shut down function	No
Modular	No
SNMP	No
Connection
Number of output connections C19	0
Number of output connections C13	8
Number of output connections with protective contact CEE 7/3 (type F)	0
USB interface	Yes
Input connection	C14
Number of output connections fixed connection	0
Number of output connections French standard (Type E)	0
Electrical
Input voltage	230 V
Output power factor	0.8
Max. voltage distortion output (linear load)	0.05 %
Output apparent power	1500 VA
Number of phases primary	1
Number of phases secondary	1
Voltage type	AC
Output voltage	230 V
Application
Suitable for network-management	No
Performance
Efficiency in eco-mode	98 %
Overall efficiency	94 %
Output effective power	1200 W
Communication
With communication interface RS-232	No
Measurements
Height	89 mm
Width	432 mm
Weight	24.82 kg
Depth	490 mm
Other
Primary frequency	50 Hz
Secondary frequency	50 Hz
Bridging time full load	5.45 min
USV- technology	Line-interactive
Model/type
Construction type	482.6 mm (19 inch) device
Package 1
volume	89834,28 cm3
weight	30 kg
length	62 cm
width	58,9 cm
qmax	1
qmin	1
um	C62
gtin	731304268598
Package 2
volume	1596000 cm3
weight	524 kg
length	120 cm
width	100 cm
qmax	16
qmin	16
um	PF

Afiseaza mai multe specificatii

Accesorii

World Wide Emergency Power Off Nine Circuit System

Cod: EPW9 APC

APC 2-Post Mounting Kit for Smart-UPS and Symmetra

Cod: AP9625 APC

Power Cord Kit (6 ea), Locking, C13 TO C14 (90 Degree), 0.6m

Cod: AP8702R-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

Cod: AP8702S-WW APC

Power Cord Kit (6 ea), Locking, C13 TO C14, 0.6m, Red

Cod: AP8702S-WWX340 APC

Power Cord Kit (6 ea), Locking, C13 TO C14, 0.6m, Blue

Cod: AP8702S-WWX590 APC

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2m

Cod: AP8704R-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

Cod: AP8704S-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m, Red

Cod: AP8704S-WWX340 APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m, Blue

Cod: AP8704S-WWX590 APC

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.8m

Cod: AP8706R-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m

Cod: AP8706S-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m, Red

Cod: AP8706S-WWX340 APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m, Blue

Cod: AP8706S-WWX591 APC

Power Cord, C13 to C14, 2.5m

Cod: AP9870 APC

Power Cord, C19 to C14, 2.0m

Cod: AP9878 APC

Power Cord, C14 to CEE 7/7 Schuko, 0.6m

Cod: AP9880 APC

Power Cord, C14 to BS1363 (UK), 0.6m

Cod: AP9881 APC

NetShelter 2 Post Rack 45U #12-24 Threaded Holes Black

Cod: AR201 APC

APC 17" Rack LCD Console

Cod: AP5717 APC

APC 17" Rack LCD Console - French

Cod: AP5717F APC

APC 17" Rack LCD Console - Russian

Cod: AP5717R APC

APC 17" Rack LCD Console - United Kingdom

Cod: AP5717UK APC

APC 19" Rack LCD Console

Cod: AP5719 APC

17" Rack LCD Console with Integrated 8 Port Analog KVM Switch

Cod: AP5808 APC

17" Rack LCD Console with Integrated 16 Port Analog KVM Switch

Cod: AP5816 APC

MEASURE-UPS SWITCH KIT

Cod: AP9513 APC

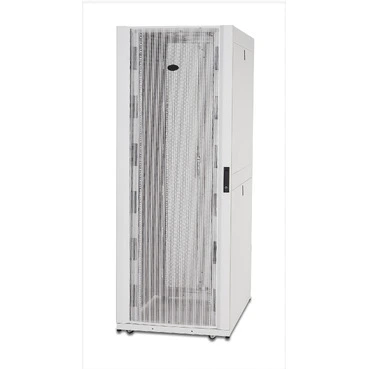

NetShelter SX 42U 800mm Wide x 1200mm Deep Enclosure with Sides White

Cod: AR3380W APC

NetShelter SX 42U 1070mm Deep Split Side Panels Black Qty 2

Cod: AR7301 APC

NetShelter SX 42U 1200mm Deep Split Side Panels Qty. (2)

Cod: AR7303 APC

NetShelter SX 42U 1070 Split Feed Through Side Panels Black Qty 2

Cod: AR7305A APC

NetShelter SX 42U 1200 Split Feed Through Side Panels Black Qty 2

Cod: AR7313 APC

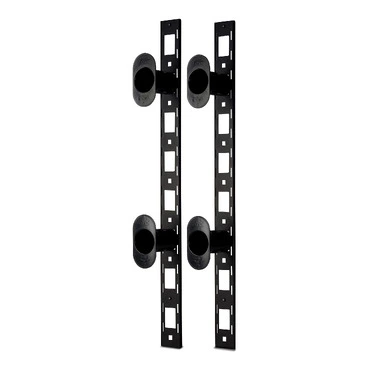

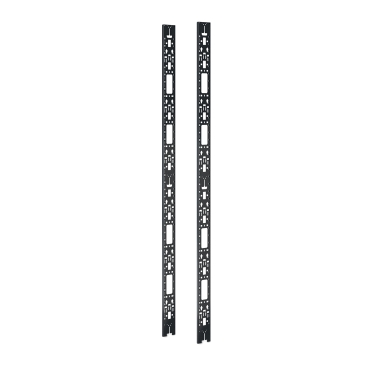

Vertical Cable Organizer, NetShelter SX, 42U (Qty. 2)

Cod: AR7502 APC

Vertical Cable Organizer, Center Rear Mount, NetShelter SX

Cod: AR7505 APC

Narrow Vertical Cable Organizer, NetShelter SX, 42U

Cod: AR7511 APC

Toolless Cable Management Rings (Qty 10)

Cod: AR7540 APC

Toolless Cable Management Rings (Qty 100)

Cod: AR7540100 APC

Vertical Cable Manager for NetShelter SX 750mm Wide 42U (Qty 2)

Cod: AR7580A APC

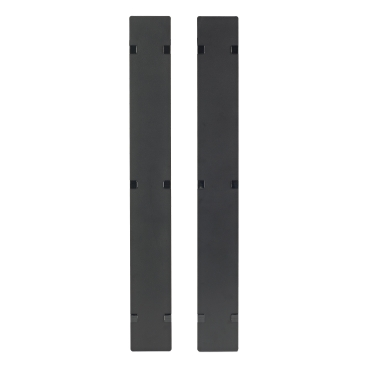

Hinged Covers for NetShelter SX 750mm Wide 42U Vertical Cable Manager (Qty 2)

Cod: AR7581A APC

Cable Retainer for NetShelter SX 750mm Wide Vertical Cable Managers (Qty 6)

Cod: AR7582A APC

NetShelter SX 42U/48U Baying Trim Kit Black

Cod: AR7600 APC

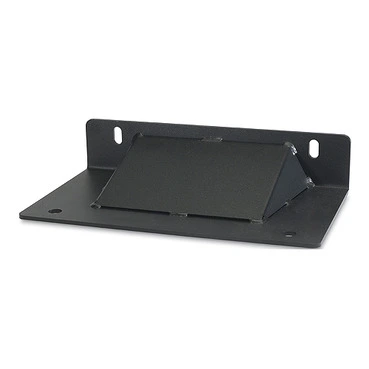

NetShelter SX 600mm/750mm Stabilizer Plate

Cod: AR7700 APC

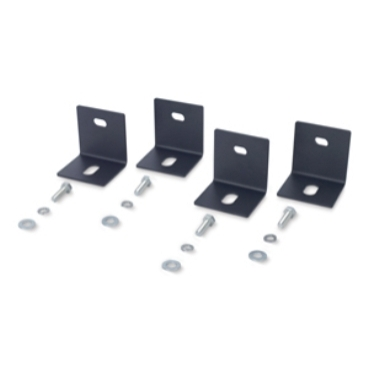

NetShelter SX Bolt-Down Kit

Cod: AR7701 APC

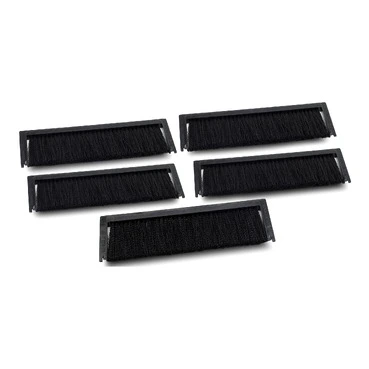

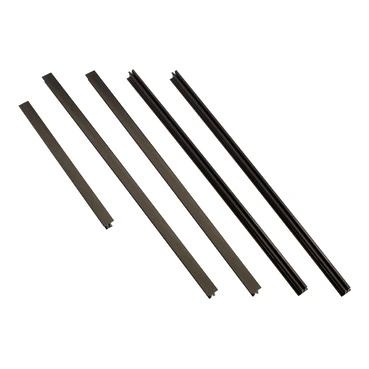

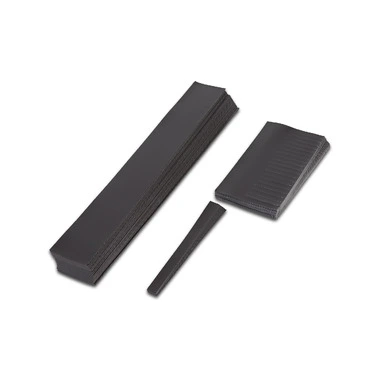

Mounting Rail Brush Strips, NetShelter SX, 750mm Wide

Cod: AR7706 APC

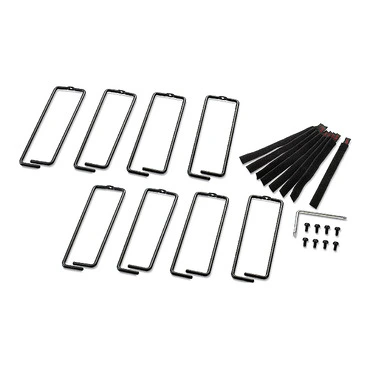

Cable Management Rings, 8 Inch Deep, NetShelter SX, 750mm Wide (Qty. 8)

Cod: AR7707 APC

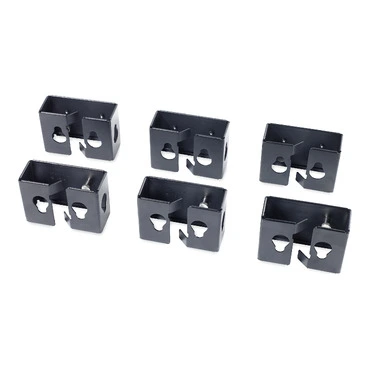

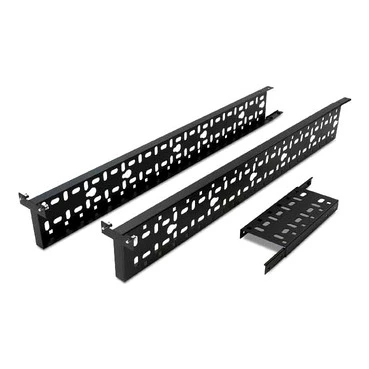

Cable Containment Brackets with PDU Mounting Capability for NetShelter SX

Cod: AR7710 APC

NetShelter Zero U Accessory Mounting Bracket

Cod: AR7711 APC

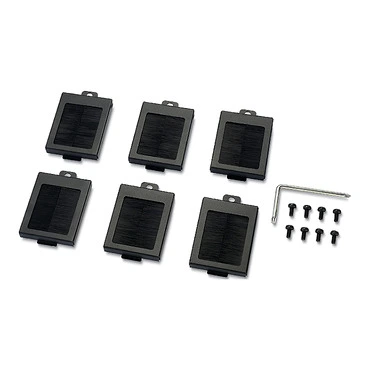

NetShelter SX Roof Brush Strip

Cod: AR7714 APC

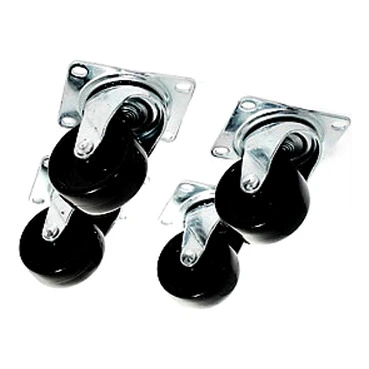

NetShelter ValueLine Swivel Caster Kit (Qty = 4)

Cod: AR7719 APC

NetShelter SX External Air Sealing Kit

Cod: AR7731 APC

10-32 Hardware Kit

Cod: AR8005 APC

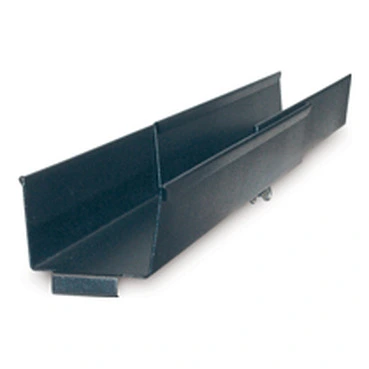

Horizontal Cable Organizer Side Channel 18 to 30 inch adjustment

Cod: AR8008BLK APC

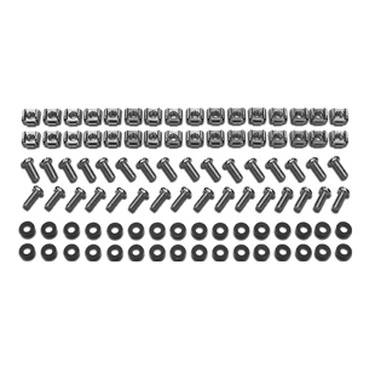

M6 Hardware for 600mm Wide Enclosures

Cod: AR8100 APC

Blanking Panel Kit 19" Black (1U, 2U, 4U, 8U)

Cod: AR8101BLK APC

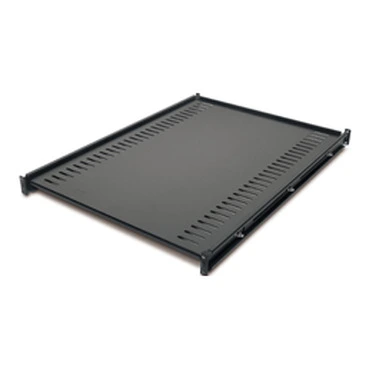

Fixed Shelf - 50lbs/23kg, Black

Cod: AR8105BLK APC

1U Blanking Panel Kit 19" Black

Cod: AR8108BLK APC

Cable Management Rings (Qty. 5 Large and 5 Small Rings)

Cod: AR8113A APC

Fixed Shelf - 250lbs/114kg, Black

Cod: AR8122BLK APC

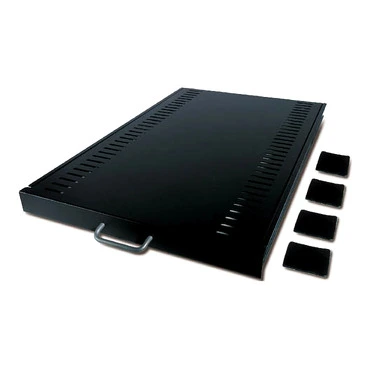

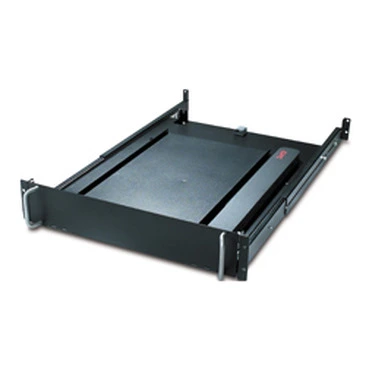

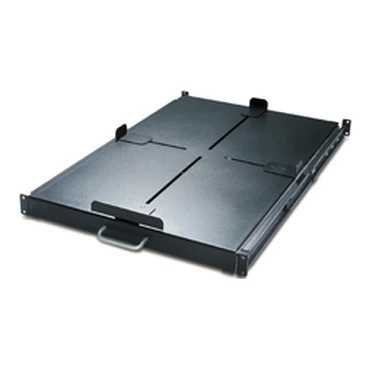

Sliding Shelf - 100lbs/45kg Black

Cod: AR8123BLK APC

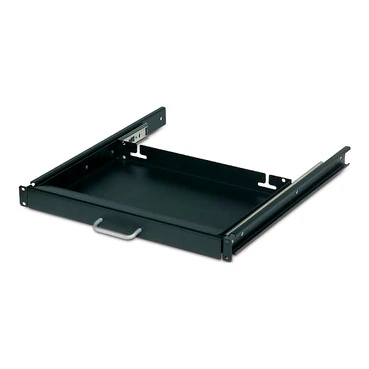

17" Keyboard Drawer Black

Cod: AR8126ABLK APC

19" Rotating Keyboard Drawer Black

Cod: AR8127BLK APC

Sliding Shelf - 200lbs/91kg Black

Cod: AR8128BLK APC

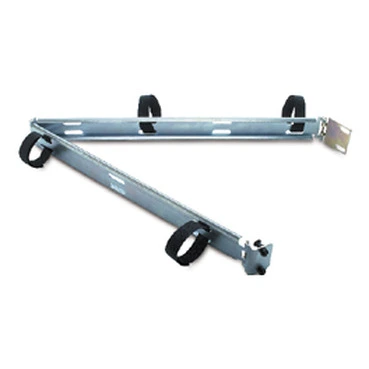

Cable Management Arm

Cod: AR8129 APC

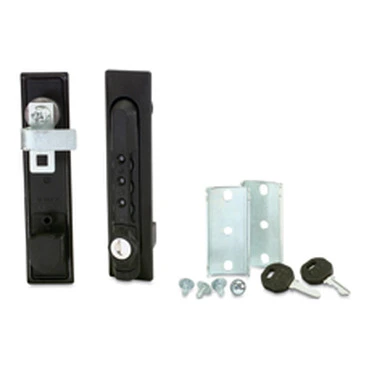

Combination Lock Handles (Qty 2)

Cod: AR8132A APC

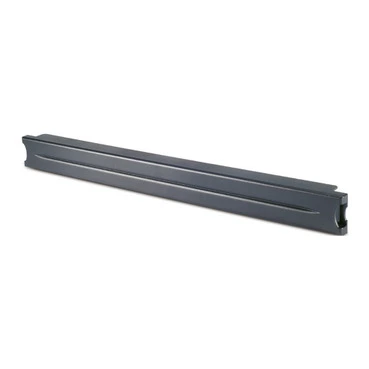

APC 1U 19" Black Modular Toolless Blanking Panel - Qty 10

Cod: AR8136BLK APC

APC 1U 19" Black Modular Toolless Blanking Panel - Qty 200

Cod: AR8136BLK200 APC

Bracket Kit, Cable Ladder Elevation

Cod: AR8186 APC

Horizontal Cable Organizer 1U

Cod: AR8425A APC

Horizontal Cable Organizer 2U

Cod: AR8426A APC

Horizontal Cable Organizer 2U w/pass through holes

Cod: AR8428 APC

Horizontal Cable Organizer 1U w/brush strip

Cod: AR8429 APC

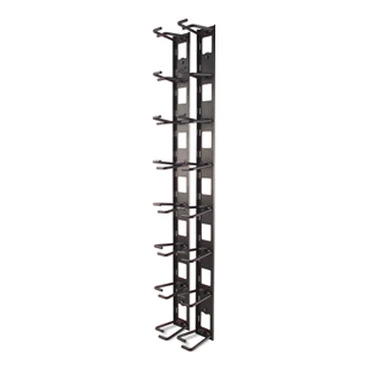

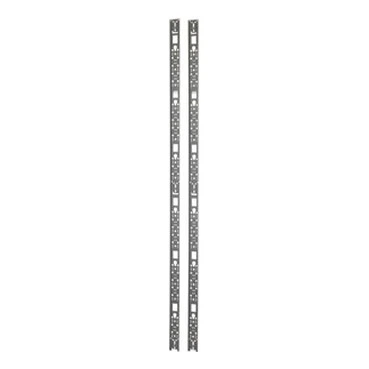

Vertical Cable Organizer, 8 Cable Rings, Zero U

Cod: AR8442 APC

Vertical Fiber Organizer

Cod: AR8443A APC

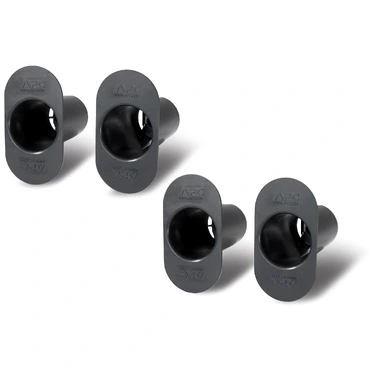

Spools for Vertical Fiber Organizer Qty. (4)

Cod: AR8444 APC

Cable Trough, 800mm

Cod: AR8571X417 APC

Horizontal Cable Manager, 2U x 4" Deep, Single-Sided with Cover

Cod: AR8600A APC

Horizontal Cable Manager, 1U x 4" Deep, Single-Sided with Cover

Cod: AR8602A APC

2U Horizontal Cable Manager, 6" Fingers Top, Bottom Tie Down

Cod: AR8603A APC

3U Horizontal Cable Manager, 6" Fingers top and bottom

Cod: AR8605 APC

2U Horizontal Cable Manager, 6" Fingers top and bottom

Cod: AR8606 APC

1U Horizontal Cable Manager, 6" deep, Single-Sided

Cod: AR8612 APC

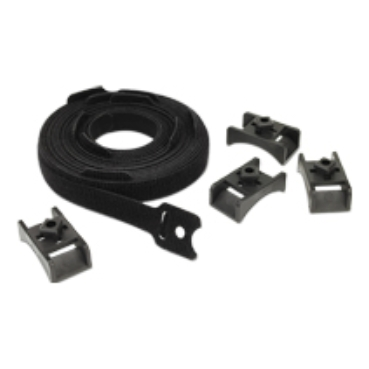

Toolless Hook and Loop Cable Managers (Qty 10)

Cod: AR8621 APC

Cable Fall for NetShelter Racks and Enclosures (Qty 2)

Cod: AR8654 APC

APC KVM 2G, LCD Rear Mounting Kit

Cod: KVM-LCDMOUNT APC

APC KVM 2G, Analog, 1 Local User, 8 Ports

Cod: KVM0108A APC

APC KVM 2G, Analog, 1 Local User, 16 ports

Cod: KVM0116A APC

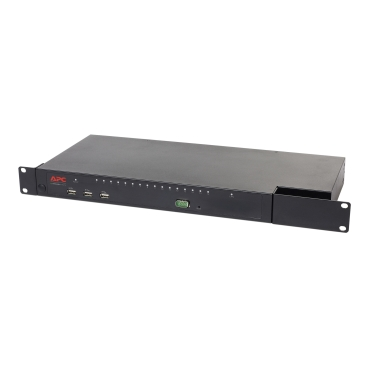

APC KVM 2G, Digital/IP, 1 Remote/1 Local User, 16 Ports with Virtual Media - FIPS 140-2

Cod: KVM1116R APC

NetBotz Rack Monitor 750

Cod: NBRK0750 APC

APC Replacement Battery Cartridge #115

Cod: APCRBC115 APC

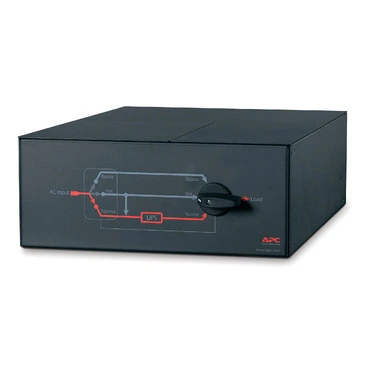

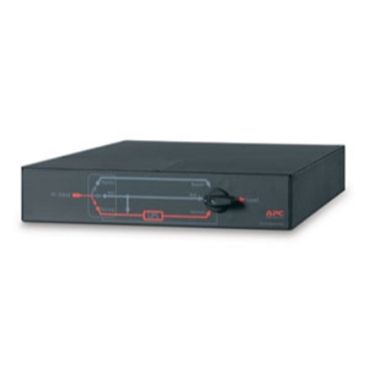

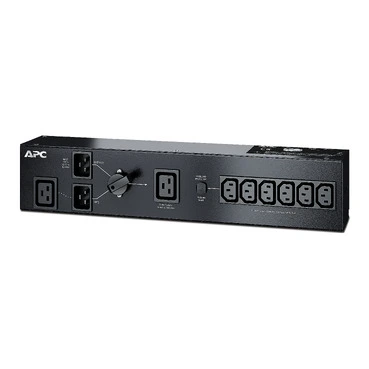

APC SERVICE BYPASS PANEL 230V 10A BBM IEC C14 input, (6) IEC C13 output

Cod: SBP1500RMI APC

Recomandari

1 Yr Advantage EAA Prevent Service Plan for (1) 1P UPS up to 10kVA

Cod: WADV1PEAA APC

Service Pack 1 Year Warranty Extension (for new product purchases)

Cod: WBEXTWAR1YR-SP-03 APC

Service Pack 3 Year Warranty Extension (for new product purchases)

Cod: WBEXTWAR3YR-SP-03 APC

1 Year Extended Warranty (Renewal or High Volume)

Cod: WEXTWAR1YR-SP-03 APC

3 Year Extended Warranty (High Volume)

Cod: WEXTWAR3YR-SP-03 APC

Altele

APC Smart-UPS X-Series 48V External Battery Pack Rack/Tower

Cod: SMX48RMBP2U APC

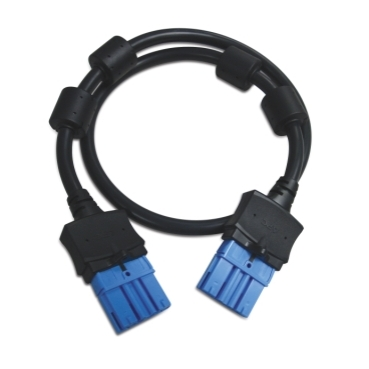

APC Smart-UPS X 48V Battery Extension Cable

Cod: SMX039-2 APC

UPS Network Management Card 3

Cod: AP9640 APC

UPS Network Management Card 3 with Environmental Monitoring

Cod: AP9641 APC

UPS NETWORK MANAGEMENT CARD 3 W/ ENVIRONMENTAL MONITORING AND MODBUS

Cod: AP9643 APC

Dry Contact I/O SmartSlot Card

Cod: AP9613 APC

Legacy Communications SmartSlot Card

Cod: AP9620 APC

APC Dry Contact I/O Accessory

Cod: AP9810 APC

Rack Mounting Bracket for NetBotz Camera Pod 160

Cod: NBAC0302 APC

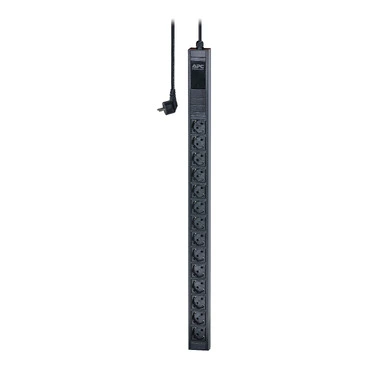

RACK PDU, BASIC, HALF HEIGHT, 100-240V/20A, 220-240V/16A, (14) C13

Cod: AP6003A APC

Rack PDU, Basic, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13

Cod: AP6015A APC

Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13

Cod: AP6020A APC

Rack PDU, Basic, 0U/1U, 220-240V, 32A, (4) C19, EMEA/ASIA

Cod: AP6032A APC

Rack PDU, Basic, 0U/1U, 220-240V, 63A, (3) C19

Cod: AP6038A APC

Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19

Cod: AP6120A APC

IN-LINE CURRENT METER, 16A, 230V, IEC309-16A, 2P+G

Cod: AP7152B APC

In-Line Current Meter, 32A, 230V, IEC309-32A, 2P+G

Cod: AP7155B APC

IN-LINE CURRENT METER, 32A, 230V, IEC309-32A 3-PH, 3P+N+G

Cod: AP7175B APC

Rack PDU, Basic, 1U, 22KW, 400V, (6) C19

Cod: AP7526 APC

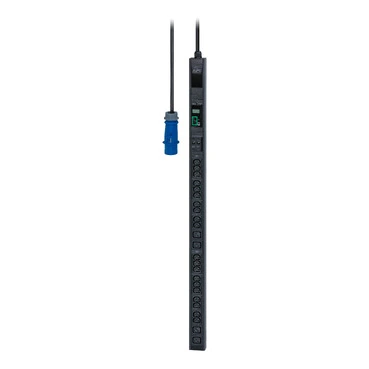

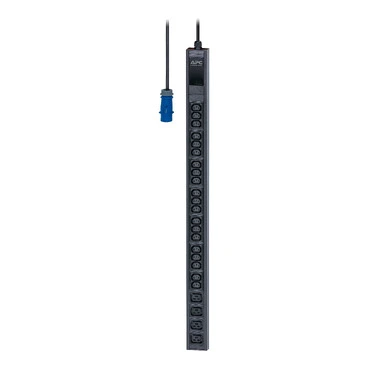

Rack PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19, IEC309

Cod: AP7551 APC

Rack PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19, IEC C20

Cod: AP7552 APC

Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19

Cod: AP7553 APC

Rack PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19, IEC309, 10 ft Cord

Cod: AP7554 APC

Rack PDU, Basic, Zero U, 22kW, 230V, (6) C19 & (3) C13, High Temp

Cod: AP7555A APC

Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19

Cod: AP7557 APC

Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC C19

Cod: AP7585 APC

Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32

Cod: AP7586 APC

RACK PDU, METERED, 1U, 12A/208V, 10A/230V, (8) C13

Cod: AP7820B APC

RACK PDU, METERED, 1U, 16A, 208/230V, (8) C13

Cod: AP7821B APC

RACK PDU, METERED, 2U, 32A, 230V, (12) C13 & (4) C19

Cod: AP7822B APC

Rack PDU, Metered, Zero U, 10A, 230V, (16) C13

Cod: AP7850B APC

RACK PDU, SWITCHED, 1U, 12A/208V, 10A/230V, (8)C13

Cod: AP7920B APC

RACK PDU, SWITCHED, 1U, 16A, 208/230V, (8)C13

Cod: AP7921B APC

RACK PDU, SWITCHED, 2U, 32A, 230V, (16)C13

Cod: AP7922B APC

RACK PDU, SWITCHED, ZERO U, 10A, 230V, (16) C13

Cod: AP7950B APC

Rack PDU 2G, Metered-by-Outlet, ZeroU, 32A, 230V, (21) C13 & (3) C19

Cod: AP8453 APC

Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 230V, (21) C13 & (3) C19

Cod: AP8459EU3 APC

Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 100-240V, (21) C13 & (3) C19

Cod: AP8459WW APC

Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Cod: AP8481 APC

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19

Cod: AP8653 APC

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 16A, 100-240V, (21) C13 & (3) C19

Cod: AP8659 APC

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 16A, 230V, (21) C13 & (3) C19

Cod: AP8659EU3 APC

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Cod: AP8681 APC

Rack PDU 2G, Metered, ZeroU, 32A, 230V, (36) C13 & (6) C19

Cod: AP8853 APC

Rack PDU 2G, Metered, ZeroU,16A, 100-240V, (18) C13 & (2) C19

Cod: AP8858 APC

Rack PDU 2G, Metered, ZeroU, 16A, 230V, (18) C13 & (2) C19, IEC309 Cord

Cod: AP8858EU3 APC

Rack PDU 2G, Metered, ZeroU, 11kW, 230V, (36) C13 & (6) C19

Cod: AP8881 APC

Rack PDU 2G, Metered, ZeroU, 22.0kW(32A), 230V, (30) C13 & (12) C19

Cod: AP8886 APC

Rack PDU 2G, Metered, ZeroU, 22.0kW(32A), 230V, (30) C13 & (12) C19, 4.0M Cord

Cod: AP8886X811 APC

Rack PDU 2G, Switched, ZeroU, 16A, 100-240V, (7) C13 & (1) C19

Cod: AP8958 APC

Rack PDU 2G, Switched, ZeroU, 16A, 230V, (7) C13 & (1) C19, IEC309 Cord

Cod: AP8958EU3 APC

Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

Cod: AP9559 APC

Rack PDU, Basic, 1U, 16A, 208/230V, (12)C13

Cod: AP9565 APC

Rack PDU,Basic,Zero U,10A,230V, (15)C13

Cod: AP9568 APC

Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13

Cod: AP9572 APC

APC Rack PDU 9000 Switched, ZeroU, 32A, 230V, (21) C13 & (3) C19

Cod: APDU9953 APC

APC Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord

Cod: APDU9959EU3 APC

APC NetShelter Rack PDU 9000 Switched, ZeroU, 16A, 100-240V, (21) C13 & (3) C19, Japan

Cod: APDU9959J APC

APC Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13 & (3) C19, L620 Cord

Cod: APDU9959NA3 APC

APC Rack PDU 9000 Switched, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Cod: APDU9981EU3 APC

APC Rack PDU 9000 Switched, ZeroU, 11.5kW, 208V, (21) C13 & (3) C19

Cod: APDU9981NA3 APC

Easy PDU Basic 1U 16A 230V (8)C13

Cod: EPDU1016B APC

Easy PDU Metered 1U 16A 230V (8)C13

Cod: EPDU1016M APC

Easy PDU Switched 1U 16A 230V (8)C13

Cod: EPDU1016S APC

Easy PDU Basic ZeroU 16A 230V (20)C13 (4)C19 IEC309

Cod: EPDU1116B APC

Easy PDU Basic ZeroU 16A 230V (14) SCHUKO

Cod: EPDU1116B-SCH APC

Easy PDU Metered ZeroU 16A 230V (18)C13 (3)C19 IEC309

Cod: EPDU1116M APC

Easy PDU Switched ZeroU 16A 230V (20)C13 (4)C19 IEC309

Cod: EPDU1116S APC

Easy PDU Basic Zero U 32A 230V (20)C13 (4)C19 IEC309

Cod: EPDU1132B APC

Easy PDU Basic ZeroU 32A 230V(21) SCHUKO IEC309

Cod: EPDU1132B-SCH APC

Easy PDU Metered Zero U 32A 230V (20)C13 (4)C19 IEC309

Cod: EPDU1132M APC

Easy PDU Switched Zero U 32A 230V(20)C13 (4)C19 IEC309

Cod: EPDU1132S APC

Easy PDU Basic Zero U 11 kW 230V (36) C13 (6) C19 IEC309

Cod: EPDU1216B APC

Easy PDU Metered Zero U 11 kW 230V (21) C13 (3) C19 IEC309

Cod: EPDU1216M APC

Easy PDU Basic Zero U 22 kW 230V (30) C13 (12) C19 IEC309

Cod: EPDU1232B APC

Easy PDU Metered Zero U 22 kW 230V (18) C13 (6) C19 IEC309

Cod: EPDU1232M APC

APC Temperature Sensor

Cod: AP9335T APC

APC Temperature & Humidity Sensor

Cod: AP9335TH APC

APC Service Bypass Panel- 230V, 100A, MBB, Hardwire input, (3) 30A Hardwire Output

Cod: SBP16KRMI4U APC

APC SERVICE BYPASS PANEL 230V 16A BBM IEC C20 input, (6) IEC C13 (1) C19 output

Cod: SBP3000RMI APC

APC Service Bypass Panel - 230V, 32A, BBM, IEC320 C20/HW Input, IEC-320 Output - (2) C19 (8) C13

Cod: SBP5000RMI2U APC

APC Service Bypass Panel- 230V, 32A, MBB, Hardwire input, (4) IEC-320 C19 Output

Cod: SBP6KRMI2U APC
