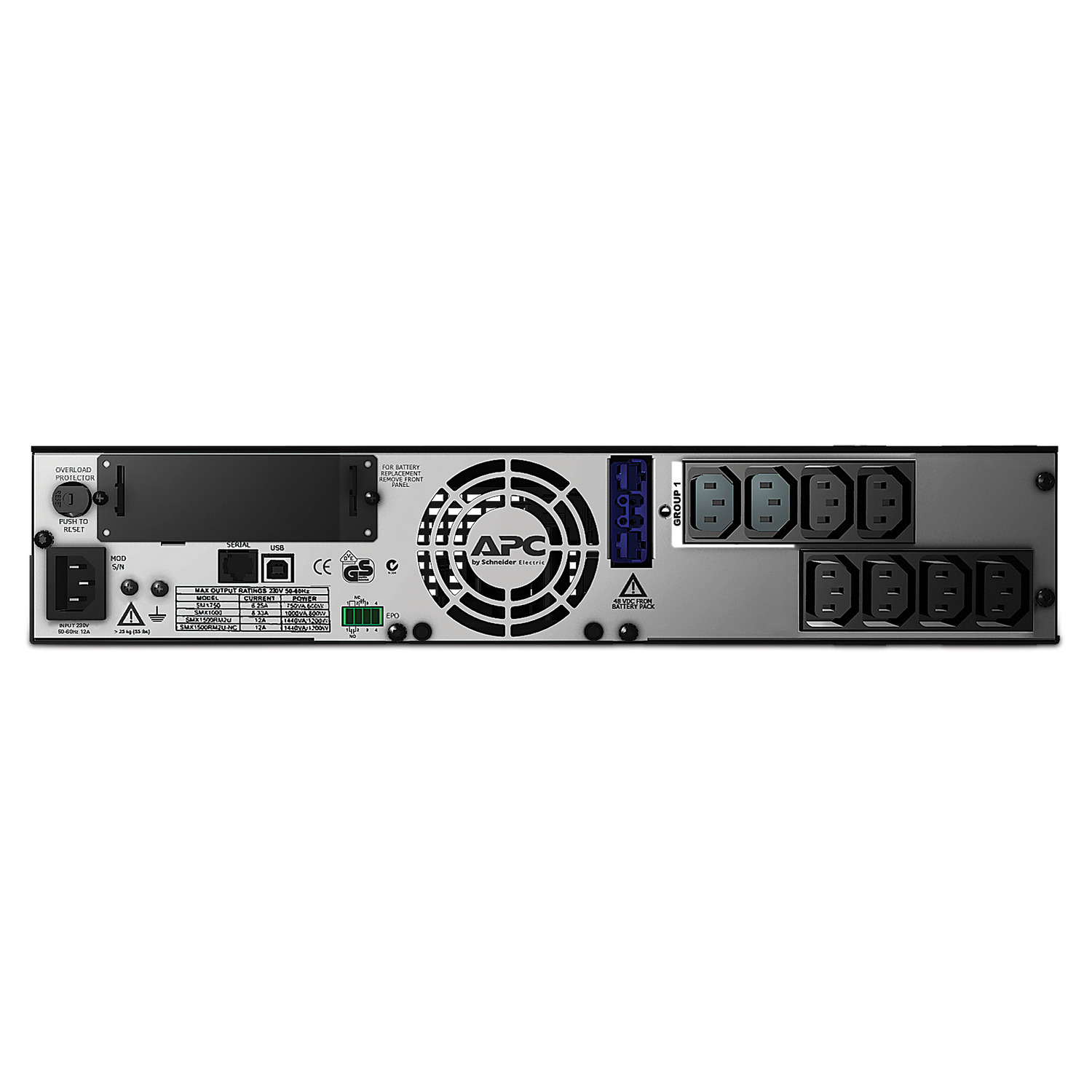

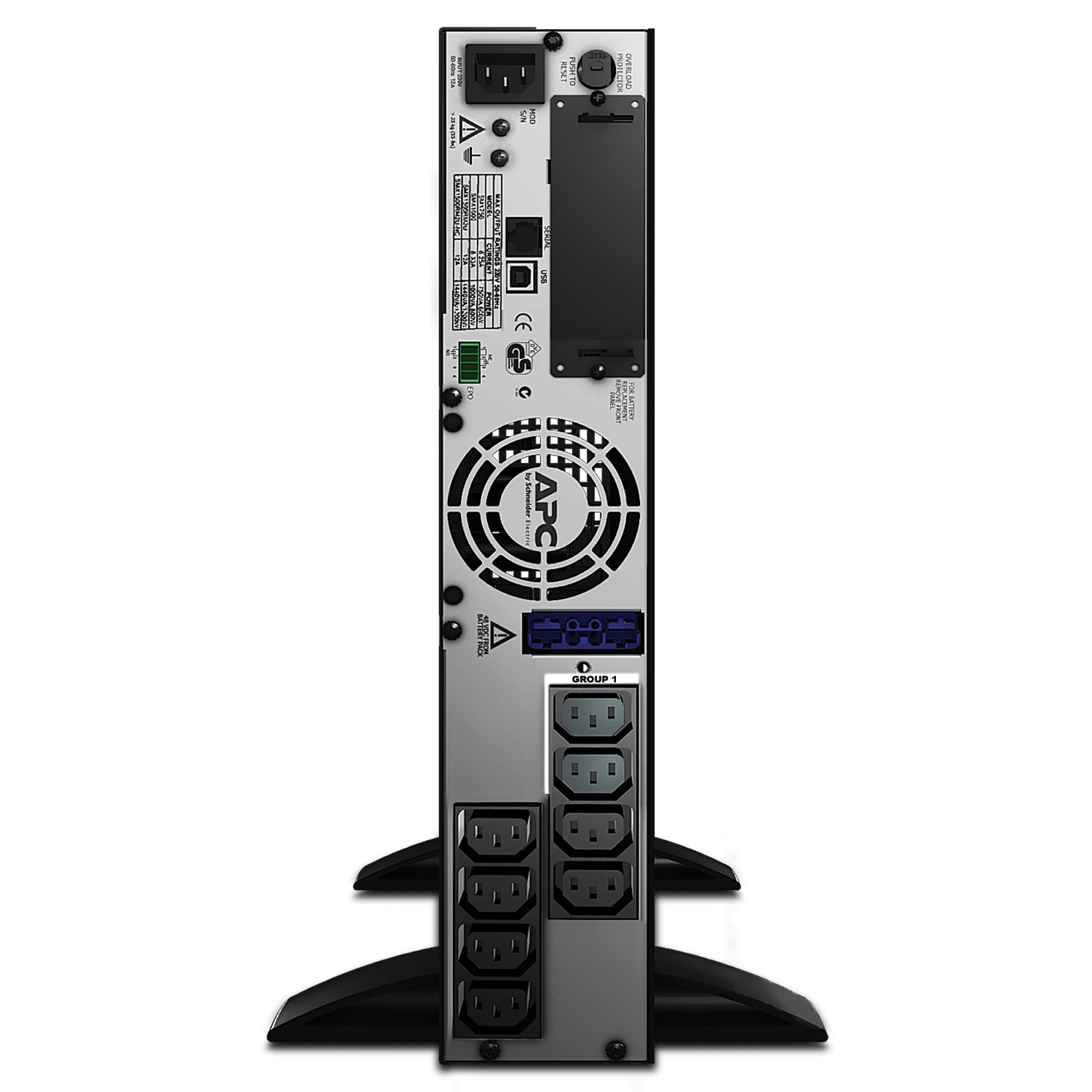

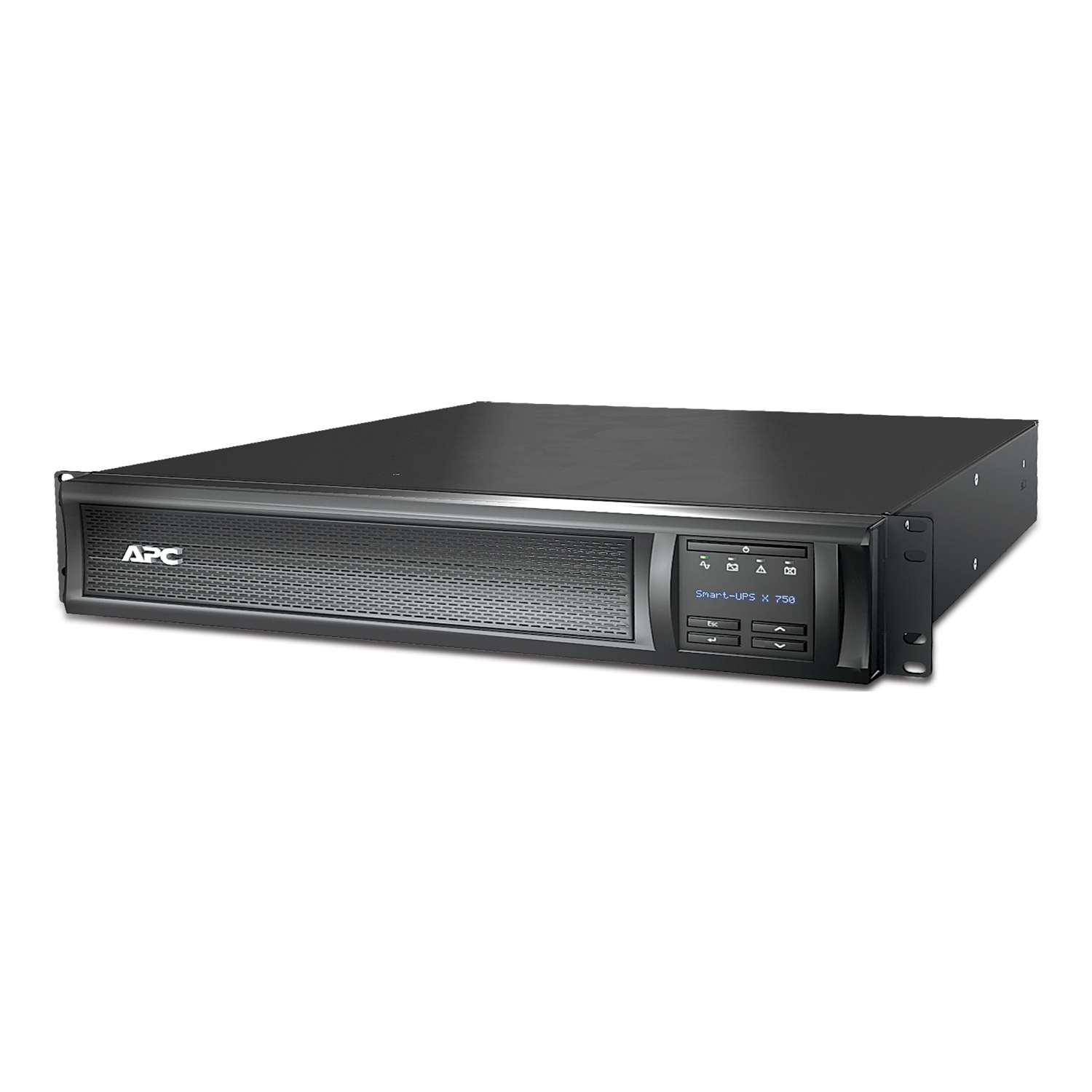

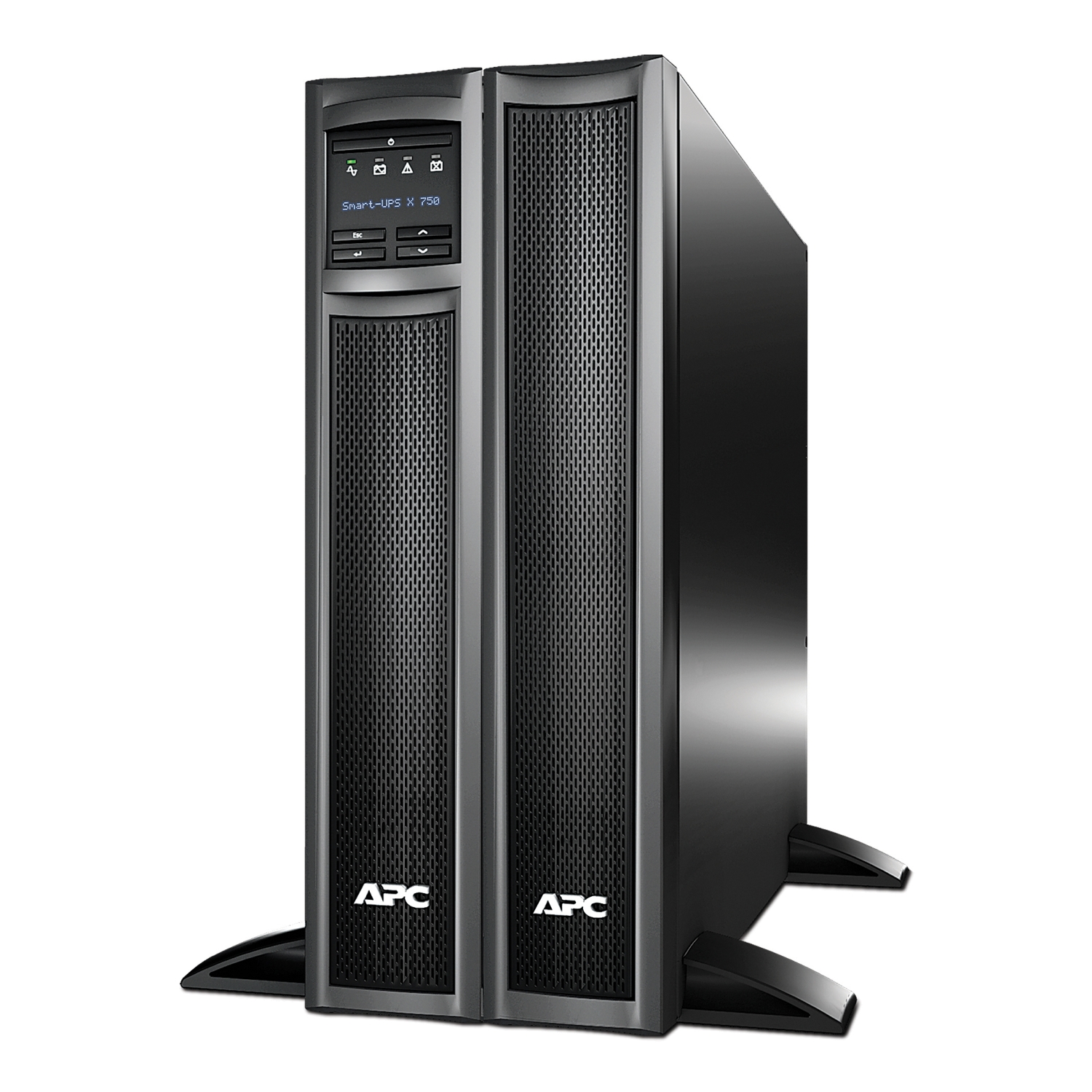

APC Smart-UPS X 750VA Rack/Tower LCD 230V

Cod produs: SMX750I

Autentificati-va pentru a vedea pretul.

Producator: APC

Set: 1 bucati

731304268581

Descriere

APC Smart-UPS X 750 VA Rack/Tower LCD 230 V

Documente

logo-pdf APC Smart-UPS X 750VA Rack/Tower LCD 230V

Link

Specificatii

Options
Potential free switch contact	No
Auto shut down function	No
Modular	No
SNMP	No
Electrical
Input voltage	230 V
Output power factor	0.8
Max. voltage distortion output (linear load)	0.05 %
Output apparent power	750 VA
Number of phases primary	1
Number of phases secondary	1
Voltage type	AC
Output voltage	230 V
Connection
Number of output connections C19	0
Number of output connections C13	8
Number of output connections with protective contact CEE 7/3 (type F)	0
USB interface	Yes
Input connection	C14
Number of output connections fixed connection	0
Number of output connections French standard (Type E)	0
Application
Suitable for network-management	No
Performance
Efficiency in eco-mode	96 %
Overall efficiency	92 %
Output effective power	600 W
Communication
With communication interface RS-232	No
Measurements
Height	89 mm
Width	432 mm
Weight	22.05 kg
Depth	490 mm
Other
Primary frequency	50 Hz
Secondary frequency	50 Hz
Bridging time full load	14.14 min
USV- technology	Line-interactive
Model/type
Construction type	482.6 mm (19 inch) device
Package 1
volume	91450 cm3
weight	26,444 kg
length	62 cm
width	59 cm
qmax	1
qmin	1
um	C62
gtin	731304268581
Package 2
volume	864000 cm3
weight	117,776 kg
length	120 cm
width	80 cm
qmax	4
qmin	4
um	PF

Afiseaza mai multe specificatii
