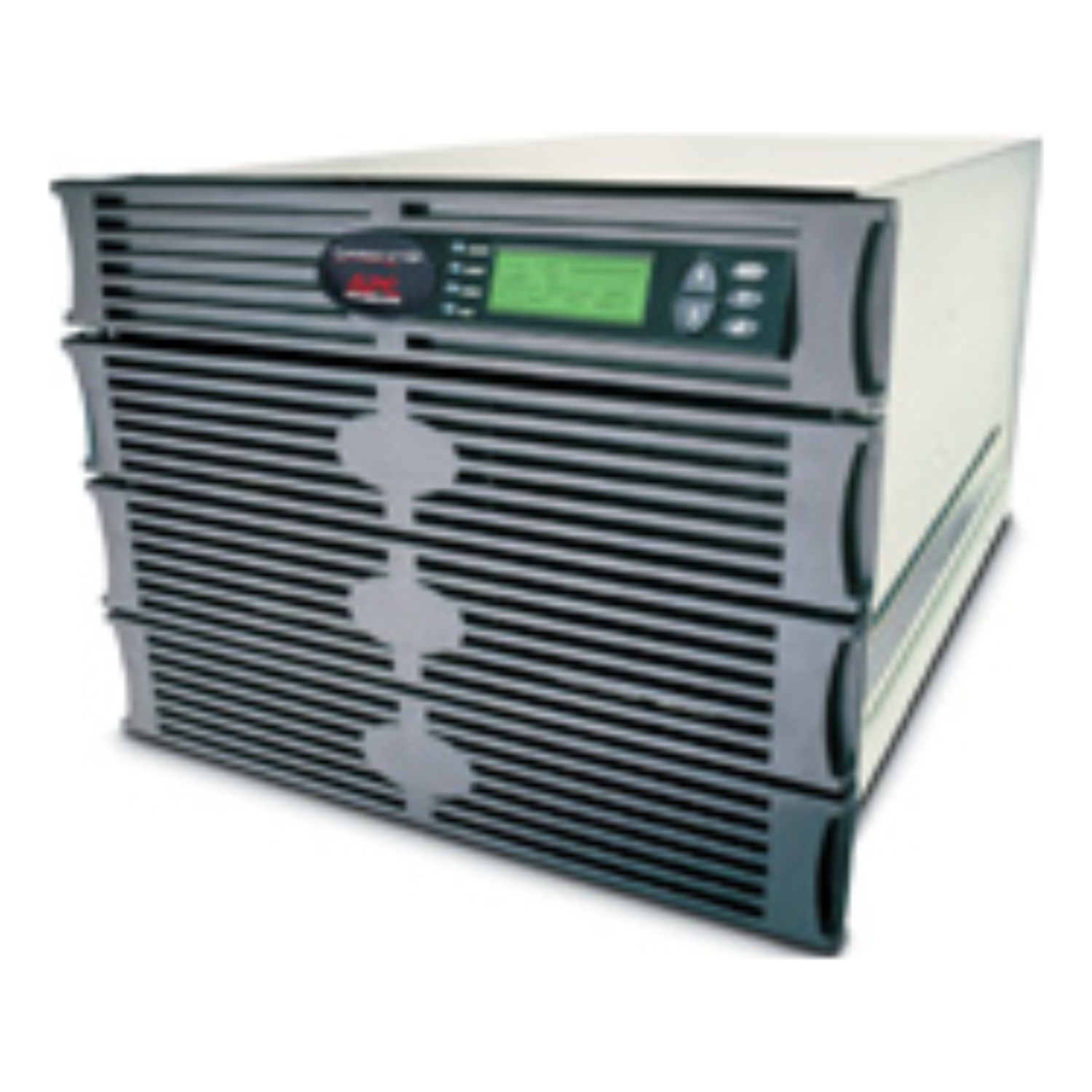

APC Symmetra RM 2kVA Scalable to 6kVA N+1 220-240V

Cod produs: SYH2K6RMI

Autentificati-va pentru a vedea pretul.

Producator: APC

Set: 1 bucati

3606485318684

Descriere

APC Symmetra RM 2 kVA scalabil la 6 kVA N+1 220-240 V

Documente

Fisa tehnica

APC Symmetra RM 2kVA Scalable to 6kVA N+1 220-240V

Alte surse

https://eref.se.com/ro/ro/scope/product/SYH2K6RMI

Specificatii

Options
Potential free switch contact	No
Auto shut down function	No
Modular	No
SNMP	Yes
Electrical
Input voltage	230 V
Output power factor	0.7
Max. voltage distortion output (linear load)	0 %
Output apparent power	2000 VA
Number of phases primary	1
Number of phases secondary	1
Voltage type	AC
Output voltage	230 V
Connection
Number of output connections C19	0
Number of output connections C13	0
Number of output connections with protective contact CEE 7/3 (type F)	0
USB interface	No
Input connection	Other
Number of output connections fixed connection	0
Number of output connections French standard (Type E)	0
Application
Suitable for network-management	Yes
Performance
Efficiency in eco-mode	96 %
Overall efficiency	96 %
Output effective power	1400 W
Communication
With communication interface RS-232	Yes
Measurements
Height	356 mm
Width	483 mm
Weight	74.55 kg
Depth	730 mm
Other
Primary frequency	50 Hz
Secondary frequency	50 Hz
Bridging time full load	12.6 min
USV- technology	Online
Model/type
Construction type	482.6 mm (19 inch) device
Package 1
volume	233480,864 cm3
weight	83,914 kg
length	78,7 cm
width	58,4 cm
qmax	1
qmin	1
um	C62
gtin	3606485318684

Afiseaza mai multe specificatii
