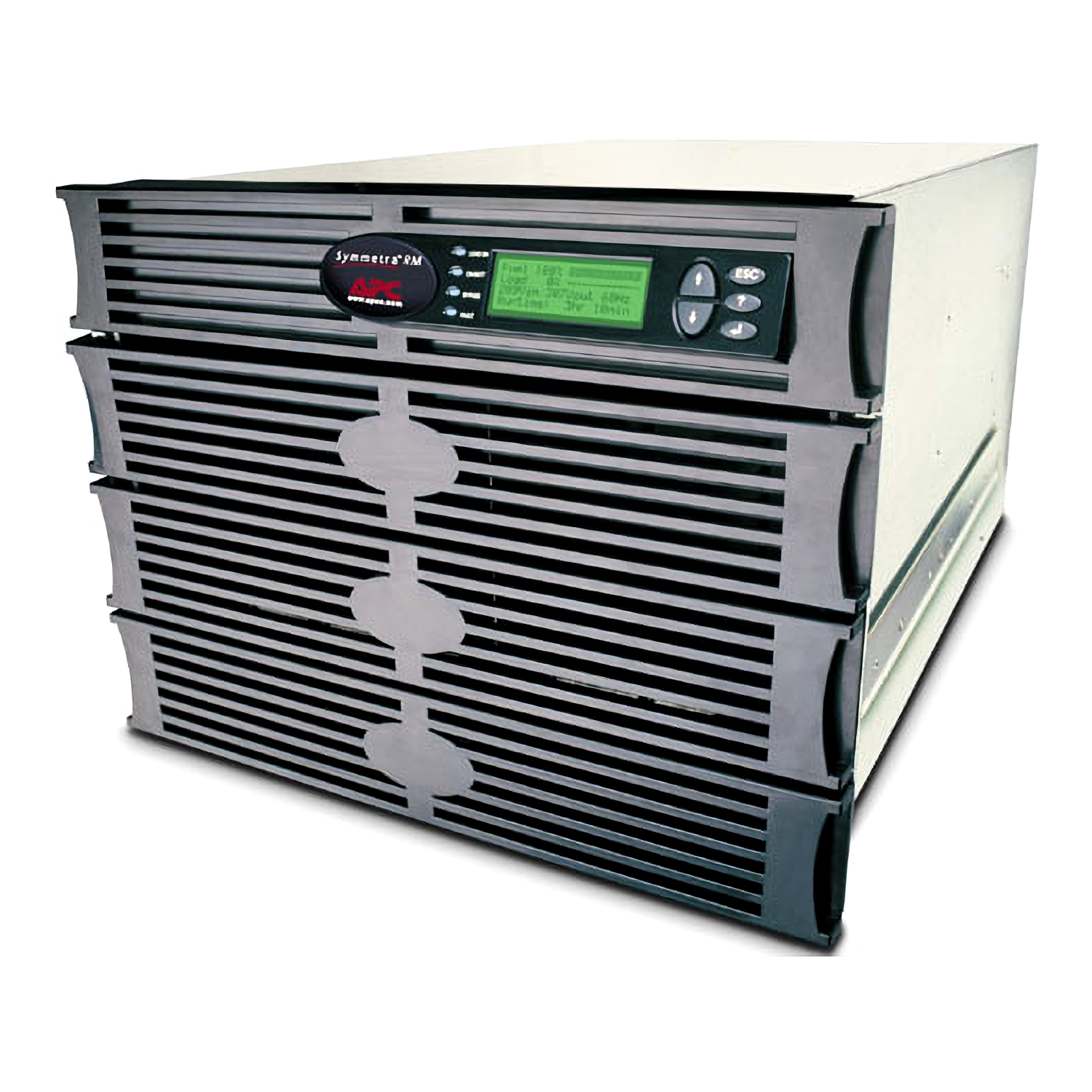

APC Symmetra RM 6kVA Scalable to 6kVA N+1 220-240V

Cod produs: SYH6K6RMI

Autentificati-va pentru a vedea pretul.

Producator: APC

Set: 1 bucati

3606485318660

Descriere

APC Symmetra RM 6 kVA scalabil la 6 kVA N+1 220-240 V

Documente

logo-pdf APC Symmetra RM 6kVA Scalable to 6kVA N+1 220-240V

Link

Specificatii

Options
Potential free switch contact	No
Auto shut down function	No
Modular	No
SNMP	No
Electrical
Input voltage	230 V
Output power factor	0.7
Max. voltage distortion output (linear load)	0.05 %
Output apparent power	6000 VA
Number of phases primary	1
Number of phases secondary	1
Voltage type	AC
Output voltage	230 V
Connection
Number of output connections C19	0
Number of output connections C13	0
Number of output connections with protective contact CEE 7/3 (type F)	0
USB interface	No
Input connection	Other
Number of output connections fixed connection	0
Number of output connections French standard (Type E)	0
Application
Suitable for network-management	Yes
Performance
Efficiency in eco-mode	92 %
Overall efficiency	89 %
Output effective power	4200 W
Communication
With communication interface RS-232	Yes
Measurements
Height	356 mm
Width	483 mm
Weight	133.64 kg
Depth	730 mm
Other
Primary frequency	50 Hz
Secondary frequency	50 Hz
Bridging time full load	12.8 min
USV- technology	Online
Model/type
Construction type	482.6 mm (19 inch) device
Package 1
volume	233,481 dm3
weight	148,64 kg
length	58,4 cm
width	78,7 cm
qmax	1
qmin	1
um	C62
gtin	3606485318660

Afiseaza mai multe specificatii

Accesorii

APC SYMMETRA LX 4.5 METER BATTERY CABINET CABLE- 230V

Cod: SYAOPT5I APC

APC Symmetra RM 4ft Extender Cable for 220-240V RM Battery Cabinet

Cod: SYOPT4I APC

UPS Communications Cable Simple Signalling

Cod: 940-0020 APC

UPS-LINK CABLE KIT

Cod: 940-0024 APC

RJ45 serial cable for Smart-UPS LCD Models 2M

Cod: AP940-0625A APC

RJ45 serial cable for Smart-UPS LCD Models 15

Cod: AP940-1525A APC

UPS Communications Cable Smart Signalling 15' / 4.5m

Cod: AP9804 APC

UPS INTERFACE EXTENSION

Cod: AP9815 APC

UPS Signaling Offer for IBM AS/400 and IBMi (IBM Power Systems)

Cod: AP98275 APC

APC Symmetra RM 2-6kVA N+1 Floor Mount Kit w/Casters

Cod: SYOPT1 APC

APC Symmetra LX/Symmetra RM Two Post Rail Kit

Cod: SYOPT12 APC

Rack Mounting Bracket for NetBotz Camera Pod 160

Cod: NBAC0302 APC

Power Cord Kit (6 ea), Locking, C13 TO C14 (90 Degree), 0.6m

Cod: AP8702R-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 0.6m

Cod: AP8702S-WW APC

Power Cord Kit (6 ea), Locking, C13 TO C14, 0.6m, Red

Cod: AP8702S-WWX340 APC

Power Cord Kit (6 ea), Locking, C13 TO C14, 0.6m, Blue

Cod: AP8702S-WWX590 APC

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2m

Cod: AP8704R-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m

Cod: AP8704S-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m, Red

Cod: AP8704S-WWX340 APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m, Blue

Cod: AP8704S-WWX590 APC

Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.8m

Cod: AP8706R-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m

Cod: AP8706S-WW APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m, Red

Cod: AP8706S-WWX340 APC

Power Cord Kit (6 ea), Locking, C13 to C14, 1.8m, Blue

Cod: AP8706S-WWX591 APC

Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 0.6m

Cod: AP8712R APC

Power Cord Kit (6 ea), Locking, C19 to C20, 0.6m

Cod: AP8712S APC

Power Cord Kit (6 EA), Locking, C19 TO C20, 0.6M (2FT), Red

Cod: AP8712SX340 APC

Power Cord Kit (6 ea), Locking, C19 to C20, 0.6m (2ft), Blue

Cod: AP8712SX590 APC

Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.2m

Cod: AP8714R APC

Power Cord Kit (6 ea), Locking, C19 to C20, 1.2m

Cod: AP8714S APC

Power Cord Kit (6 EA), Locking, C19 TO C20, 1.2M (4FT), Red

Cod: AP8714SX340 APC

Power Cord Kit (6 ea), Locking, C19 to C20, 1.2m, Blue

Cod: AP8714SX592 APC

Power Cord Kit (6 ea), Locking, C19 to C20 (90 Degree), 1.8m

Cod: AP8716R APC

Power Cord Kit (6 ea), Locking, C19 to C20, 1.8m

Cod: AP8716S APC

Power Cord Kit (6 EA), Locking, C19 TO C20, 1.8M, Red

Cod: AP8716SX340 APC

Power Cord Kit (6 ea), Locking, C19 to C20, 1.8m, Blue

Cod: AP8716SX593 APC

Power Cord, Locking C19 to L6-20P, 3.0m

Cod: AP8753 APC

Power Cord, Locking C19 to CEE/7 Schuko, 3.0m

Cod: AP8755 APC

Power Cord, Locking C19 to IEC309-16A, 3.0m

Cod: AP8758 APC

Power Cord, Locking C19 to Rewireable, 3.0m

Cod: AP8759 APC

Power Cord, Locking C19 to C20, 3.0m

Cod: AP8760 APC

Power Cord, C13 to C14, 2.5m

Cod: AP9870 APC

Power Cord, C19 to CEE/7 Schuko, 2.5m

Cod: AP9875 APC

Power Cord, C19 to IEC309 16A, 2.5m

Cod: AP9876 APC

Power Cord, C19 to C20, 2.0m

Cod: AP9877 APC

Power Cord, C19 to C14, 2.0m

Cod: AP9878 APC

Power Cord, C13 to C20, 2.0m

Cod: AP9879 APC

Power Cord, C14 to CEE 7/7 Schuko, 0.6m

Cod: AP9880 APC

Power Cord, C14 to BS1363 (UK), 0.6m

Cod: AP9881 APC

Power Cord, C19 to C20, 4.5m

Cod: AP9887 APC

APC Symmetra RM 220-240V Backplate Kit w/(8) IEC320 C13 & (2) IEC320 C19

Cod: SYPD4 APC

SY RM PDU 4XC19

Cod: SYPD8 APC

APC Symmetra RM 2-6kVA 230V Hardwire Kit

Cod: SYPD9 APC

RACK PDU, BASIC, HALF HEIGHT, 100-240V/20A, 220-240V/16A, (14) C13

Cod: AP6003A APC

Rack PDU, Basic, 0U/1U, 120-240V/15A, 220-240V/10A, (8) C13

Cod: AP6015A APC

Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13

Cod: AP6020A APC

Rack PDU, Basic, 0U/1U, 220-240V, 32A, (4) C19, EMEA/ASIA

Cod: AP6032A APC

Rack PDU, Basic, 0U/1U, 220-240V, 63A, (3) C19

Cod: AP6038A APC

Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19

Cod: AP6120A APC

IN-LINE CURRENT METER, 16A, 230V, IEC309-16A, 2P+G

Cod: AP7152B APC

In-Line Current Meter, 32A, 230V, IEC309-32A, 2P+G

Cod: AP7155B APC

IN-LINE CURRENT METER, 32A, 230V, IEC309-32A 3-PH, 3P+N+G

Cod: AP7175B APC

Rack PDU, Basic, 1U, 22KW, 400V, (6) C19

Cod: AP7526 APC

Rack PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19, IEC309

Cod: AP7551 APC

Rack PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19, IEC C20

Cod: AP7552 APC

Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19

Cod: AP7553 APC

Rack PDU,Basic,ZeroU,16A,230V,(20)C13 & (4)C19, IEC309, 10 ft Cord

Cod: AP7554 APC

Rack PDU, Basic, Zero U, 22kW, 230V, (6) C19 & (3) C13, High Temp

Cod: AP7555A APC

Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19

Cod: AP7557 APC

Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC C19

Cod: AP7585 APC

Rack PDU Extender, Basic, 2U, 32A, 230V, (4) IEC 309-32

Cod: AP7586 APC

RACK PDU, METERED, 1U, 12A/208V, 10A/230V, (8) C13

Cod: AP7820B APC

RACK PDU, METERED, 1U, 16A, 208/230V, (8) C13

Cod: AP7821B APC

RACK PDU, METERED, 2U, 32A, 230V, (12) C13 & (4) C19

Cod: AP7822B APC

Rack PDU, Metered, Zero U, 10A, 230V, (16) C13

Cod: AP7850B APC

RACK PDU, SWITCHED, 1U, 12A/208V, 10A/230V, (8)C13

Cod: AP7920B APC

RACK PDU, SWITCHED, 1U, 16A, 208/230V, (8)C13

Cod: AP7921B APC

RACK PDU, SWITCHED, 2U, 32A, 230V, (16)C13

Cod: AP7922B APC

RACK PDU, SWITCHED, ZERO U, 10A, 230V, (16) C13

Cod: AP7950B APC

Rack PDU 2G, Metered-by-Outlet, ZeroU, 32A, 230V, (21) C13 & (3) C19

Cod: AP8453 APC

Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 230V, (21) C13 & (3) C19

Cod: AP8459EU3 APC

Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 100-240V, (21) C13 & (3) C19

Cod: AP8459WW APC

Rack PDU 2G, Metered-by-Outlet, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Cod: AP8481 APC

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19

Cod: AP8653 APC

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 16A, 100-240V, (21) C13 & (3) C19

Cod: AP8659 APC

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 16A, 230V, (21) C13 & (3) C19

Cod: AP8659EU3 APC

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Cod: AP8681 APC

Rack PDU 2G, Metered, ZeroU, 32A, 230V, (36) C13 & (6) C19

Cod: AP8853 APC

Rack PDU 2G, Metered, ZeroU,16A, 100-240V, (18) C13 & (2) C19

Cod: AP8858 APC

Rack PDU 2G, Metered, ZeroU, 16A, 230V, (18) C13 & (2) C19, IEC309 Cord

Cod: AP8858EU3 APC

Rack PDU 2G, Metered, ZeroU, 11kW, 230V, (36) C13 & (6) C19

Cod: AP8881 APC

Rack PDU 2G, Metered, ZeroU, 22.0kW(32A), 230V, (30) C13 & (12) C19

Cod: AP8886 APC

Rack PDU 2G, Metered, ZeroU, 22.0kW(32A), 230V, (30) C13 & (12) C19, 4.0M Cord

Cod: AP8886X811 APC

Rack PDU 2G, Switched, ZeroU, 16A, 100-240V, (7) C13 & (1) C19

Cod: AP8958 APC

Rack PDU 2G, Switched, ZeroU, 16A, 230V, (7) C13 & (1) C19, IEC309 Cord

Cod: AP8958EU3 APC

Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

Cod: AP9559 APC

Rack PDU, Basic, 1U, 16A, 208/230V, (12)C13

Cod: AP9565 APC

Rack PDU,Basic,Zero U,10A,230V, (15)C13

Cod: AP9568 APC

Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13

Cod: AP9572 APC

APC Rack PDU 9000 Switched, ZeroU, 32A, 230V, (21) C13 & (3) C19

Cod: APDU9953 APC

APC Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord

Cod: APDU9959EU3 APC

APC NetShelter Rack PDU 9000 Switched, ZeroU, 16A, 100-240V, (21) C13 & (3) C19, Japan

Cod: APDU9959J APC

APC Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13 & (3) C19, L620 Cord

Cod: APDU9959NA3 APC

APC Rack PDU 9000 Switched, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Cod: APDU9981EU3 APC

APC Rack PDU 9000 Switched, ZeroU, 11.5kW, 208V, (21) C13 & (3) C19

Cod: APDU9981NA3 APC

Easy PDU Basic 1U 16A 230V (8)C13

Cod: EPDU1016B APC

Easy PDU Metered 1U 16A 230V (8)C13

Cod: EPDU1016M APC

Easy PDU Switched 1U 16A 230V (8)C13

Cod: EPDU1016S APC

Easy PDU Basic ZeroU 16A 230V (20)C13 (4)C19 IEC309

Cod: EPDU1116B APC

Easy PDU Basic ZeroU 16A 230V (14) SCHUKO

Cod: EPDU1116B-SCH APC

Easy PDU Metered ZeroU 16A 230V (18)C13 (3)C19 IEC309

Cod: EPDU1116M APC

Easy PDU Switched ZeroU 16A 230V (20)C13 (4)C19 IEC309

Cod: EPDU1116S APC

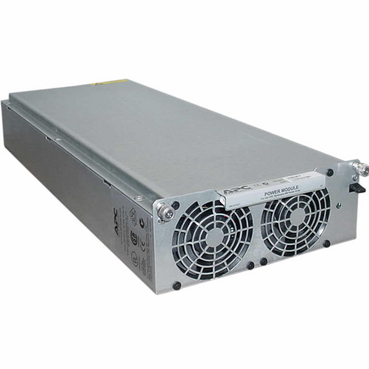

APC Symmetra RM 2-6kVA Power Module (2kVA)

Cod: SYPM2KU APC

APC 17" Rack LCD Console

Cod: AP5717 APC

APC 17" Rack LCD Console - French

Cod: AP5717F APC

APC 17" Rack LCD Console - Russian

Cod: AP5717R APC

APC 17" Rack LCD Console - United Kingdom

Cod: AP5717UK APC

APC 19" Rack LCD Console

Cod: AP5719 APC

17" Rack LCD Console with Integrated 8 Port Analog KVM Switch

Cod: AP5808 APC

17" Rack LCD Console with Integrated 16 Port Analog KVM Switch

Cod: AP5816 APC

MEASURE-UPS SWITCH KIT

Cod: AP9513 APC

NetShelter SX 42U 800mm Wide x 1200mm Deep Enclosure with Sides White

Cod: AR3380W APC

NetShelter SX 42U 1070mm Deep Split Side Panels Black Qty 2

Cod: AR7301 APC

NetShelter SX 42U 1200mm Deep Split Side Panels Qty. (2)

Cod: AR7303 APC

NetShelter SX 42U 1070 Split Feed Through Side Panels Black Qty 2

Cod: AR7305A APC

NetShelter SX 42U 1200 Split Feed Through Side Panels Black Qty 2

Cod: AR7313 APC

Vertical Cable Organizer, NetShelter SX, 42U (Qty. 2)

Cod: AR7502 APC

Vertical Cable Organizer, Center Rear Mount, NetShelter SX

Cod: AR7505 APC

Narrow Vertical Cable Organizer, NetShelter SX, 42U

Cod: AR7511 APC

Toolless Cable Management Rings (Qty 10)

Cod: AR7540 APC

Toolless Cable Management Rings (Qty 100)

Cod: AR7540100 APC

Vertical Cable Manager for NetShelter SX 750mm Wide 42U (Qty 2)

Cod: AR7580A APC

Hinged Covers for NetShelter SX 750mm Wide 42U Vertical Cable Manager (Qty 2)

Cod: AR7581A APC

Cable Retainer for NetShelter SX 750mm Wide Vertical Cable Managers (Qty 6)

Cod: AR7582A APC

NetShelter SX 42U/48U Baying Trim Kit Black

Cod: AR7600 APC

NetShelter SX 600mm/750mm Stabilizer Plate

Cod: AR7700 APC

NetShelter SX Bolt-Down Kit

Cod: AR7701 APC

Mounting Rail Brush Strips, NetShelter SX, 750mm Wide

Cod: AR7706 APC

Cable Management Rings, 8 Inch Deep, NetShelter SX, 750mm Wide (Qty. 8)

Cod: AR7707 APC

Cable Containment Brackets with PDU Mounting Capability for NetShelter SX

Cod: AR7710 APC

NetShelter Zero U Accessory Mounting Bracket

Cod: AR7711 APC

NetShelter SX Roof Brush Strip

Cod: AR7714 APC

NetShelter ValueLine Swivel Caster Kit (Qty = 4)

Cod: AR7719 APC

NetShelter SX External Air Sealing Kit

Cod: AR7731 APC

10-32 Hardware Kit

Cod: AR8005 APC

Horizontal Cable Organizer Side Channel 18 to 30 inch adjustment

Cod: AR8008BLK APC

M6 Hardware for 600mm Wide Enclosures

Cod: AR8100 APC

Blanking Panel Kit 19" Black (1U, 2U, 4U, 8U)

Cod: AR8101BLK APC

Fixed Shelf - 50lbs/23kg, Black

Cod: AR8105BLK APC

1U Blanking Panel Kit 19" Black

Cod: AR8108BLK APC

Cable Management Rings (Qty. 5 Large and 5 Small Rings)

Cod: AR8113A APC

Fixed Shelf - 250lbs/114kg, Black

Cod: AR8122BLK APC

Sliding Shelf - 100lbs/45kg Black

Cod: AR8123BLK APC

17" Keyboard Drawer Black

Cod: AR8126ABLK APC

19" Rotating Keyboard Drawer Black

Cod: AR8127BLK APC

Sliding Shelf - 200lbs/91kg Black

Cod: AR8128BLK APC

Cable Management Arm

Cod: AR8129 APC

Combination Lock Handles (Qty 2)

Cod: AR8132A APC

APC 1U 19" Black Modular Toolless Blanking Panel - Qty 10

Cod: AR8136BLK APC

APC 1U 19" Black Modular Toolless Blanking Panel - Qty 200

Cod: AR8136BLK200 APC

Bracket Kit, Cable Ladder Elevation

Cod: AR8186 APC

Horizontal Cable Organizer 1U

Cod: AR8425A APC

Horizontal Cable Organizer 2U

Cod: AR8426A APC

Horizontal Cable Organizer 2U w/pass through holes

Cod: AR8428 APC

Horizontal Cable Organizer 1U w/brush strip

Cod: AR8429 APC

Vertical Cable Organizer, 8 Cable Rings, Zero U

Cod: AR8442 APC

Vertical Fiber Organizer

Cod: AR8443A APC

Spools for Vertical Fiber Organizer Qty. (4)

Cod: AR8444 APC

Cable Trough, 800mm

Cod: AR8571X417 APC

Horizontal Cable Manager, 2U x 4" Deep, Single-Sided with Cover

Cod: AR8600A APC

Horizontal Cable Manager, 1U x 4" Deep, Single-Sided with Cover

Cod: AR8602A APC

2U Horizontal Cable Manager, 6" Fingers Top, Bottom Tie Down

Cod: AR8603A APC

3U Horizontal Cable Manager, 6" Fingers top and bottom

Cod: AR8605 APC

2U Horizontal Cable Manager, 6" Fingers top and bottom

Cod: AR8606 APC

1U Horizontal Cable Manager, 6" deep, Single-Sided

Cod: AR8612 APC

Toolless Hook and Loop Cable Managers (Qty 10)

Cod: AR8621 APC

Cable Fall for NetShelter Racks and Enclosures (Qty 2)

Cod: AR8654 APC

APC KVM 2G, LCD Rear Mounting Kit

Cod: KVM-LCDMOUNT APC

APC KVM 2G, Analog, 1 Local User, 8 Ports

Cod: KVM0108A APC

APC KVM 2G, Analog, 1 Local User, 16 ports

Cod: KVM0116A APC

APC KVM 2G, Digital/IP, 1 Remote/1 Local User, 16 Ports with Virtual Media - FIPS 140-2

Cod: KVM1116R APC

NetBotz Rack Monitor 750

Cod: NBRK0750 APC

APC Temperature Sensor

Cod: AP9335T APC

APC Temperature & Humidity Sensor

Cod: AP9335TH APC

APC Service Bypass Panel- 230V, 100A, MBB, Hardwire input, (3) 30A Hardwire Output

Cod: SBP16KRMI4U APC

APC SERVICE BYPASS PANEL 230V 16A BBM IEC C20 input, (6) IEC C13 (1) C19 output

Cod: SBP3000RMI APC

APC Service Bypass Panel - 230V, 32A, BBM, IEC320 C20/HW Input, IEC-320 Output - (2) C19 (8) C13

Cod: SBP5000RMI2U APC

APC Service Bypass Panel- 230V, 32A, MBB, Hardwire input, (4) IEC-320 C19 Output

Cod: SBP6KRMI2U APC

Dry Contact I/O SmartSlot Card

Cod: AP9613 APC

APC Dry Contact I/O Accessory

Cod: AP9810 APC

APC WW 10KVA Isolation Transformer

Cod: APTF10KW01 APC

APC WW 20KVA Isolation Transformer

Cod: APTF20KW01 APC

Recomandari

1 Yr Advantage EAA Prevent Service Plan for (1) 1P UPS up to 10kVA

Cod: WADV1PEAA APC

1 Yr Advantage EAA Prevent Service Plan for (1) 1 or 3P UPS 10 - 40kVA, Batt Frm, PDU or Acc.

Cod: WADVEAA-AA-01 APC

1Yr EAA Prev Srvc Upgrd to FW or Exstng Srvc Plan - (1) 1or3P UPS 10 - 40kVA, Batt Frm, PDU or Acc.

Cod: WUPGEAA-UG-01 APC

Scheduled 5X8 Assembly and Power-Up Service

Cod: WASSEMUPS-3R-SY-00 APC

5 X 8 Power Up for 1P Symmetra

Cod: WSTRTUP-SY-00 APC

1 Year NBD 1P Advantage Plan with (1) Preventive Maintenance Visit for Symmetra

Cod: WADV1PWPM-SY-06 APC

1 Year NBD 1P Advantage Plan for Symmetra

Cod: WADVPLN1P-SY-06 APC

(1) Stand Alone PM Visit for (1) UPS up to 40 kVA UPS

Cod: WSAPMV-UG-01 APC

Service Pack 1 Year Warranty Extension (for new product purchases)

Cod: WBEXTWAR1YR-SP-06 APC

Service Pack 3 Year Warranty Extension (for new product purchases)

Cod: WBEXTWAR3YR-SP-06 APC

1 Year Extended Warranty (Renewal or High Volume)

Cod: WEXTWAR1YR-SP-06 APC

3 Year Extended Warranty (High Volume)

Cod: WEXTWAR3YR-SP-06 APC

(1) YR NBD On-Site Service Upgrade to Factory Warranty

Cod: WUPGONSITEFW-SY-00 APC

Altele

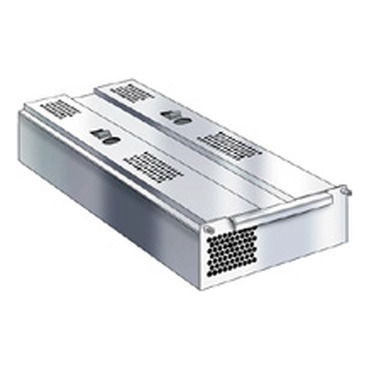

APC Symmetra RM 2-6kVA Battery Module

Cod: SYBT2 APC

APC Symmetra RM XR Frame w/2 SYBT2 Scalable to 4 220-240V

Cod: SYRMXR2B4I APC

APC Symmetra RM XR Frame w/4 SYBT2, 220-240V

Cod: SYRMXR4B4I APC
