Descriere

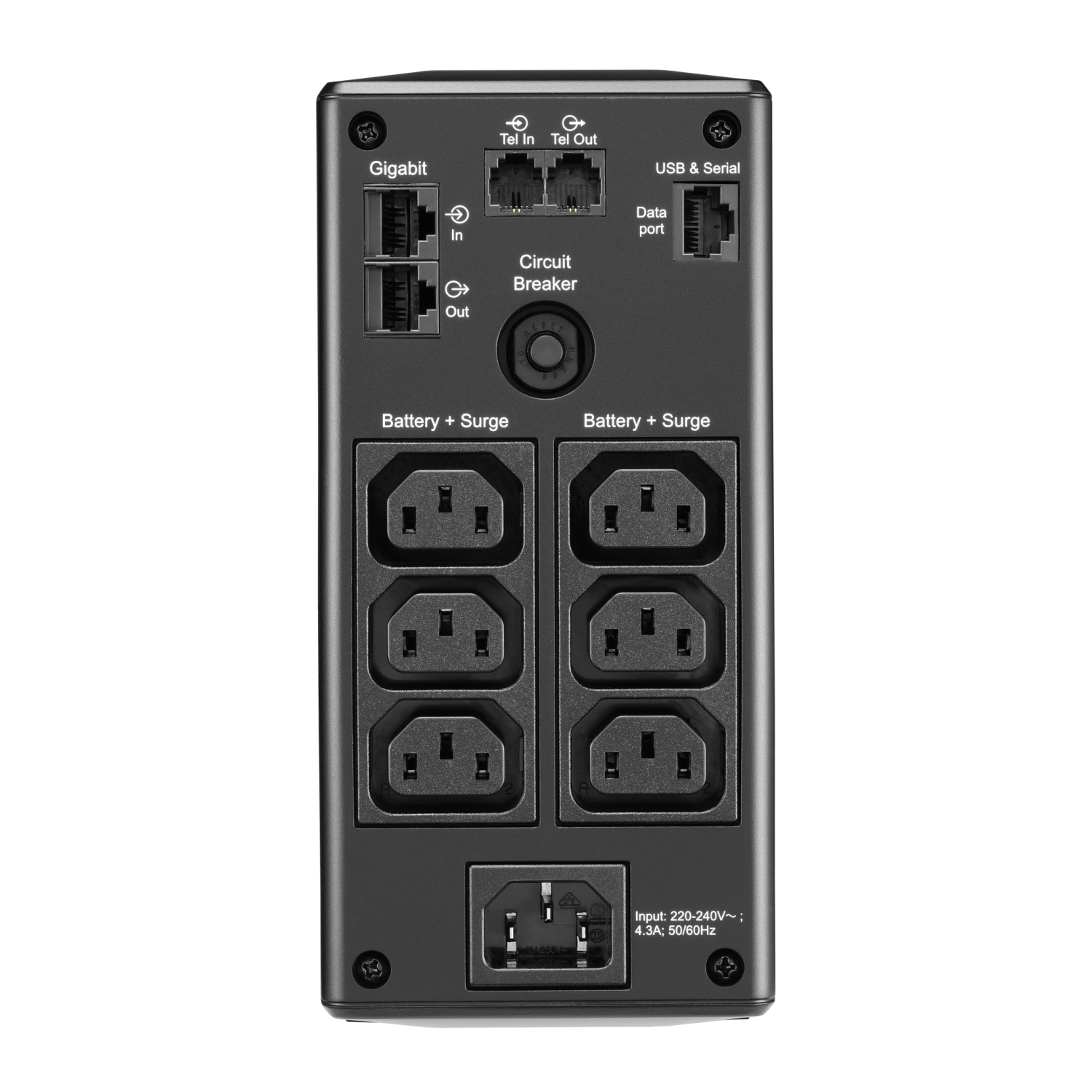

Back UPS Pro BR 650VA, 6 Iesiri, AVR, Interfata LCD
Documente
Specificatii
| Options | |
| Potential free switch contact | No |
| Auto shut down function | No |
| Modular | No |
| SNMP | No |
| Electrical | |
| Input voltage | 230 V |
| Output power factor | 0.6 |
| Max. voltage distortion output (linear load) | 0 % |
| Output apparent power | 650 VA |
| Number of phases primary | 1 |
| Number of phases secondary | 1 |
| Voltage type | AC |
| Output voltage | 230 V |
| Connection | |
| Number of output connections C19 | 0 |
| Number of output connections C13 | 6 |
| Number of output connections with protective contact CEE 7/3 (type F) | 0 |
| USB interface | Yes |
| Input connection | C14 |
| Number of output connections fixed connection | 0 |
| Number of output connections French standard (Type E) | 0 |
| Application | |
| Suitable for network-management | No |
| Performance | |
| Efficiency in eco-mode | 0 % |
| Overall efficiency | 0 % |
| Output effective power | 390 W |
| Communication | |
| With communication interface RS-232 | No |
| Measurements | |
| Height | 190 mm |
| Width | 91 mm |
| Weight | 6.4 kg |
| Depth | 310 mm |
| Other | |
| Primary frequency | 50 Hz |
| Secondary frequency | 50 Hz |
| Bridging time full load | 2.44 min |
| USV- technology | Line-interactive |
| Model/type | |
| Construction type | Freestanding model |
| Package 1 | |
| volume | 16044,6 cm3 |
| weight | 7,4 kg |
| length | 44 cm |
| width | 14,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304346937 |
