Descriere

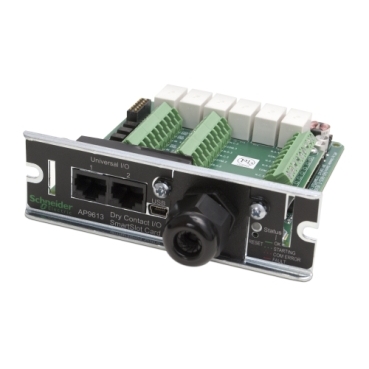

The Dry Contact I/O Card provides 6 configurable output relays and 4 input contacts to monitor external triggers and initiate actions on external devices. The 2 Universal I/O (UIO) ports support optional environmental sensors and the Dry Contact I/O Accessory. The Dry Contact I/O Accessory provides 2 additional dry contact input and relay output interfaces. Connect the included USB cable to the Card and a PC to use the Configuration Utility user interface. Configure UPS settings and output relay, input contact and environmental sensor actions based on status changes or UPS events.
Documente
Specificatii
| Measurements | |
| Width | 121 mm |
| Height | 38 mm |
| Depth | 114 mm |
| Model/type | |
| Accessory | Yes |
| Spare part | No |
| Type of accessory/spare part | Network interface |
| Package 1 | |
| volume | 1814,67 cm3 |
| weight | 400 g |
| length | 23,4 cm |
| width | 16,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304293842 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 3,181 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 40731304293840 |
