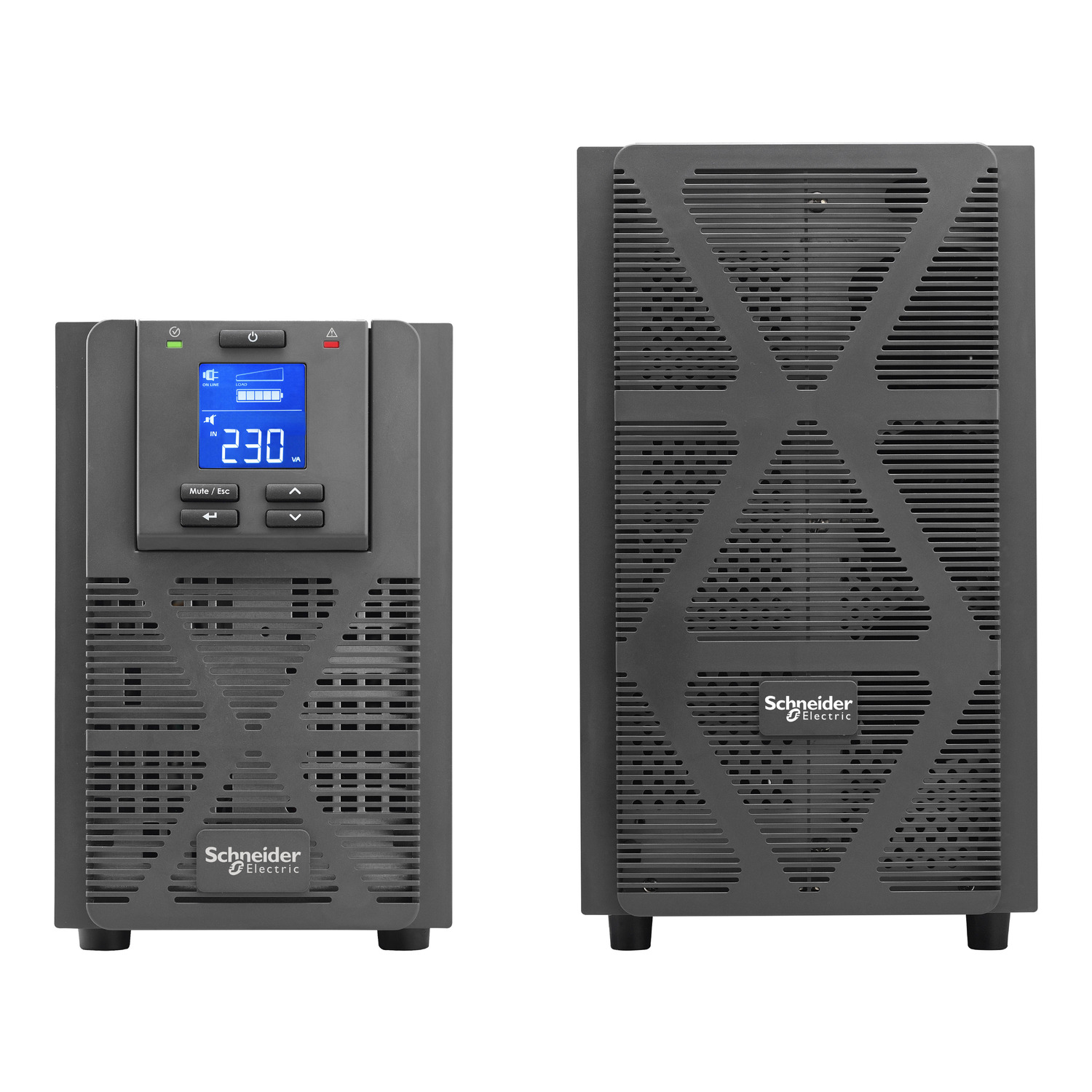

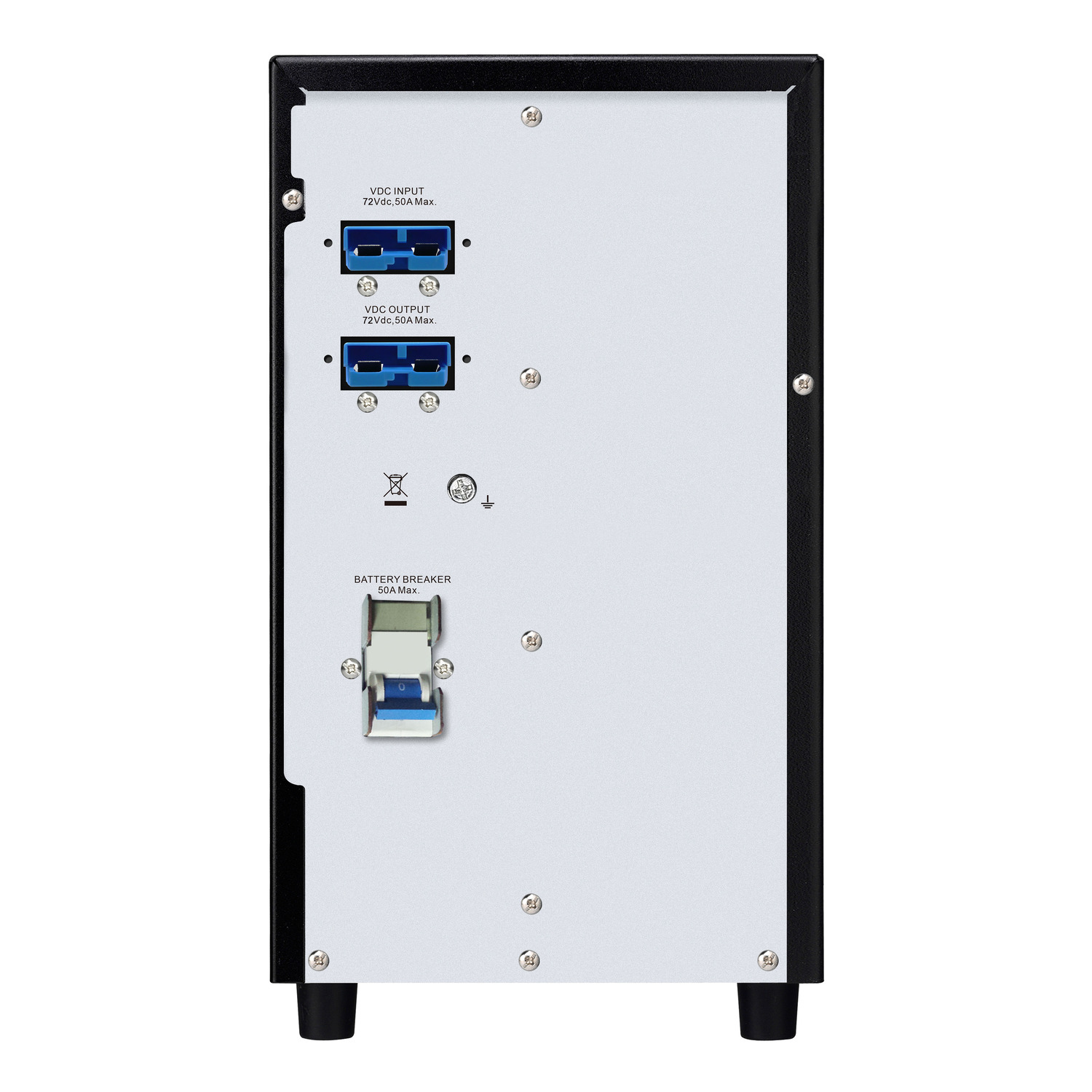

Easy UPS 1Ph on-line SRVS ext. Runtime 3000 VA 230 V with external battery pack
Cod produs: SRVS3KIL
Descriere

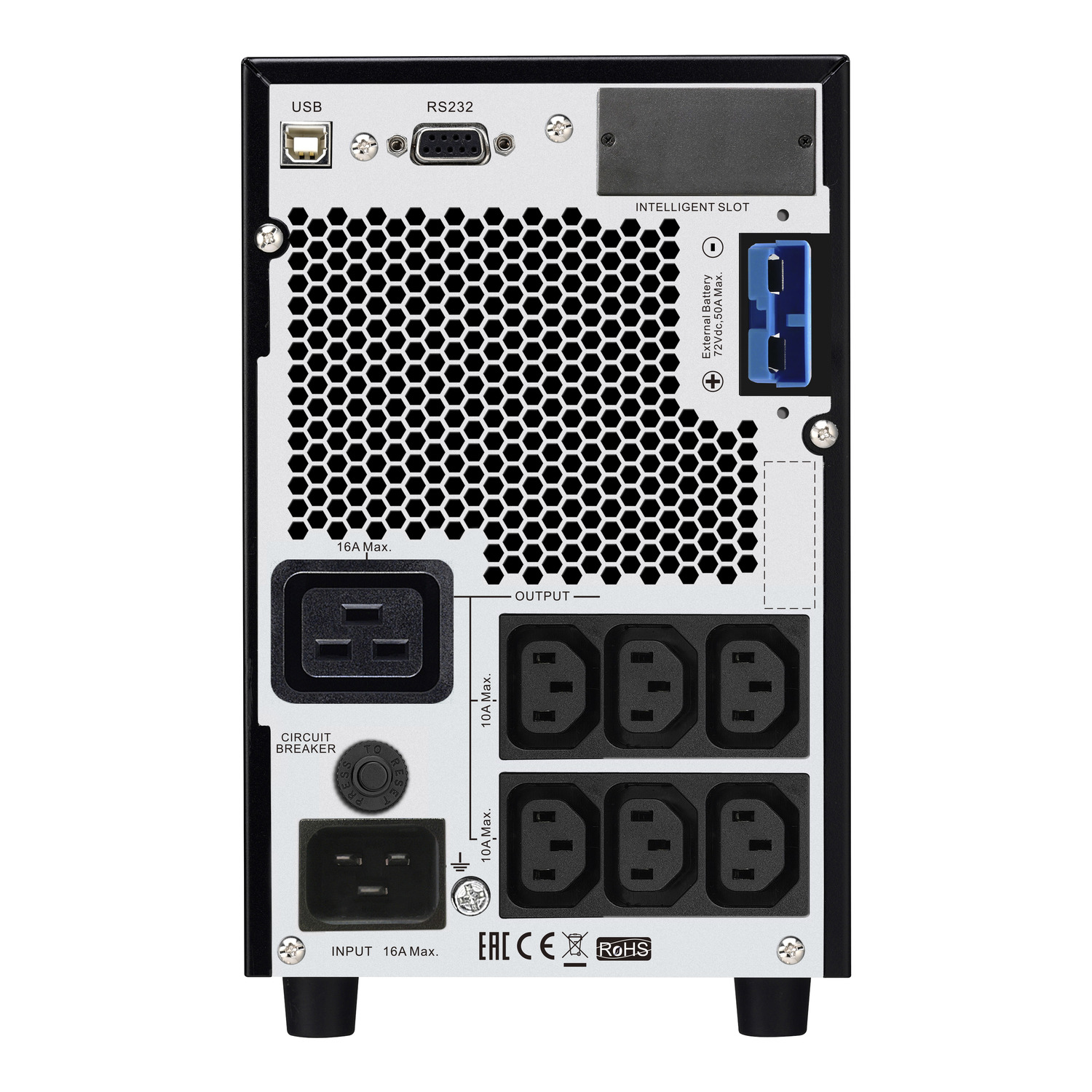

Easy UPS 1 Ph On-Line, 3kVA, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended runtime
Documente
Specificatii
| Options | |
| Potential free switch contact | Yes |
| Auto shut down function | Yes |
| Modular | No |
| SNMP | Yes |
| Electrical | |
| Input voltage | 230 V |
| Output power factor | 0.8 |
| Max. voltage distortion output (linear load) | 3 % |
| Output apparent power | 3000 VA |
| Number of phases primary | 1 |
| Number of phases secondary | 1 |
| Voltage type | AC |
| Output voltage | 220 V |
| Connection | |
| Number of output connections C19 | 1 |
| Number of output connections C13 | 6 |
| Number of output connections with protective contact CEE 7/3 (type F) | 0 |
| USB interface | Yes |
| Input connection | C20 |
| Number of output connections fixed connection | 0 |
| Number of output connections French standard (Type E) | 0 |
| Application | |
| Suitable for network-management | Yes |
| Performance | |
| Efficiency in eco-mode | 95 % |
| Overall efficiency | 90 % |
| Output effective power | 2400 W |
| Communication | |
| With communication interface RS-232 | No |
| Measurements | |
| Height | 336 mm |
| Width | 335 mm |
| Weight | 45.9 kg |
| Depth | 425 mm |
| Other | |
| Primary frequency | 45 Hz |
| Secondary frequency | 50 Hz |
| Bridging time full load | 14 min |
| USV- technology | Online |
| Model/type | |
| Construction type | Freestanding model |
| Package 1 | |
| volume | 35132,5 cm3 |
| weight | 9,8 kg |
| length | 47 cm |
| width | 32,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304792536 |
