Descriere

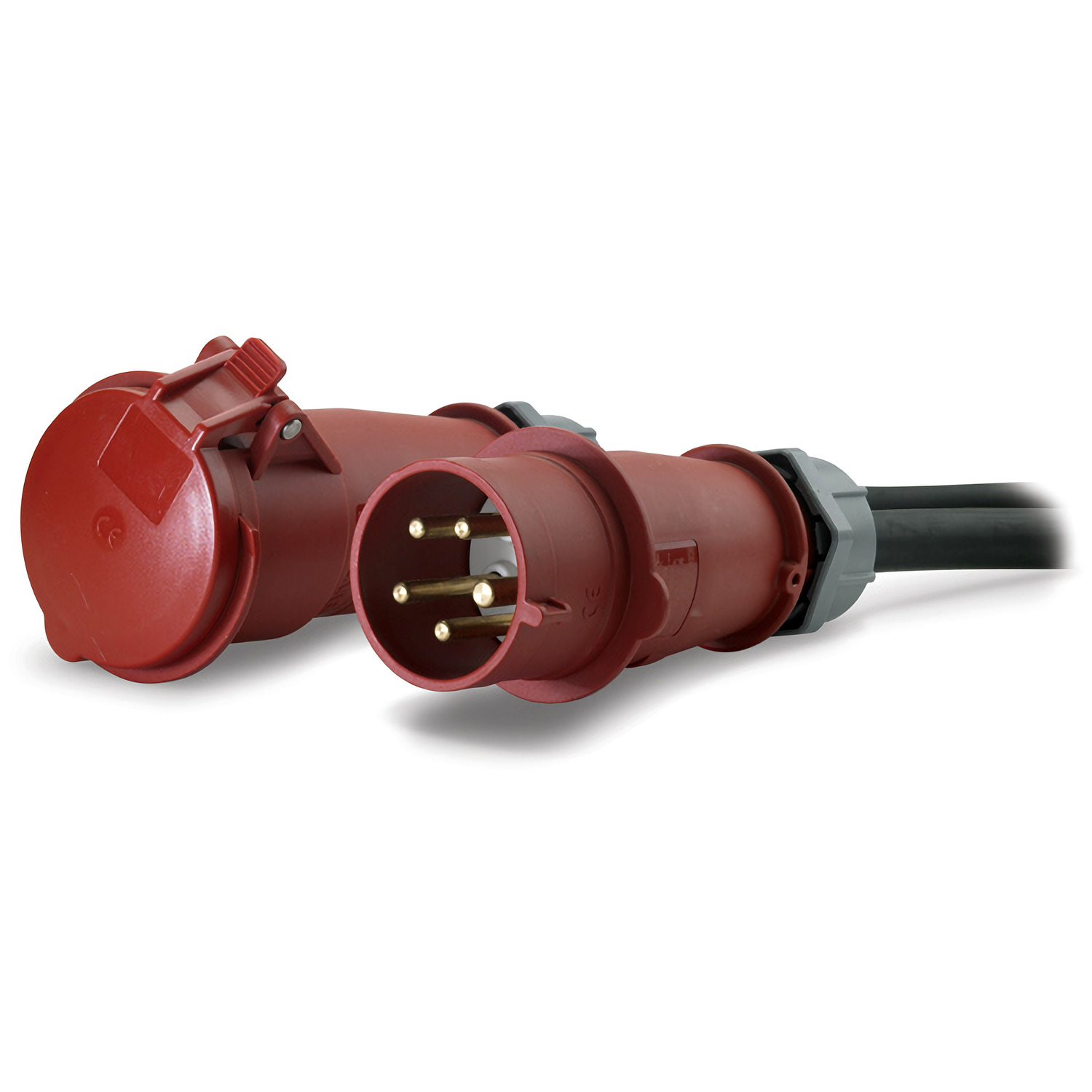

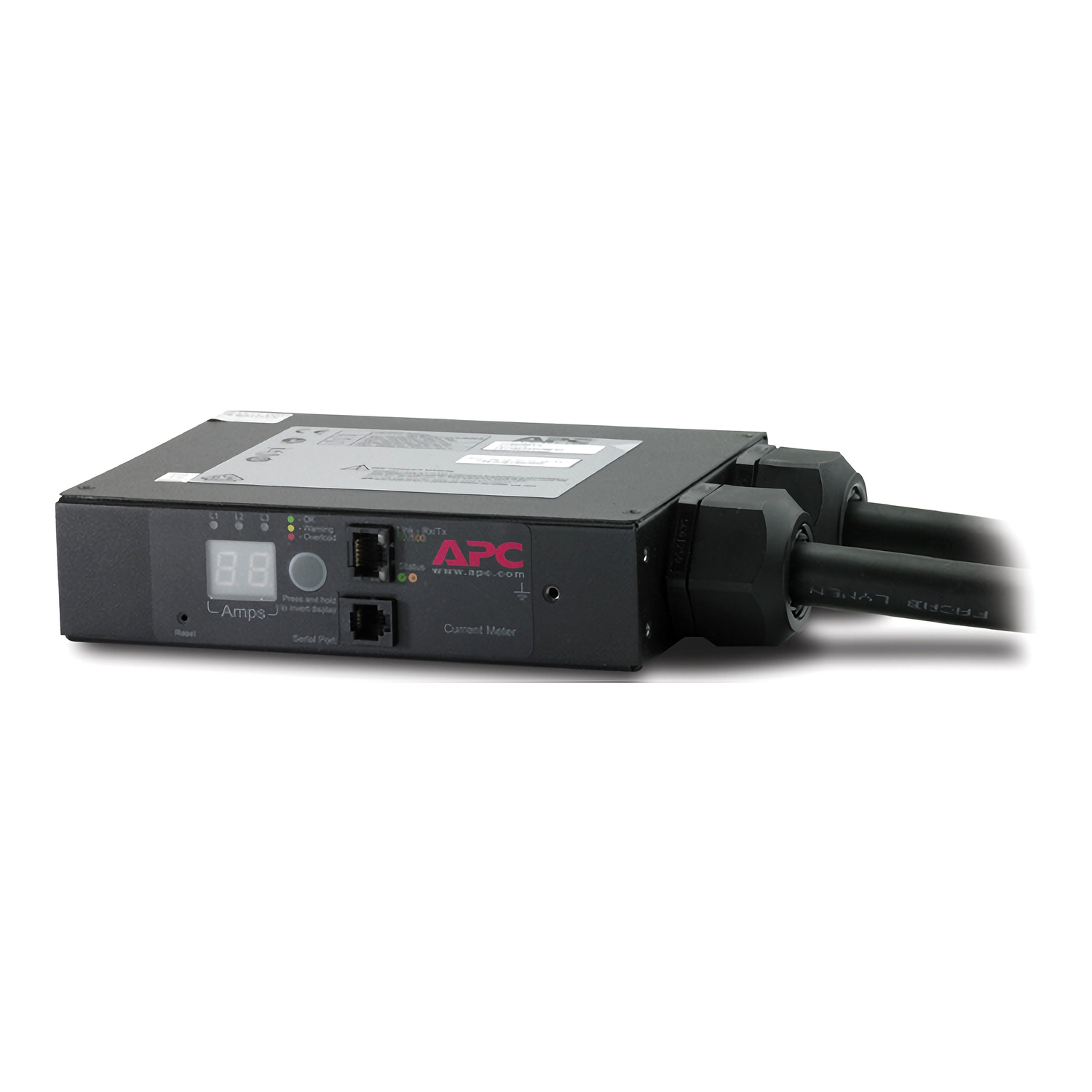

Aparat de mÄsurat curentul pe linie, 32 A, 230 V, IEC 309-32 A 3 Faz, 3P+N+G
Documente
Specificatii
| Model/type | |
| With firmware signature | No |
| With audit logging (audit log) | No |
| With Role Based Access Control (RBAC) | No |
| With logging of security events (security event log) | No |
| Frequency meter | Yes |
| With rotational speed meter | No |
| Ampere meter | Yes |
| Pulse counter | No |
| Voltmeter | Yes |
| Display | LED |
| Communication | |
| Web server with HTTPS transfer protocol | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for OPC UA PubSub | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for IEC 61850 Ethernet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for other bus systems | No |
| Electrical | |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | 230 V |
| Supply voltage AC 60 Hz | 230 V |
| Supply voltage DC | 230 V |
| Options | |
| Reactive power meter | No |
| Effective power measurement device | Yes |
| Remote display | No |
| Connection | |
| Number of Ethernet connections | 0 |
| Number of current measurement inputs | 1 |
| Number of voltage measurement inputs | 1 |
| Number of digital outputs | 1 |
| Number of digital inputs | 1 |
| Number of analogue outputs | 1 |
| Number of analogue inputs | 1 |
| Measurements | |
| Height | 44 mm |
| Width | 178 mm |
| Depth | 140 mm |
| Other | |
| Sampling frequency | 0 Hz |
| Measuring range for frequency | 50 Hz |
| Display resolution (vertical) | 0 px |
| Display resolution (horizontal) | 0 px |
| Protection | |
| Degree of protection (IP), front side | Other |
| Approval/certification | |
| Accuracy class reactive energy according to IEC 62053-23 | Other |
| Accuracy class active energy according to IEC 62053-22 | Other |
| Package 1 | |
| volume | 15018,3 cm3 |
| weight | 3,52 kg |
| length | 33 cm |
| width | 18,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304331445 |
