NetShelter SX 48U 600mm Wide x 1200mm Deep Enclosure with Sides Black -2000 lbs. Shock Packaging
Cod produs: AR3307SP
Descriere

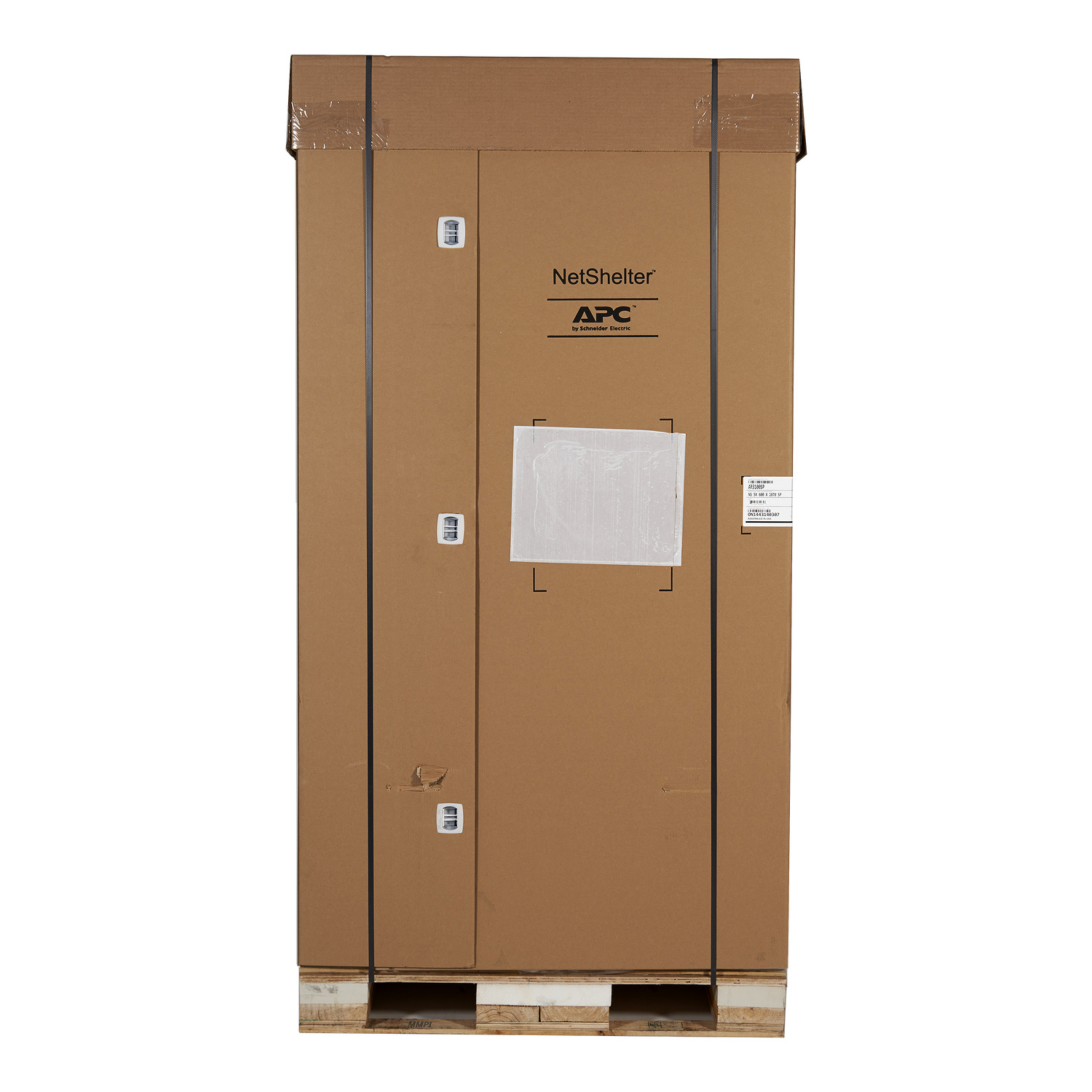

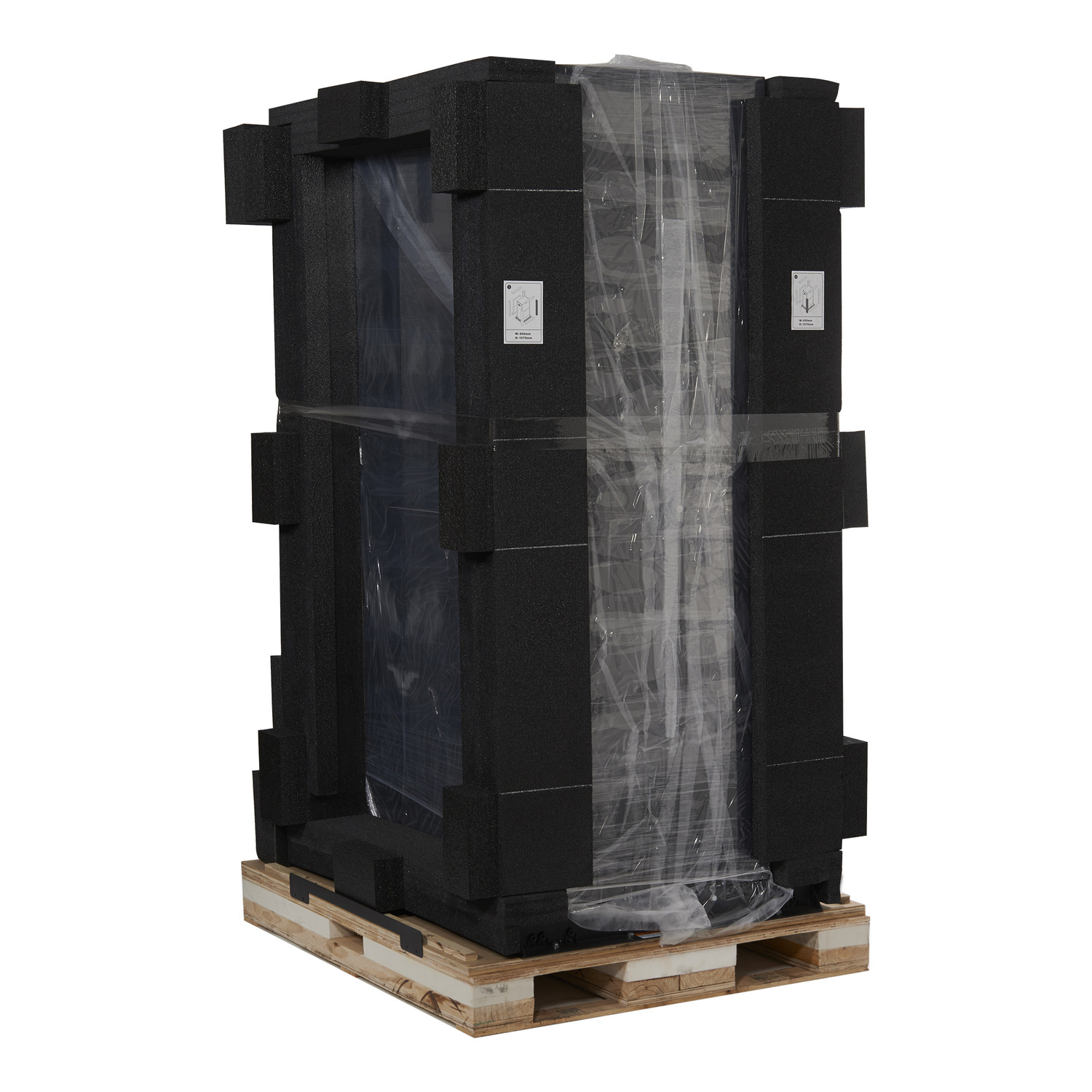

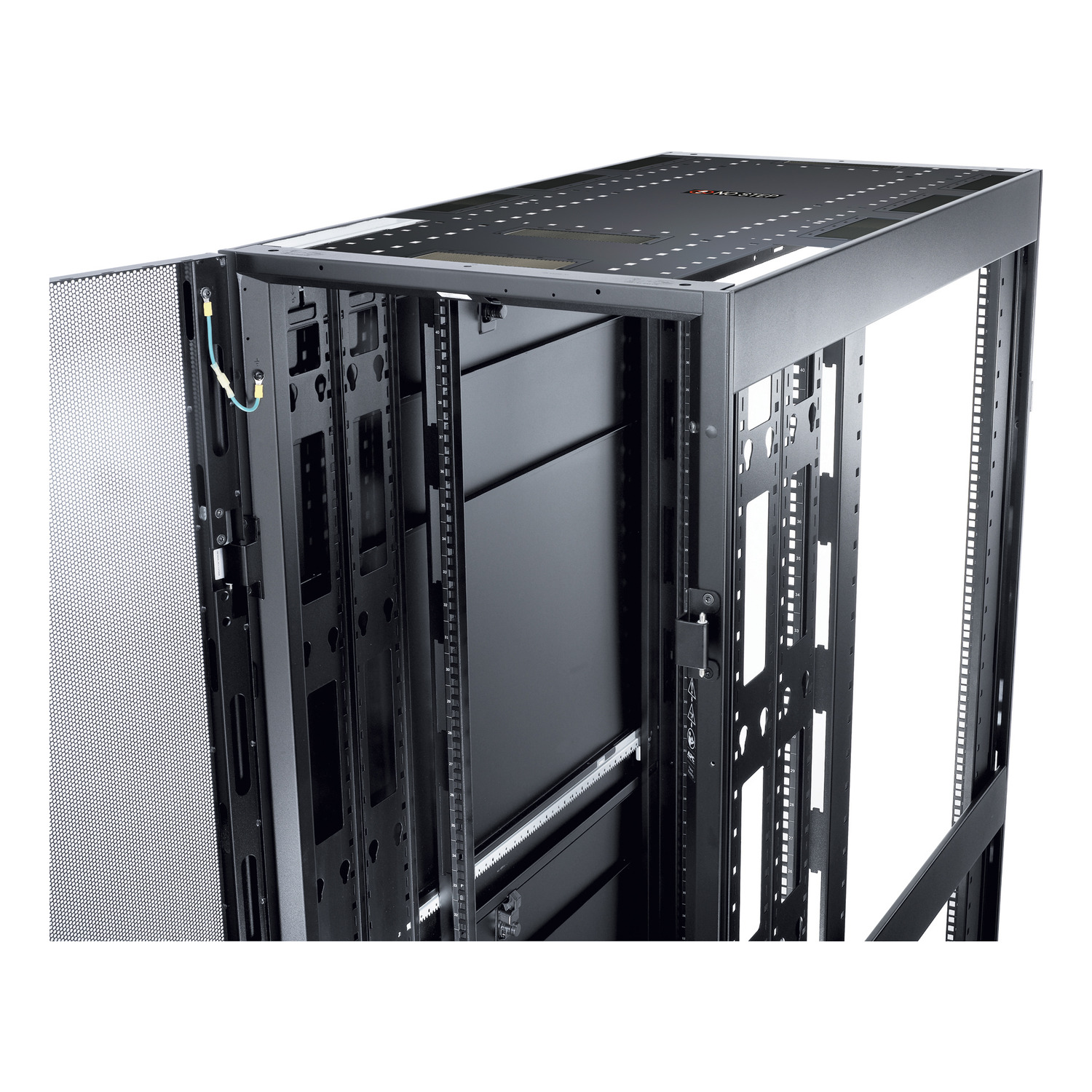

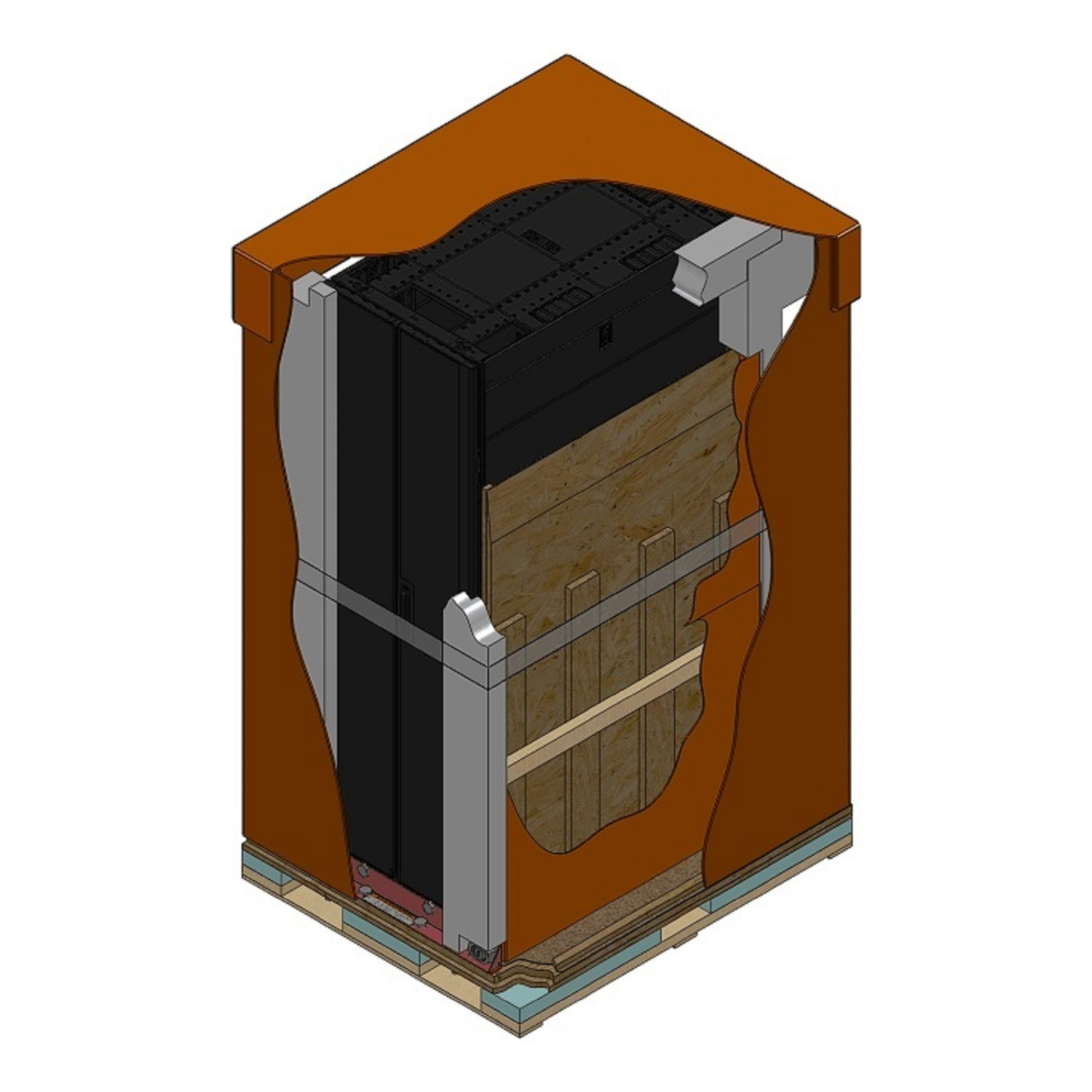

APC NetShelter SX, Server Rack Enclosure, 48U, Shock Packaging, 2000 lbs, Black, 2258H x 600W x 1200D mm
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Model/type | |
| Model | With permanent frame |
| With glazed door | No |
| With earthing | No |
| With front door | Yes |
| With roof plate | Yes |
| With base | No |
| Type of ventilation | None |
| Number of doors | 2 |
| Type of profile rail | None |
| With sidewall | Yes |
| With vertical cable management | No |
| With rear door | Yes |
| Rear door locking system | 1-point |
| Front door locking system | 1-point |
| Measurements | |
| Modular spacing | 482.6 mm (19 inch) |
| Height | 2258 mm |
| Width | 600 mm |
| Depth | 1200 mm |
| Number of height units | 48 |
| Operating conditions | |
| Max. load capacity | 1701 kg |
| Colour | |
| RAL-number | - |
| Colour | Black |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | 1 |
| Mounting/installation | |
| Demountable | Yes |
| Mounting level | None |
| Material | |
| Surface finishing | Powder coating |
| Material | Steel |
| Material rear door | Steel |
| Material front door | Steel |
| Package 1 | |
| volume | 3,578 m3 |
| weight | 272,61 kg |
| length | 110,5 cm |
| width | 132,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304309932 |
