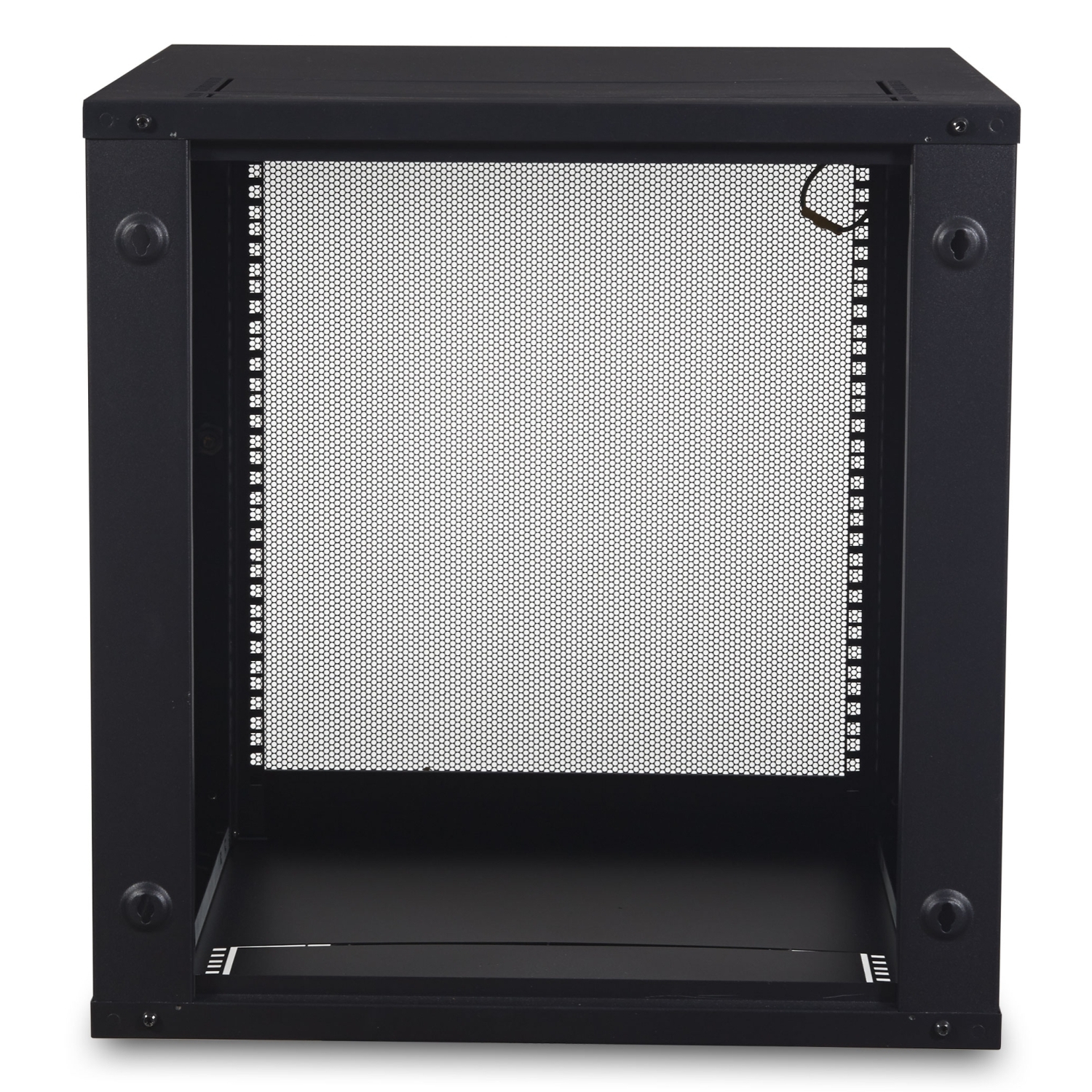

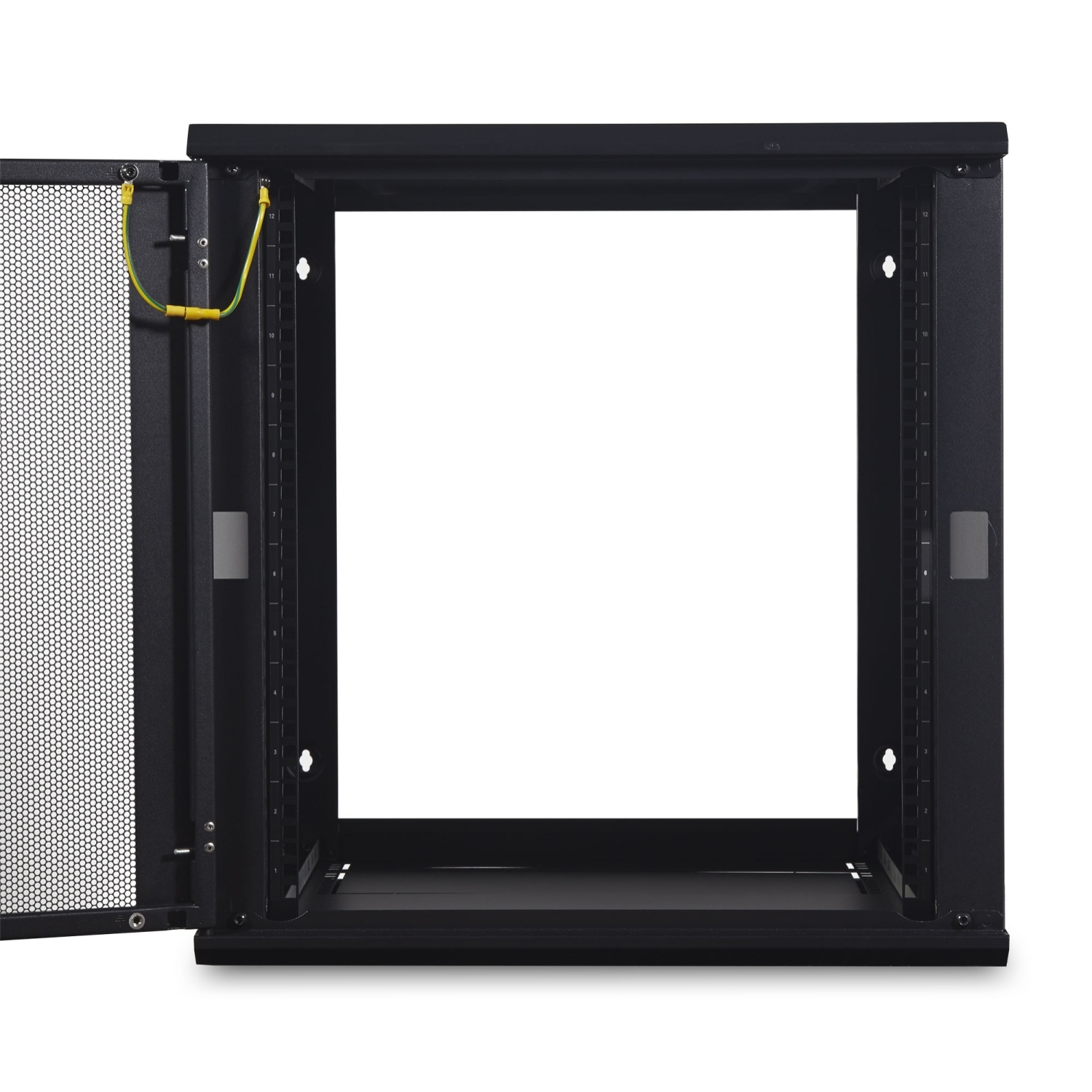

APC NetShelter 12U Wallmount Rack Cabinet Single Hinged Server Depth Unassembled
Documente
Fisa tehnica
Altele
Specificatii
| Model/type | |
| Model | Other |
| With glazed door | No |
| With earthing | - |
| With front door | Yes |
| With roof plate | Yes |
| With base | No |
| Type of ventilation | Passive |
| Number of doors | 1 |
| Type of profile rail | L-shape |
| With sidewall | Yes |
| With vertical cable management | No |
| With rear door | No |
| Rear door locking system | None |
| Front door locking system | 1-point |
| Measurements | |
| Modular spacing | Other |
| Height | 620 mm |
| Width | 600 mm |
| Depth | 600 mm |
| Number of height units | 12 |
| Operating conditions | |
| Max. load capacity | 90.72 kg |
| Colour | |
| RAL-number | - |
| Colour | Black |
| Protection | |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Mounting/installation | |
| Demountable | Yes |
| Mounting level | Front side |
| Material | |
| Surface finishing | Powder coating |
| Material | Steel |
| Material rear door | Steel |
| Material front door | Steel |
| Package 1 | |
| volume | 137,682 dm3 |
| weight | 23,13 kg |
| length | 68,8 cm |
| width | 68,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 731304317289 |
