Descriere

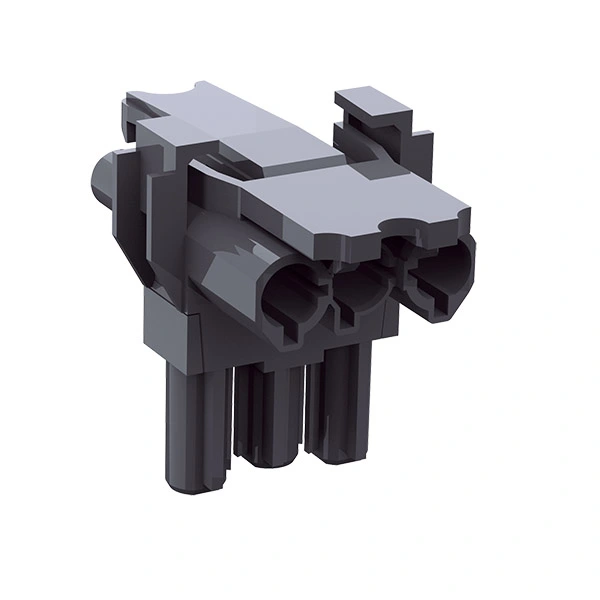

distribution block building installation connector Colou: Black with locking slide 1xInput building installation connector 2xOutput building installation connector packed in polybag Type: 92.030.1353.0
Documente
Fisa tehnica
Alte surse
Specificatii
| Electrical | |
| Rated voltage | 250 |
| Rated current | 20 |
| Number of poles | 3 |
| Rated surge voltage | 4 |
| Continuity resistance | - |
| Rated current to luminaire | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Number of inputs | 1 |
| Number of outputs | 2 |
| Other | |
| Pole codification | L, N, PE |
| Pollution degree | 2 |
| Fire load | - |
| Phase pickup | - |
| Options | |
| Mechanical coding | Yes |
| Colour | |
| Colour coding/contact insert | Black |
| Colour of the separate adaptor piece | - |
| RAL-number coding/contact insert | - |
| Model/type | |
| Type of locking | Integrated in plug-in connector |
| Type of distributor | T-distributor |
| Type of integrated switching | None |
| Material | |
| Halogen free | Yes |
| Housing material | Polyamide (PA) |
| Contact material | CuZn |
| Surface coating contacts | Silver-plated |
| Operating conditions | |
| Max. continuous temperature resistance contact part | 100 |
| Max. continuous temperature resistance strain relief | - |
| Measurements | |
| Length | 64.4 |
| Height | 15.5 |
| Width | 47.5 |
| Mounting/installation | |
| Mounting possibility | No |
| Package 1 | |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
