Descriere

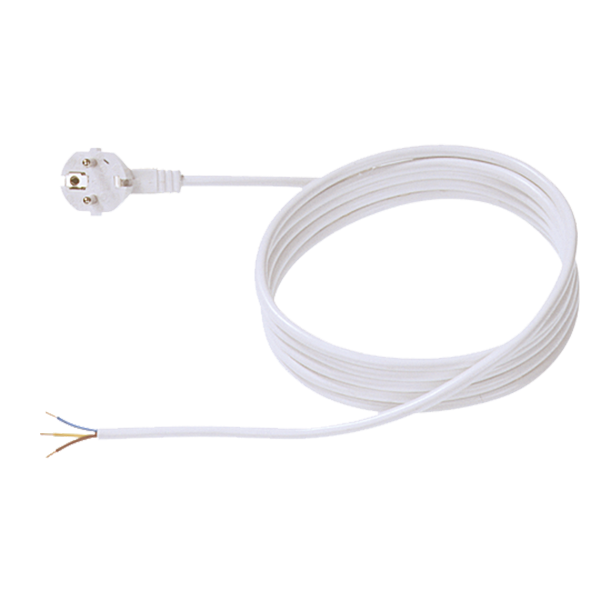

Cord set H05VV-F 3G1,5 Length: 2 m white First End: Plug type 30 D Second End: 30mm remove outer jacket lead ends terminate w. bootlace terminal
Documente
Specificatii
| Connection | |
| System-oriented connector system | No |
| Nominal cross section conductor | 1.5 |
| Connection type according to IEC 60320, connection 2 | - |
| Cable entry connection 1 | - |
| Cable entry connection 2 | - |
| Connection 2 | - |
| Connection type according to IEC 60320, connection 1 | - |
| Connection 1 | - |
| Model/type | |
| Number of cores | 3 |
| Spiralized cable | No |
| With protective conductor | Yes |
| With cord switch | No |
| Material | |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Operating conditions | |
| Temperature resistance | 70 |
| Electrical | |
| Nominal current | 16 |
| Nominal voltage | 230 |
| Other | |
| Frequency | 50 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Oil resistant according to EN IEC 60811-404 | No |
| Reaction-to-fire according to EN 13501-6: Class | - |
| Reaction-to-fire according to EN 13501-6: Smoke production | - |
| Reaction-to-fire according to EN 13501-6: Acidity | - |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | - |
| Measurements | |
| Outer diameter approximate | 7 |
| Length | 2 |
| Colour | |
| Colour outer sheath | White |
| Package 1 | |
| weight | 0,252 |
| length | 0,18 |
| width | 0,05 |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| Package 2 | |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| Package 3 | |
| qmax | 1100 |
| qmin | 1100 |
| um | PF |
| Dimensions of product | |
| Length | 2,000 |
