Descriere

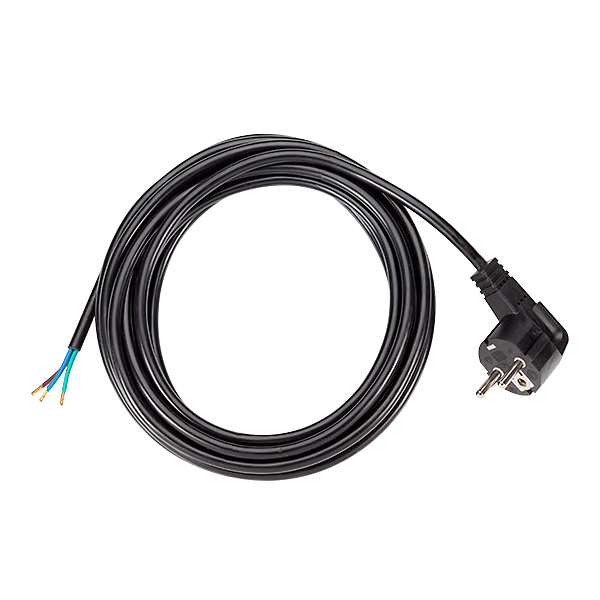

Extension cable H05VV-F 3G 1,0mm² 16A/ 250V~ Length: 3,0m Colour: Black Side 1: CEE7/7 plug moulded with double safety contact system Side 2: Wire end ferrules 30mm stripped unpacked
Documente
Specificatii
| Connection | |
| System-oriented connector system | No |
| Nominal cross section conductor | 1.0 |
| Connection type according to IEC 60320, connection 2 | - |
| Cable entry connection 1 | - |
| Cable entry connection 2 | - |
| Connection 2 | - |
| Connection type according to IEC 60320, connection 1 | - |
| Connection 1 | - |
| Model/type | |
| Number of cores | 3 |
| Spiralized cable | No |
| With cord switch | No |
| With protective conductor | No |
| Measurements | |
| Length | 3 |
| Outer diameter approximate | 7 |
| Material | |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Operating conditions | |
| Temperature resistance | 70 |
| Electrical | |
| Nominal current | 16 |
| Nominal voltage | 230 |
| Other | |
| Frequency | 50 |
| Colour | |
| Colour outer sheath | Black |
| Protection | |
| Degree of protection (IP) | IP20 |
| Oil resistant according to EN IEC 60811-404 | No |
| Reaction-to-fire according to EN 13501-6: Class | - |
| Reaction-to-fire according to EN 13501-6: Smoke production | - |
| Reaction-to-fire according to EN 13501-6: Acidity | - |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | - |
| Package 1 | |
| weight | 0,268 |
| length | 0,17 |
| width | 0,04 |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| Package 2 | |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| Package 3 | |
| qmax | 900 |
| qmin | 900 |
| um | PF |
| Dimensions of product | |
| Length | 3,000 |
