Descriere

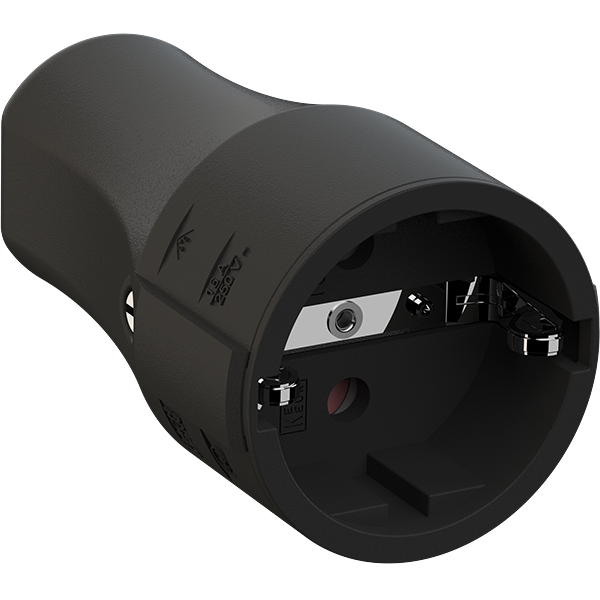

Mountable coupling, black, CEE 7/3, 2-pole with earthing contact, rewirable, 16A/250V
Documente
Specificatii
| Material | |
| Material | Plastic |
| Material quality | Polyvinyl chloride (PVC) |
| Halogen free | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| NEMA designation | - |
| Degree of protection (NEMA) | - |
| Other | |
| Insert direction | Straight |
| Connection | |
| Connection system | Screwed terminal |
| Colour | |
| Colour | Black |
| RAL-number | 9005 |
| Electrical | |
| Number of poles | 2 |
| Nominal voltage | 250 |
| Nominal current | 16 |
| With voltage indication | - |
| Model/type | |
| With quick-lock | - |
| Model | - |
| Application | |
| Suitable for protective contact pin | - |
| Approval/certification | |
| For heavy conditions according to VDE | - |
| Package 1 | |
| weight | 0,059 |
| length | 0,09 |
| width | 0,05 |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| Package 2 | |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| Package 3 | |
| qmax | 2400 |
| qmin | 2400 |
| um | PF |
