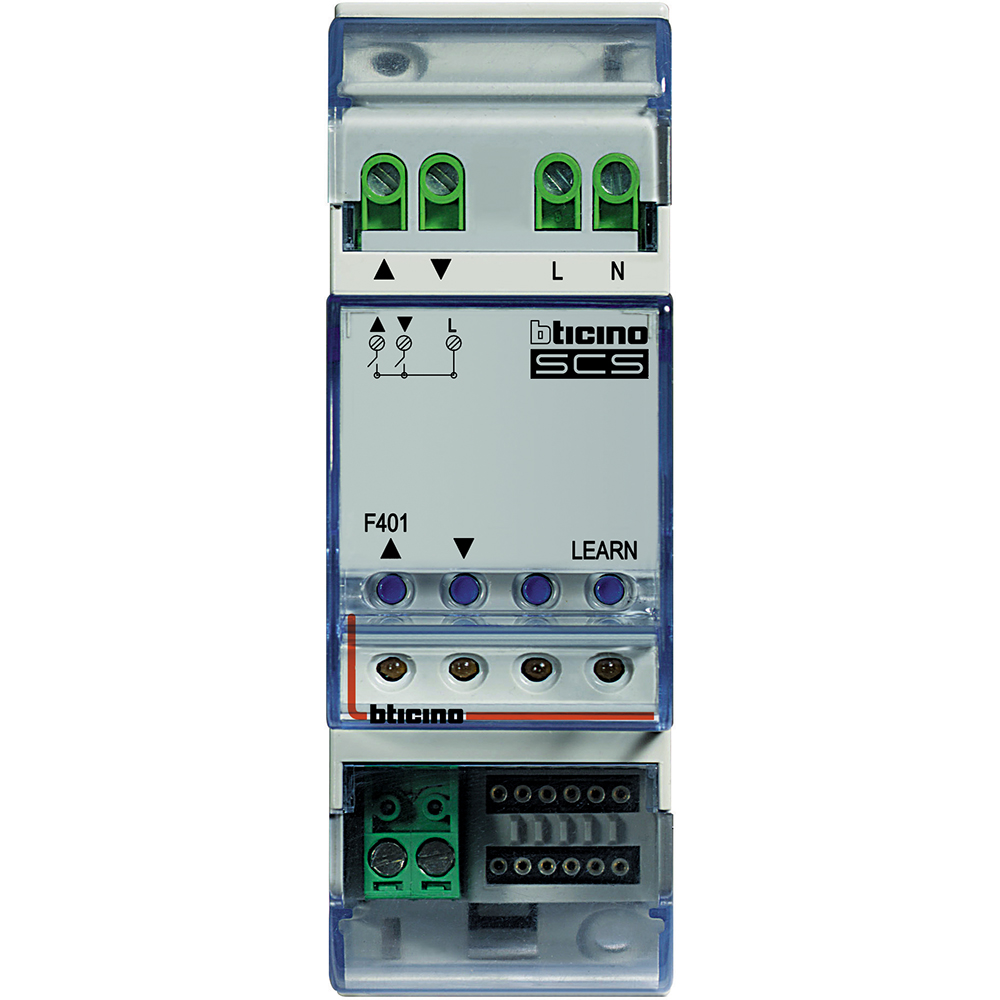

SHUTTER ACTUATOR DIN 1 MOTOR BUS
Documente
Fisa tehnica
Instructiuni
Specificatii
| Model/type | |
| With LED indication | Yes |
| With room temperature controller | No |
| With IR sensor | No |
| With display | No |
| With label area | No |
| With anti-theft/dismantling protection | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Material | |
| Material | Plastic |
| Surface finishing | - |
| Material quality | Thermoplastic |
| Surface protection | Other |
| Communication | |
| Bus system LON | No |
| Bus system KNX | No |
| Bus system KNX Secure | - |
| Bus system KNX Secure-RF (Radio Frequency) | - |
| Bus system Powernet | No |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Other bus systems | Other |
| Mounting/installation | |
| Mounting method | DRA (DIN-rail adaptor) |
| Colour | |
| Transparent | No |
| RAL-number (similar) | 9011 |
| Colour | White |
| Setting/control | |
| Number of actuation points | 1 |
| Number of buttons | 3 |
| Measurements | |
| Min. depth of built-in installation box | 55 |
| Connection | |
| With bus connection | Yes |
| Options | |
| Radio frequency bidirectional | No |
| Electrical | |
| Power consumption | - |
| Package 1 | |
| volume | 0,000473 |
| weight | 0,101 |
| length | 0,06 |
| width | 0,073 |
| qmax | 1 |
| qmin | 1 |
| um | BX |
| gtin | 8005543469699 |
| Package 2 | |
| volume | 0,025778 |
| weight | 4,859 |
| length | 0,125 |
| width | 0,365 |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| Package 3 | |
| volume | 0,492 |
| weight | 48,59 |
| length | 0,41 |
| width | 1,2 |
| qmax | 500 |
| qmin | 500 |
| um | PF |
| Dimensions of product | |
| Length | 0,105 |
| Width | 0,036 |
| Depth | 0,031 |
