Descriere

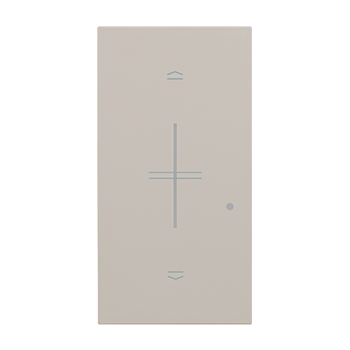

L.NOW - Cover shutter wireless sand
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Measurements | |
| Height | 86 |
| Depth | 7 |
| Width | 45 |
| Colour | |
| RAL-number (similar) | 1015 |
| Colour | Beige |
| Model/type | |
| Model | One-part rocker |
| With exchangeable lens/symbol | No |
| With label area | No |
| Application | |
| Suitable for touch sensor connector for bus system | No |
| Utilization | Venetian blind |
| Material | |
| Material | Plastic |
| Surface finishing | Matt |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Options | |
| Monitoring window/light outlet | Yes |
| Scannable symbol/barrier free | No |
| Anti-bacterial treatment | No |
| Mounting/installation | |
| Type of fastening | Engage (snap) |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Other | |
| Impact strength | IK04 |
| Imprint/indication | Symbol "arrows" |
| Package 1 | |
| volume | 0,000507 |
| weight | 0,075 |
| length | 0,06 |
| width | 0,065 |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 8005543619742 |
| Package 2 | |
| volume | 0,025778 |
| weight | 3,4 |
| length | 0,125 |
| width | 0,365 |
| qmax | 200 |
| qmin | 200 |
| um | CT |
| Package 3 | |
| volume | 0,516 |
| weight | 34 |
| length | 0,43 |
| width | 1,2 |
| qmax | 2000 |
| qmin | 2000 |
| um | PF |
| Dimensions of product | |
| Length | 0,086 |
| Width | 0,045 |
| Depth | 0,007 |
