Descriere

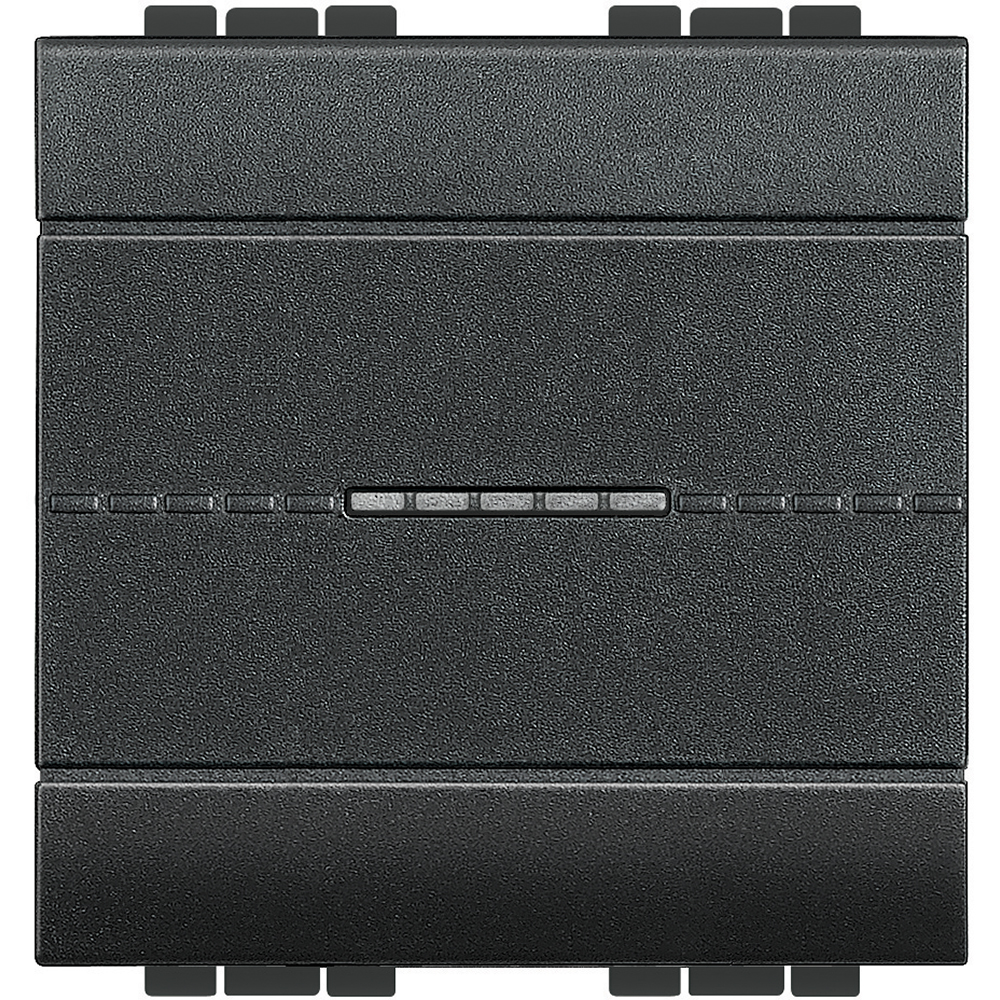

LL - INTERMED. AX SWITCH 16A 2M ANTHRACITE
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Model/type | |
| Label space/information surface | No |
| Number of modules (module system) | - |
| Heating switch | No |
| Type of lighting | Other |
| Washing machine switch | No |
| Lighting | No |
| Assembly arrangement | Modular device for domestic switching devices |
| Number of rockers | 1 |
| Material | |
| Material | Plastic |
| Surface finishing | Matt |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Connection | |
| Connection type | Screwed terminal |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Type of fastening | Other |
| With mounting plate | No |
| Other | |
| Wiring system | Intermediate switch |
| Imprint/indication | - |
| Function lighting | Other |
| Impact strength | - |
| Electrical | |
| Nominal voltage | 250 |
| Switching current for fluorescent lamps | 16 |
| Rated current | 16 |
| Options | |
| Push button switch | No |
| Anti-bacterial treatment | No |
| IFTTT support available | No |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No |
| Monitoring contact | No |
| Colour | |
| Colour of switch operator | Anthracite |
| RAL-number (similar) | 7016 |
| Colour | Anthracite |
| Measurements | |
| Min. depth of built-in installation box | 43 |
| Built-in depth | 33 |
| Device diameter | - |
| Device depth | 44 |
| Device width | 44 |
| Device height | 44 |
| Approval/certification | |
| Compliant with UK Building Regulations Part M | - |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Setting/control | |
| Method of operation | Rocker/button |
| Package 1 | |
| volume | 0,001634 |
| weight | 0,315 |
| length | 0,055 |
| width | 0,108 |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 8005543419519 |
| Package 2 | |
| volume | 0,025778 |
| weight | 3,8 |
| length | 0,125 |
| width | 0,365 |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| Package 3 | |
| volume | 0,516 |
| weight | 38 |
| length | 0,43 |
| width | 1,2 |
| qmax | 1200 |
| qmin | 1200 |
| um | PF |
| Dimensions of product | |
| Length | 0,044 |
| Width | 0,044 |
| Depth | 0,044 |
