Descriere

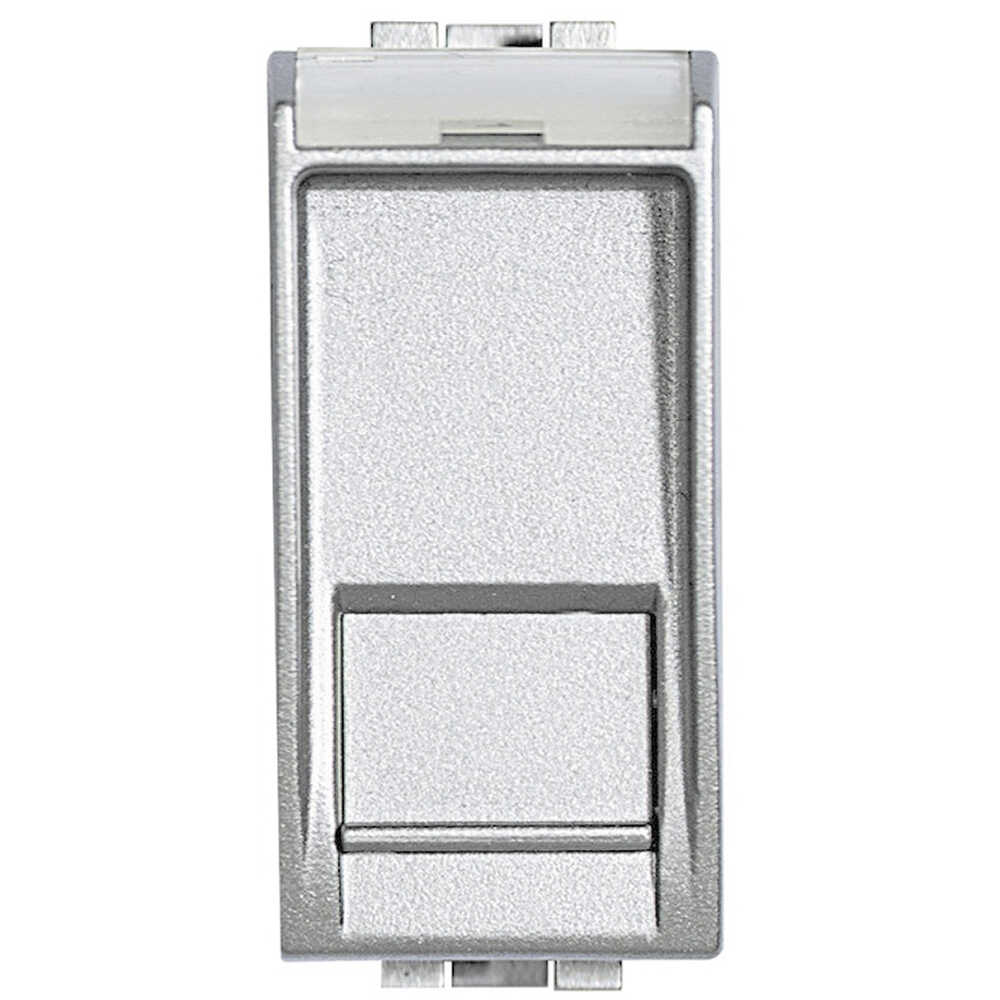

RJ45 socket LivingLight category 5 FTP 1 module tech
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Mounting/installation | |
| Duct installation | No |
| Type of fastening | Engage (snap) |
| Floor box/subfloor mounted | No |
| Surface mounting | No |
| Flush-mounted installation | Yes |
| Model/type | |
| With dust cover | Yes |
| With label space | Yes |
| Number of modules (module system) | 1 |
| With terminal resistor | - |
| Mounting method shielding connection | - |
| With buses/couplings | - |
| Assembly arrangement | Basic element with central cover plate |
| Colour | |
| Colour coding | Yes |
| RAL-number | - |
| Colour | Aluminium |
| Protection | |
| Degree of protection (IP) | IP21 |
| Options | |
| Shielded buses | - |
| Shielded housing | - |
| Mechanical coding | No |
| Separate strain relief | No |
| Compatible with third-party covers | - |
| Connection | |
| Separate earthing connection | No |
| Connection type | Other |
| Type of connector | RJ45 8(8) |
| Suitable for number of connectors | 1 |
| Measurements | |
| Device depth | 37 |
| Device width | 22 |
| Device height | 44 |
| Other | |
| Category | 5E |
| Outlet direction | Straight |
| Package 1 | |
| volume | 0,000982 |
| weight | 0,124 |
| length | 0,045 |
| width | 0,118 |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 8012199976983 |
| Package 2 | |
| volume | 0,025778 |
| weight | 3,132 |
| length | 0,125 |
| width | 0,365 |
| qmax | 180 |
| qmin | 180 |
| um | CT |
| Package 3 | |
| volume | 0,516 |
| weight | 31,32 |
| length | 0,43 |
| width | 1,2 |
| qmax | 1800 |
| qmin | 1800 |
| um | PF |
| Dimensions of product | |
| Length | 0,044 |
| Width | 0,022 |
| Depth | 0,037 |
