Descriere

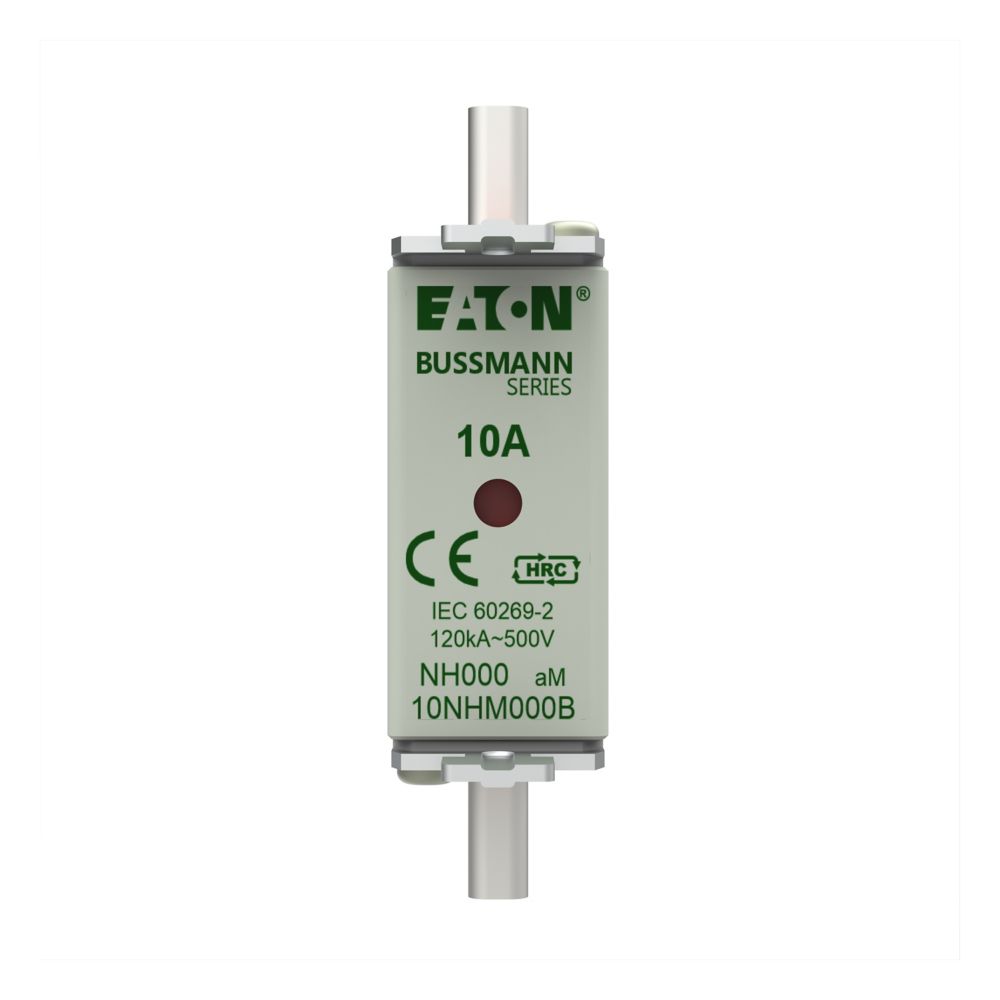

Fuse, Fuse-link, low voltage, 10 A, AC 500 V, NH000, aM, IEC, dual indicator, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA
Documente
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH000 |
| Voltage type | AC |
| Rated current | 10 |
| Rated voltage AC | 500 |
| Rated voltage DC | - |
| Power loss at rated current | 0.5 |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Other | |
| Utilization category according to IEC 60269 | aM |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| volume | 0,00008461 |
| weight | 0,196667 |
| length | 0,081 |
| width | 0,023 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590428934 |
| Package 2 | |
| volume | 0,00036254 |
| weight | 0,59 |
| length | 0,083 |
| width | 0,078 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590328500 |
| Package 3 | |
| volume | 0,010584 |
| weight | 11,46 |
| length | 0,42 |
| width | 0,18 |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 5027590341608 |
| Dimensions of product | |
| Volume | 0,00008461 |
| Weight | 0,197 |
| Length | 0,079 |
| Width | 0,021 |
| Depth | 0,051 |
