125NHG00B-690

Cod produs: 125NHG00B-690

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590429917

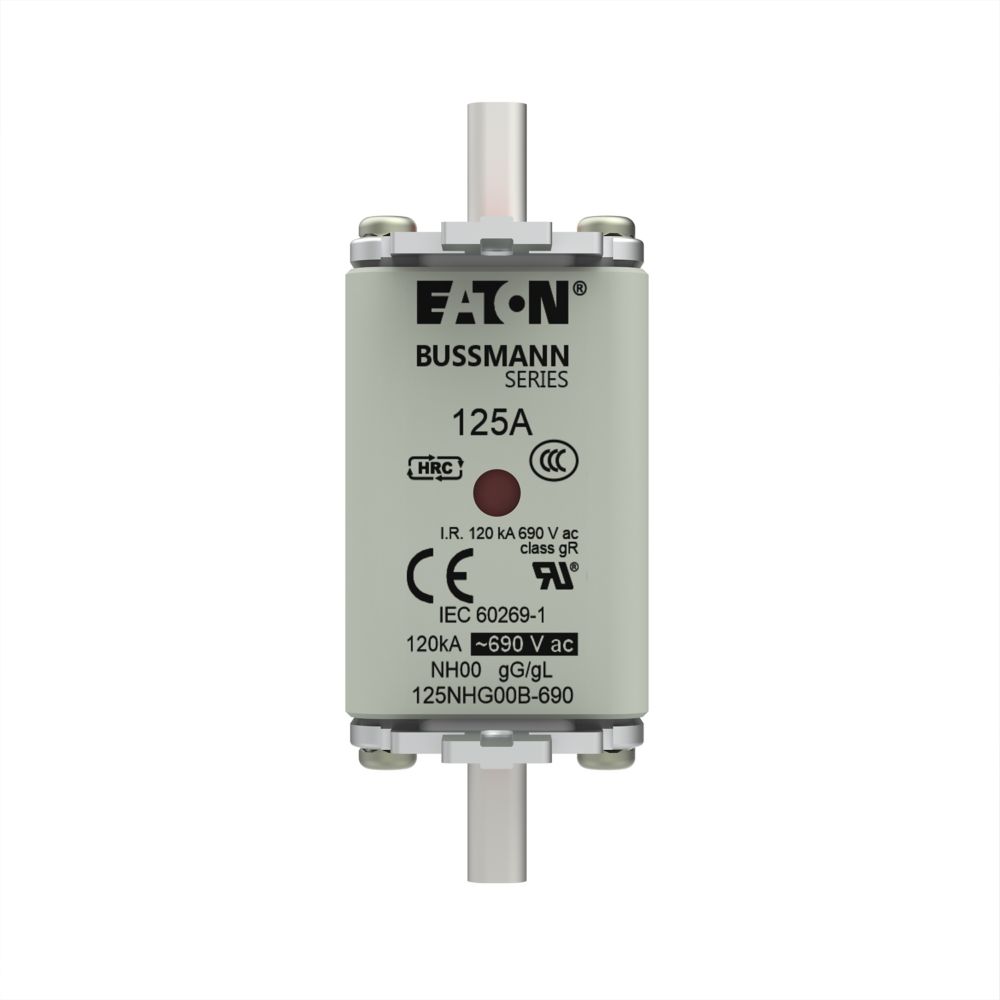

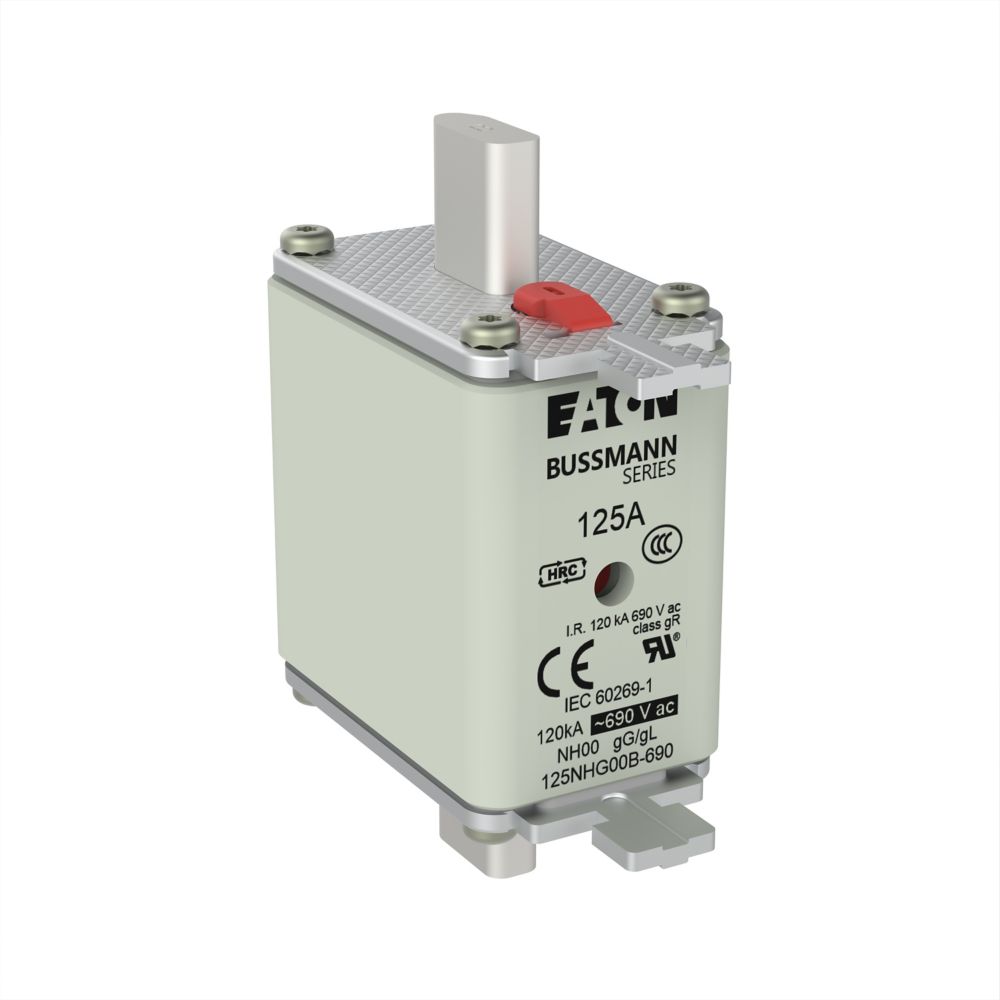

NH FUSE 125AMP 690V gG SIZE 00

Electrical
Fuse construction type according to IEC 60269	NH00
Voltage type	AC
Rated current	125
Rated voltage AC	690
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,00013746
weight	0,216333
length	0,081
width	0,032
qmax	1
qmin	1
um	CS
gtin	5027590429917
Package 2
volume	0,00051408
weight	0,649
length	0,102
width	0,08
qmax	3
qmin	3
um	CT
gtin	5027590278126
Package 3
volume	0,016555
weight	14,64
length	0,35
width	0,22
qmax	72
qmin	72
um	CT
gtin	5027590341639
Dimensions of product
Volume	0,00013746
Weight	0,216333
Length	0,079
Width	0,03
Depth	0,058

Afiseaza mai multe specificatii
