125NHG00B

Cod produs: 125NHG00B

Autentificati-va pentru a vedea pretul.

Producator: Eaton

Set: 1 bucati

5027590429894

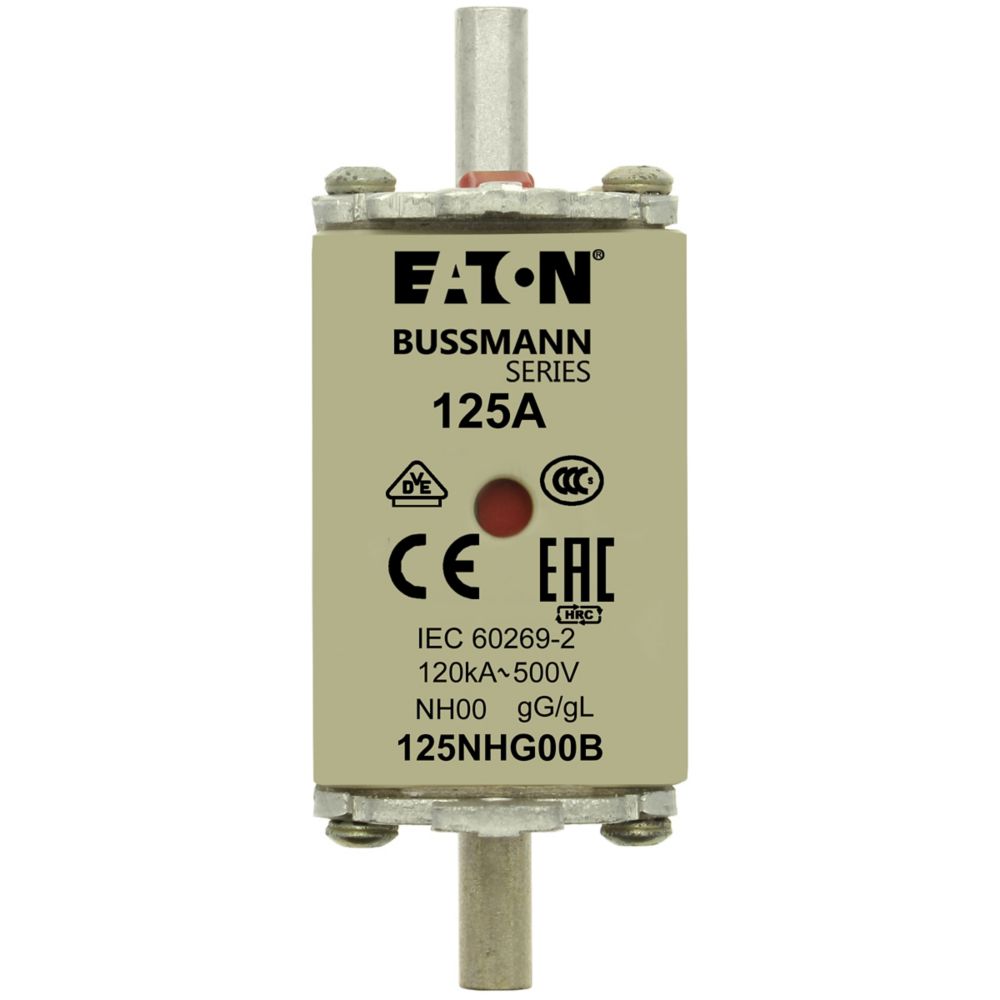

NH FUSE 125A 500V GG/GL SIZE 00

Electrical
Fuse construction type according to IEC 60269	NH00
Voltage type	AC
Rated current	125
Rated voltage AC	500
Rated voltage DC	-
Power loss at rated current	-
Performance
Rated switching capacity AC	-
Rated switching capacity DC	-
Other
Utilization category according to IEC 60269	gG
Model/type
Type of fuse status indicator	Combination fuse status indicator
Options
Insulated metal gripping lugs (IMGL)	No
Package 1
volume	0,00013746
weight	0,196667
length	0,081
width	0,032
qmax	1
qmin	1
um	CS
gtin	5027590429894
Package 2
volume	0,00051408
weight	0,59
length	0,102
width	0,08
qmax	3
qmin	3
um	CT
gtin	5027590408936
Package 3
volume	0,016555
weight	14,64
length	0,35
width	0,22
qmax	72
qmin	72
um	CT
gtin	5027590363471
Dimensions of product
Volume	0,00013746
Weight	0,182
Length	0,079
Width	0,03
Depth	0,058
