Descriere

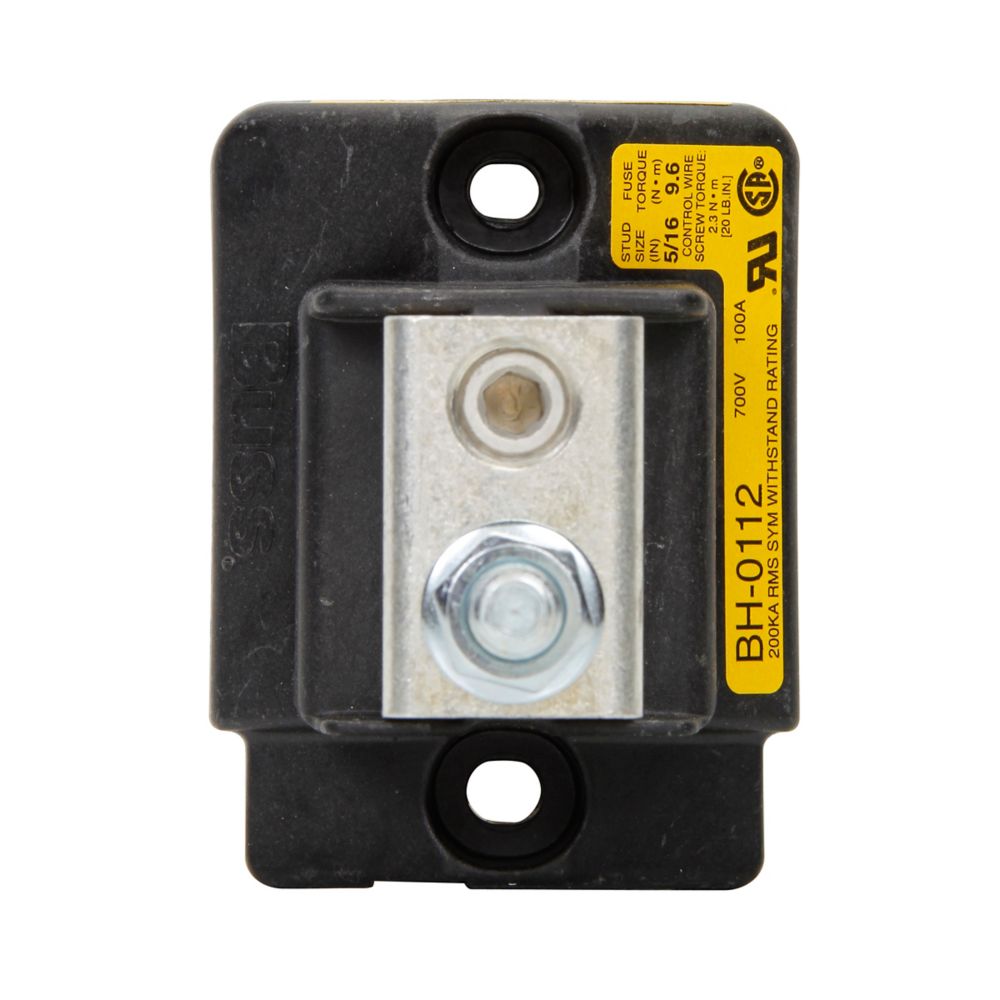

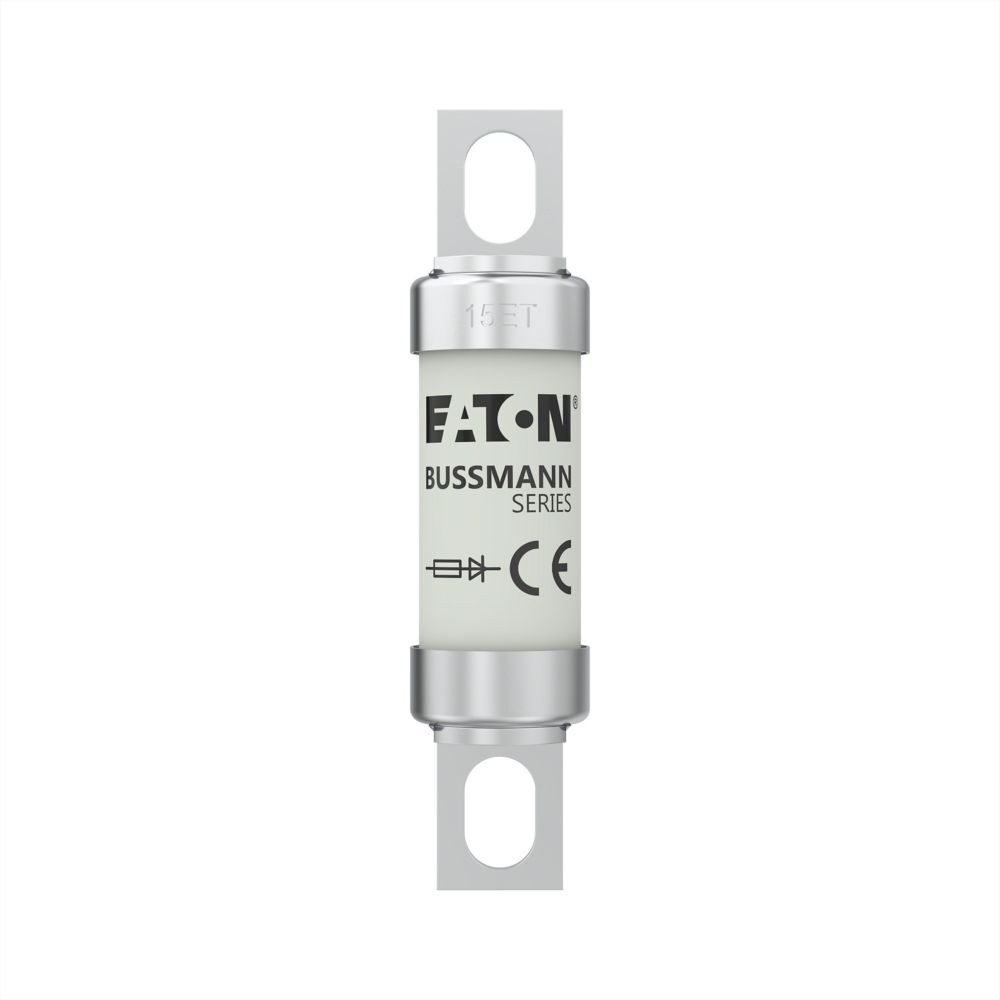

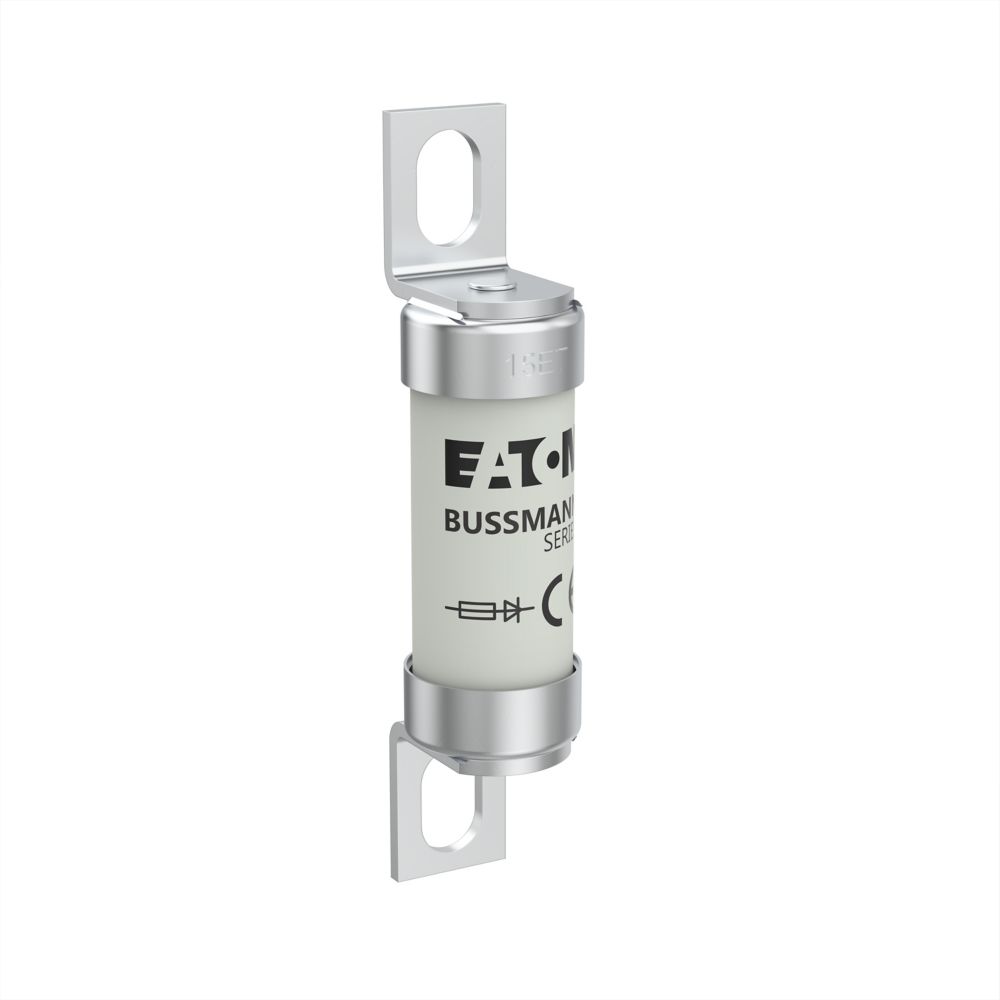

Fuse, Fuse-link, high speed, 15 A, AC 690 V, DC 500 V, BS88, 19 x 77 mm, aR, BS, offset bolted tags, protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters, BS88-4, IEC 60269-4, Breaking Capacity 200 kA, Optional accessories fuse-holder BH-0111
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 690 |
| Rated voltage DC | 500 |
| Rated current | 15 |
| Breaking capacity | 200 |
| Power loss at rated current | 4.6 |
| Model/type | |
| Type of current | AC/DC |
| Colour code | None |
| Type of fuse status indicator | None |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M6 |
| Connection | |
| Centre-to-centre distance of connections | 62 |
| Package 1 | |
| volume | 0,0000304 |
| weight | 0,0404 |
| length | 0,078 |
| width | 0,022 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590435000 |
| Package 2 | |
| volume | 0,00029102 |
| weight | 0,404 |
| length | 0,082 |
| width | 0,091 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590033176 |
| Package 3 | |
| volume | 0,018865 |
| weight | 20,456 |
| length | 0,385 |
| width | 0,28 |
| qmax | 480 |
| qmin | 480 |
| um | CT |
| gtin | 5027590353892 |
| Dimensions of product | |
| Volume | 0,0000304 |
| Weight | 0,0404 |
| Length | 0,076 |
| Width | 0,02 |
| Depth | 0,02 |
