Descriere

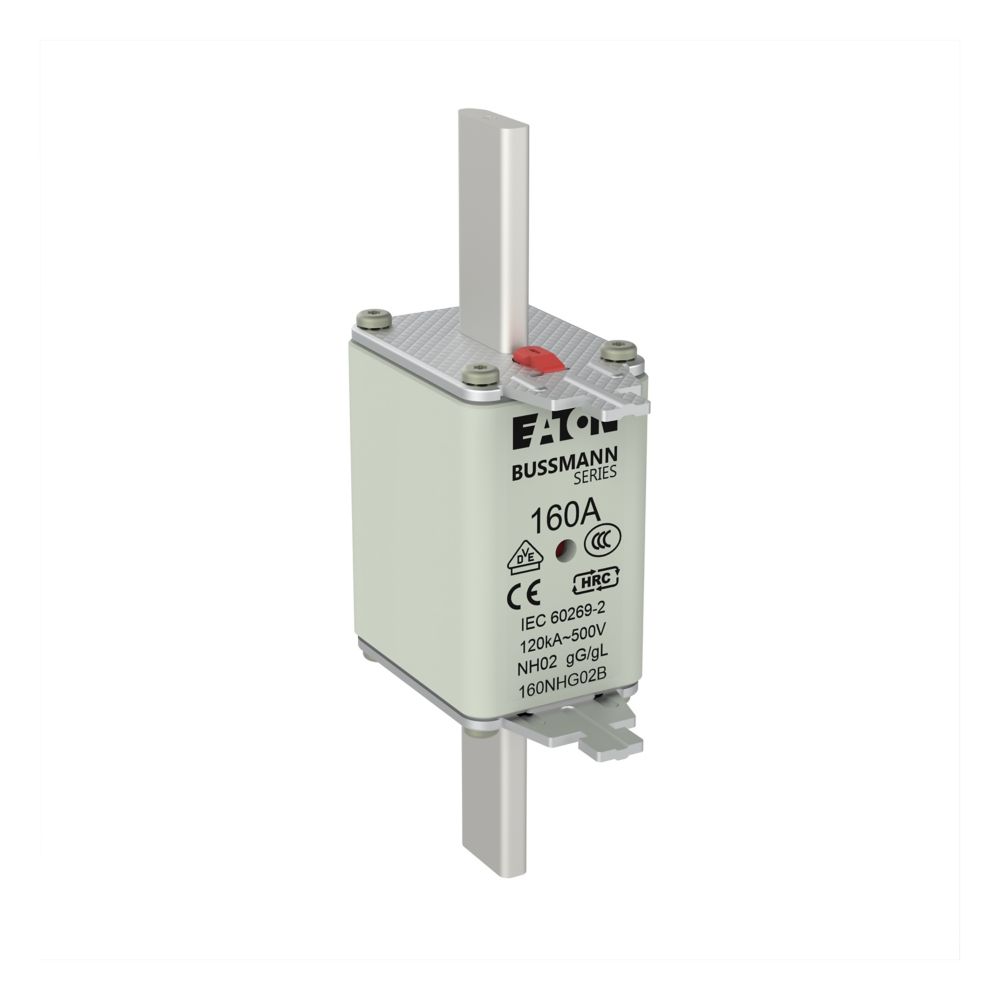

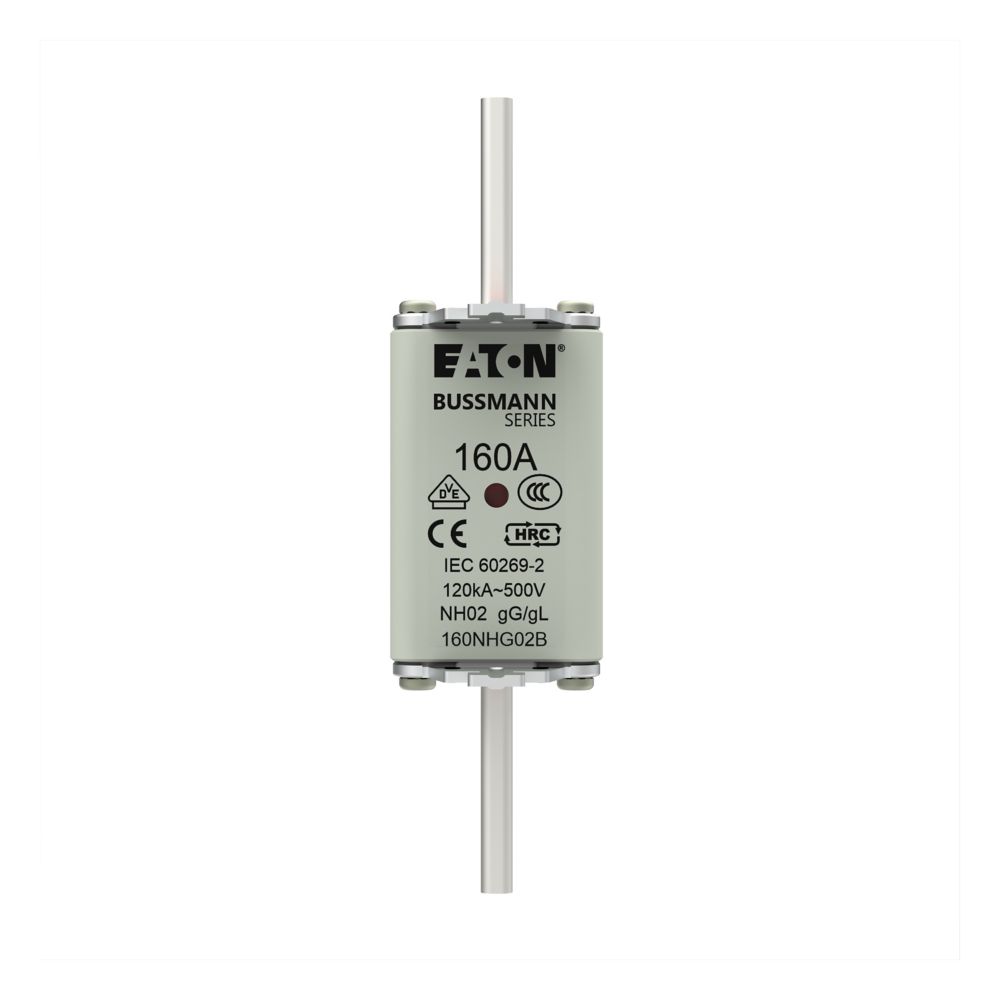

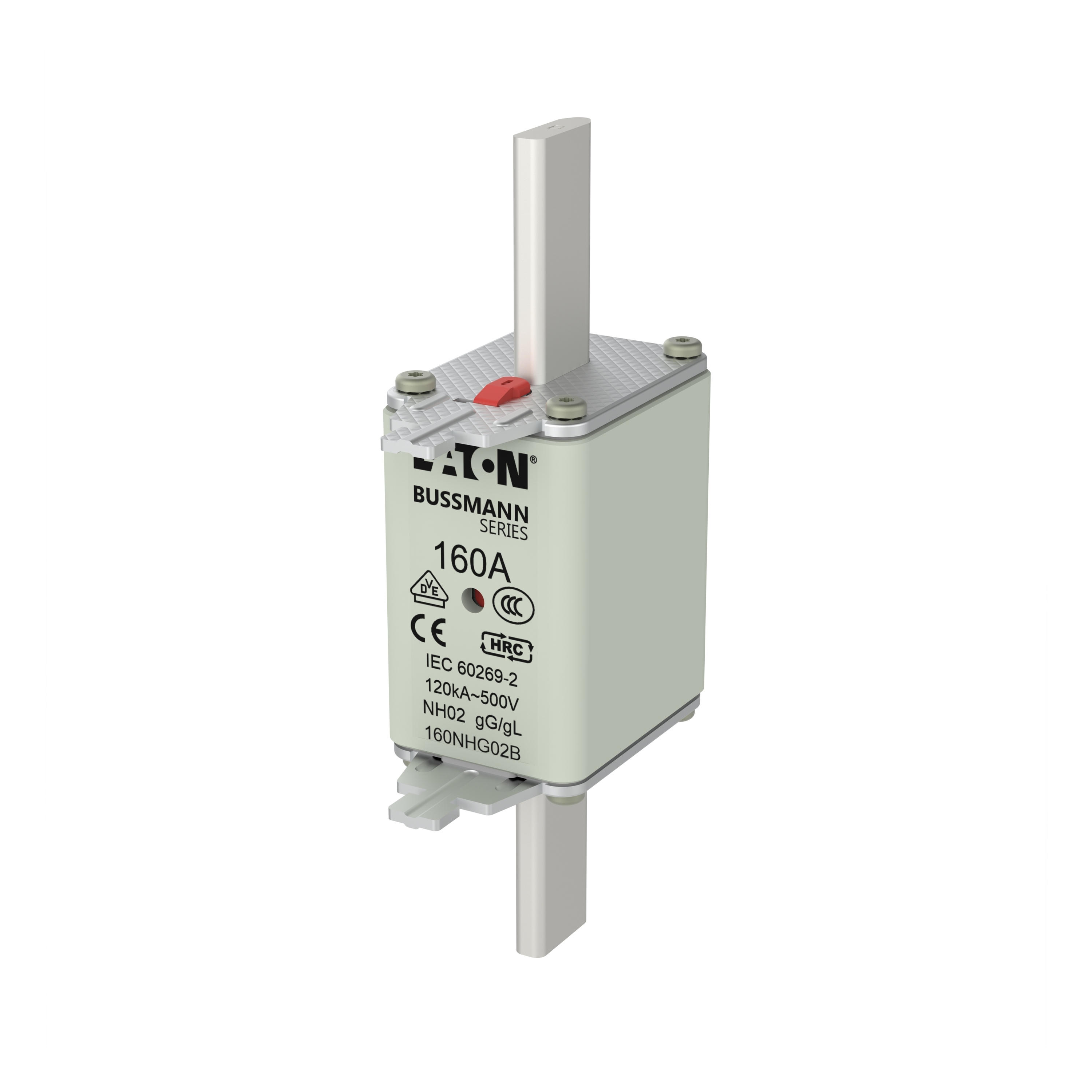

Fuse, Fuse-link, low voltage, 160 A, AC 500 V, NH02, gL/gG, IEC, dual indicator, square body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA, Optional accessories fuse-holder SD2-D
Documente
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH02 |
| Voltage type | AC |
| Rated current | 160 |
| Rated voltage AC | 500 |
| Rated voltage DC | - |
| Power loss at rated current | 12 |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | No |
| Package 1 | |
| volume | 0,000378 |
| weight | 0,423667 |
| length | 0,152 |
| width | 0,042 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590437318 |
| Package 2 | |
| volume | 0,00152486 |
| weight | 1,271 |
| length | 0,152 |
| width | 0,132 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590191265 |
| Package 3 | |
| volume | 0,02352 |
| weight | 16,125 |
| length | 0,42 |
| width | 0,32 |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 5027590363549 |
| Dimensions of product | |
| Volume | 0,000378 |
| Weight | 0,392333 |
| Length | 0,15 |
| Width | 0,04 |
| Depth | 0,063 |
