Descriere

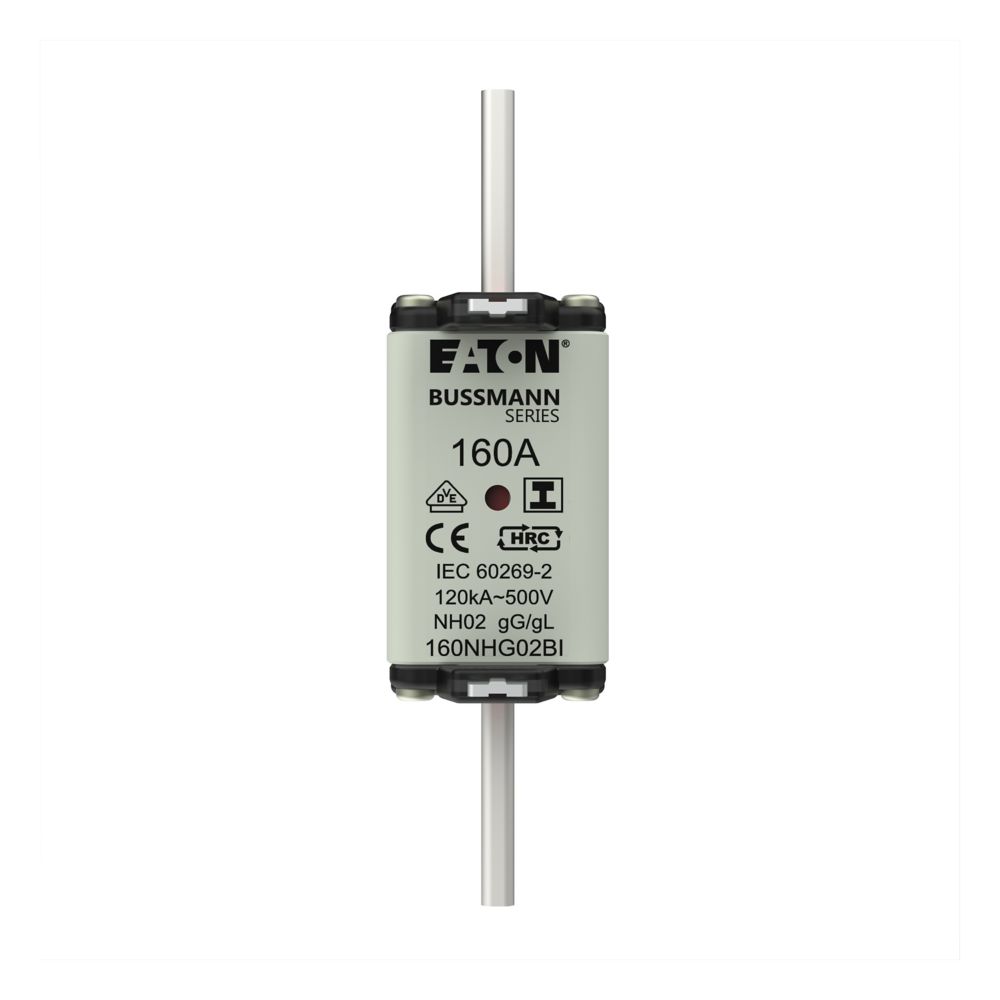

Fuse, Fuse-link, low voltage, 160 A, AC 500 V, NH02, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA
Documente
Specificatii
| Electrical | |
| Fuse construction type according to IEC 60269 | NH02 |
| Voltage type | AC |
| Rated current | 160 |
| Rated voltage AC | 500 |
| Rated voltage DC | - |
| Power loss at rated current | 12 |
| Performance | |
| Rated switching capacity AC | 120 |
| Rated switching capacity DC | - |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Model/type | |
| Type of fuse status indicator | Combination fuse status indicator |
| Options | |
| Insulated metal gripping lugs (IMGL) | Yes |
| Package 1 | |
| volume | 0,00036855 |
| weight | 0,443 |
| length | 0,152 |
| width | 0,041 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590437332 |
| Package 2 | |
| volume | 0,00152486 |
| weight | 1,329 |
| length | 0,152 |
| width | 0,132 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5027590146067 |
| Package 3 | |
| volume | 0,01919365 |
| weight | 15,199 |
| length | 0,365 |
| width | 0,32 |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 5027590341998 |
| Dimensions of product | |
| Volume | 0,00036855 |
| Weight | 0,443 |
| Length | 0,15 |
| Width | 0,039 |
| Depth | 0,063 |
