Descriere

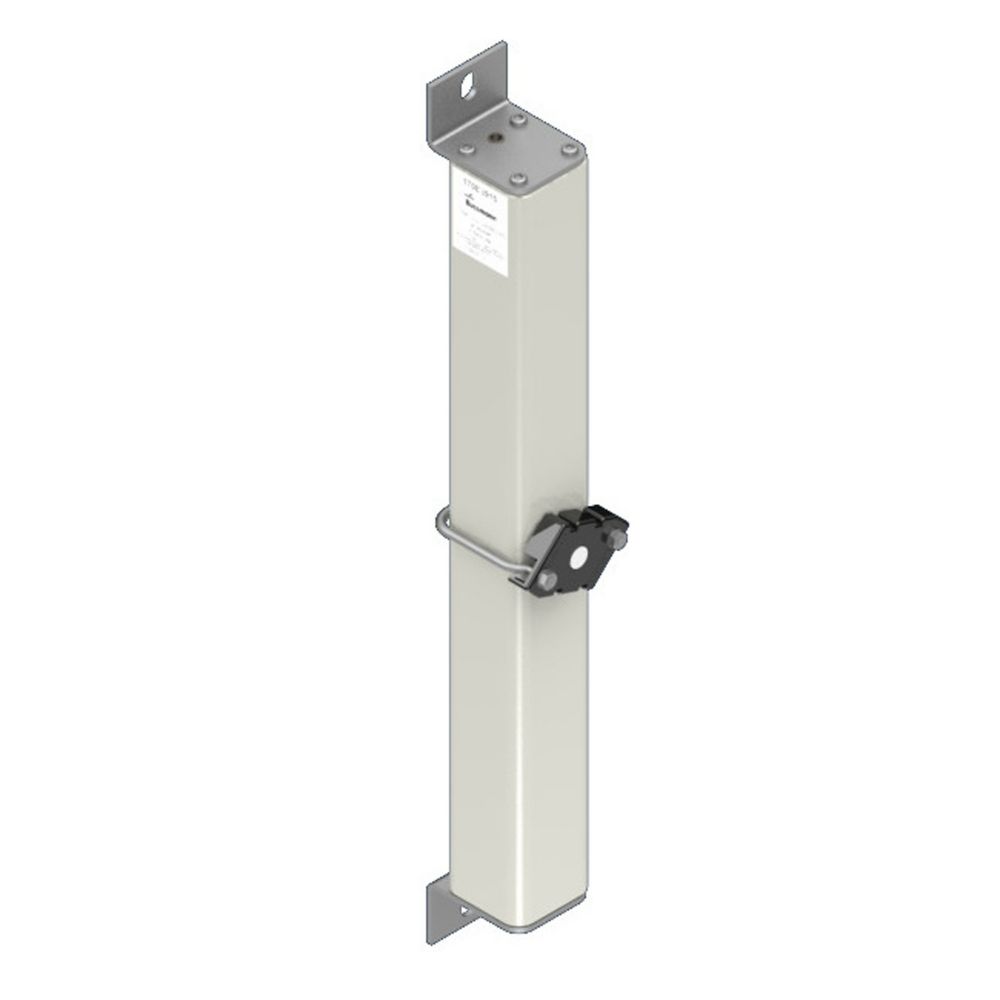

Fuse, Fuse-link, high speed, 40 A, DC 4000 V, compact size 1, 57 x 70 x 414 mm, aR, IEC, with indicator, square body with offset bolted tags, indicator style K for microswitch, traction, Breaking Capacity 60 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | - |
| Rated voltage DC | 4000 |
| Rated current | 40 |
| Breaking capacity | 60 |
| Power loss at rated current | 45 |
| Model/type | |
| Type of current | DC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 395 |
| Package 1 | |
| volume | 0,00176176 |
| weight | 1,576 |
| length | 0,416 |
| width | 0,073 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5996516001363 |
| Dimensions of product | |
| Volume | 0,001652 |
| Weight | 1,576 |
| Length | 0,414 |
| Width | 0,057 |
| Depth | 0,07 |
