Descriere

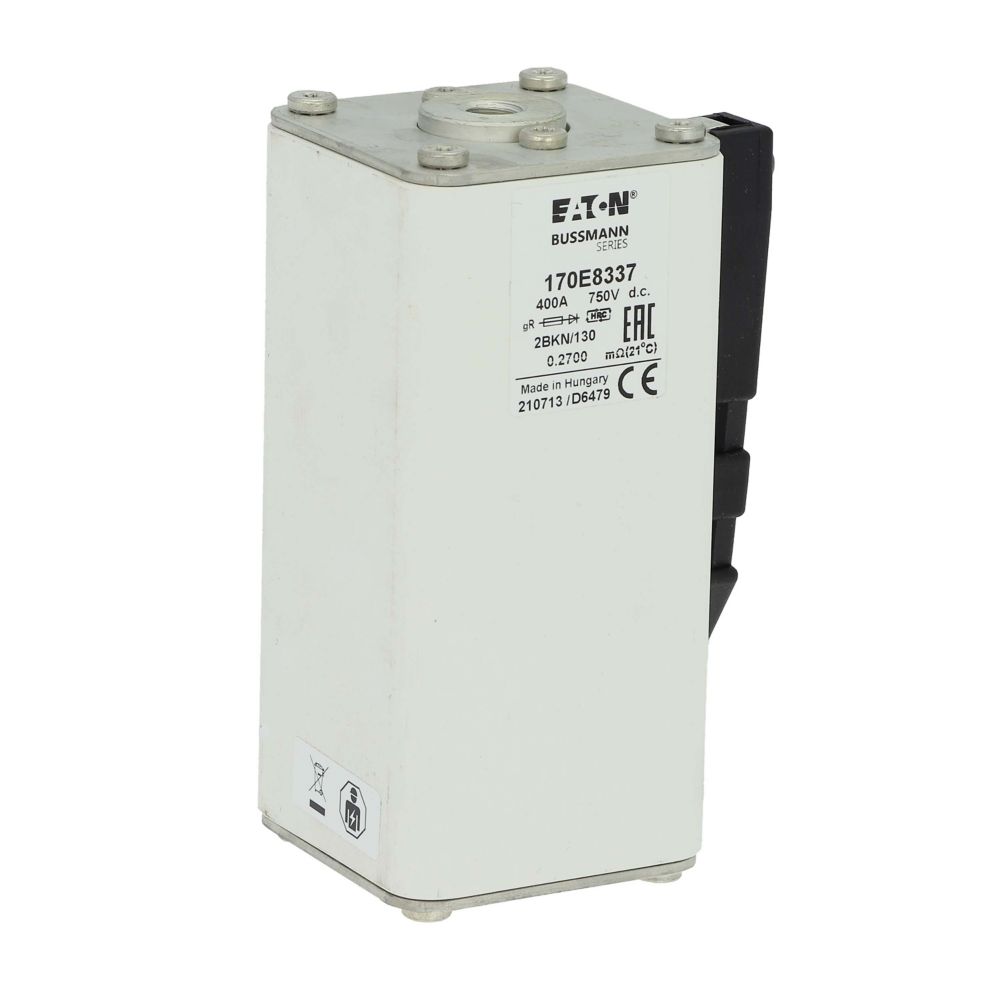

Fuse, Fuse-link, high speed, 400 A, DC 750 V, size 2, gR, IEC, with indicator, square body with centre-bolted tags (slotted), french style, indicator style K for microswitch, traction, IEC 60269-4, Breaking Capacity 100 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 2 |
| Rated voltage AC | - |
| Rated voltage DC | 750 |
| Rated current | 400 |
| Breaking capacity | 100 |
| Power loss at rated current | 73 |
| Model/type | |
| Type of current | DC |
| Colour code | None |
| Type of fuse status indicator | Other |
| Other | |
| Utilization category according to IEC 60269 | gR |
| Mounting/installation | |
| Mounting holes | Other |
| Connection | |
| Centre-to-centre distance of connections | 170 |
| Package 1 | |
| volume | 0,00167264 |
| weight | 1,3 |
| length | 0,217 |
| width | 0,094 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5996516007198 |
| Dimensions of product | |
| Volume | 0,00059059 |
| Weight | 1,3 |
| Length | 0,13 |
| Width | 0,059 |
| Depth | 0,077 |
