Descriere

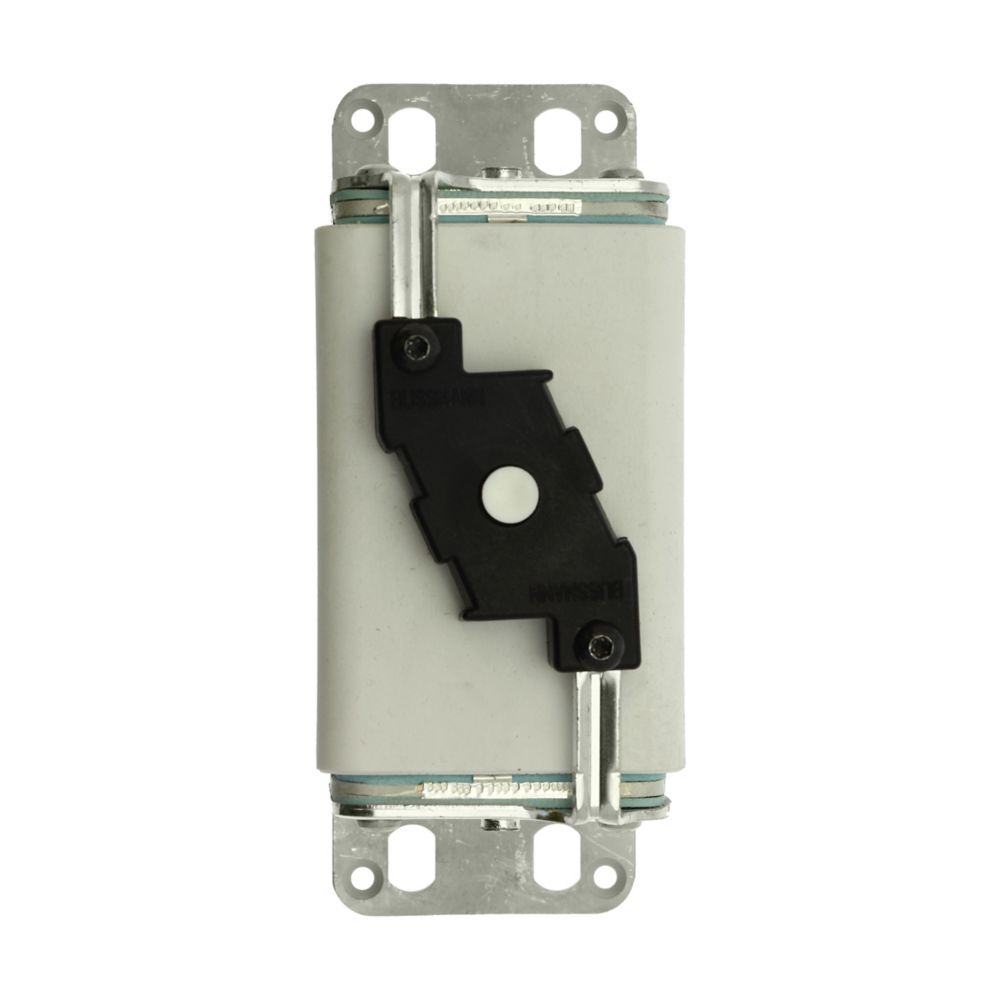

Fuse, Fuse-link, high speed, 400 A, DC 1200 V, size 2, 65 x 90 x 165 mm, aR, IEC, with indicator, square body with offset bolted tags, indicator style K for microswitch, traction, Breaking Capacity 100 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 2 |
| Rated voltage AC | - |
| Rated voltage DC | 1200 |
| Rated current | 400 |
| Breaking capacity | 100 |
| Power loss at rated current | 120 |
| Model/type | |
| Type of current | DC |
| Colour code | None |
| Type of fuse status indicator | Other |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 142 |
| Package 1 | |
| volume | 0,0010656 |
| weight | 1,051 |
| length | 0,168 |
| width | 0,095 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590245098 |
| Dimensions of product | |
| Volume | 0,0009801 |
| Weight | 1,051 |
| Length | 0,165 |
| Width | 0,066 |
| Depth | 0,09 |
