Descriere

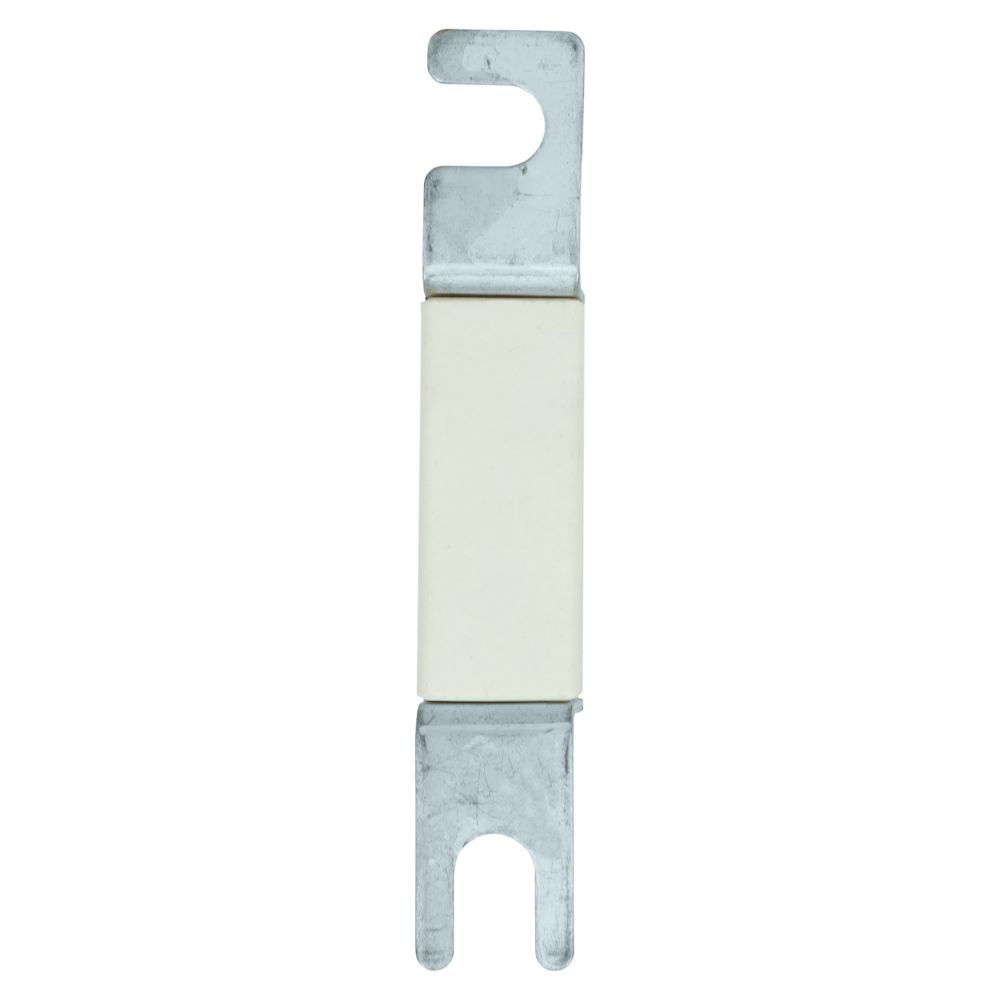

Fuse, Fuse-link, high speed, 25 A, AC 660 V, size 0000, 18 x 19 x 100 mm, gR, UL, visual indicator, square body with offset bolted tags (slotted), semiconductor protection, UL 248-13, Breaking Capacity 200 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 0000 |
| Rated voltage AC | 660 |
| Rated voltage DC | - |
| Rated current | 25 |
| Breaking capacity | 200 |
| Power loss at rated current | 8 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | gR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 78 |
| Package 1 | |
| volume | 0,0000342 |
| weight | 0,0525 |
| length | 0,102 |
| width | 0,021 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590440516 |
| Package 2 | |
| volume | 0,005712 |
| weight | 0,525 |
| length | 0,14 |
| width | 0,102 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590337717 |
| Package 3 | |
| volume | 0,018865 |
| weight | 11,6 |
| length | 0,385 |
| width | 0,28 |
| qmax | 200 |
| qmin | 200 |
| um | CT |
| gtin | 5027590344838 |
| Dimensions of product | |
| Volume | 0,0000342 |
| Weight | 0,0525 |
| Length | 0,1 |
| Width | 0,019 |
| Depth | 0,018 |
