Descriere

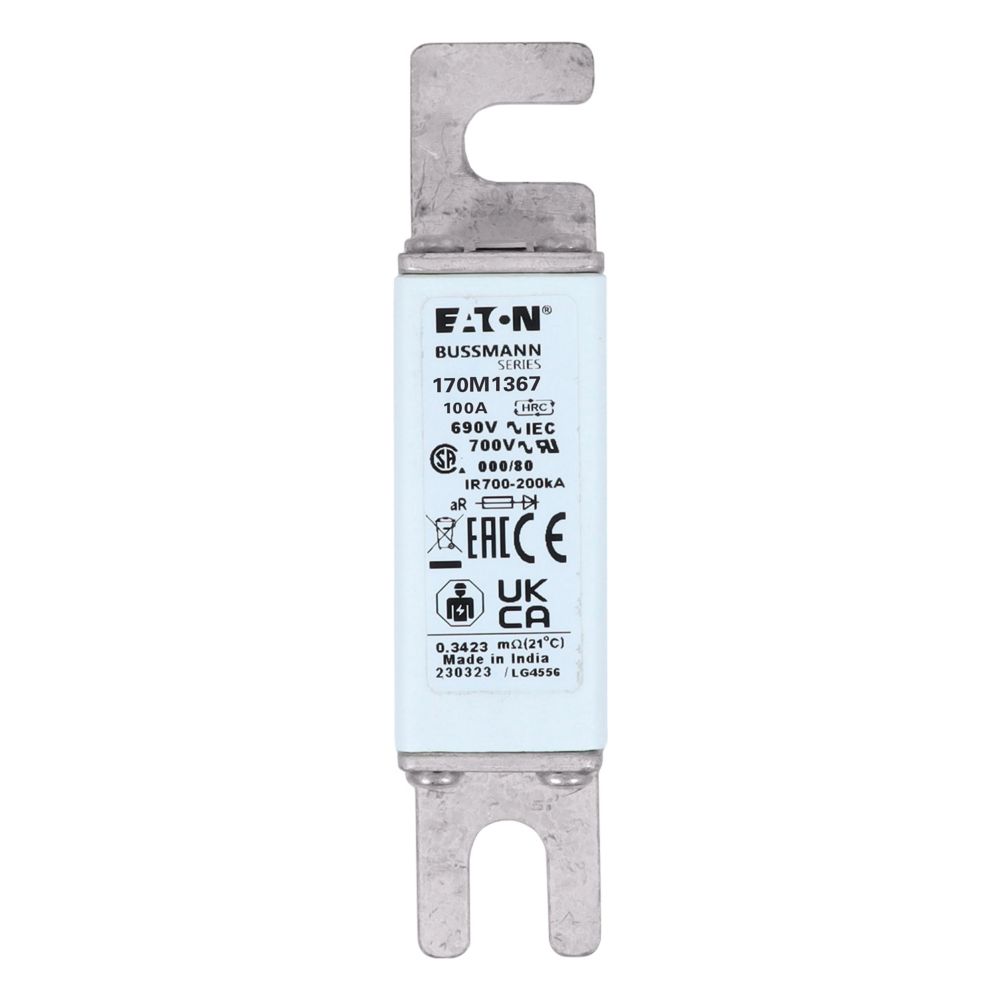

High speed square body fuse, Voltage rating: 690 V (IEC), 700 V (UL), Amperage rating: 100 A, Fuse size: 000, Fuse indicator: Top fuse status indicator, Fuse shape: Square body, slotted offset bolted tags, DIN 43653, /80 Visual indicator, Utilization category: aR (accompanied semiconductor protection)
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 000 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 100 |
| Breaking capacity | 200 |
| Power loss at rated current | 24 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 76.7 |
| Package 1 | |
| volume | 0,001449 |
| weight | 0,1441 |
| length | 0,107 |
| width | 0,302 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590440844 |
| Package 2 | |
| volume | 0,01449 |
| weight | 1,441 |
| length | 0,105 |
| width | 0,3 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590332781 |
| Dimensions of product | |
| Volume | 0,001449 |
| Weight | 0,1441 |
| Length | 0,105 |
| Width | 0,3 |
| Depth | 0,046 |
