Descriere

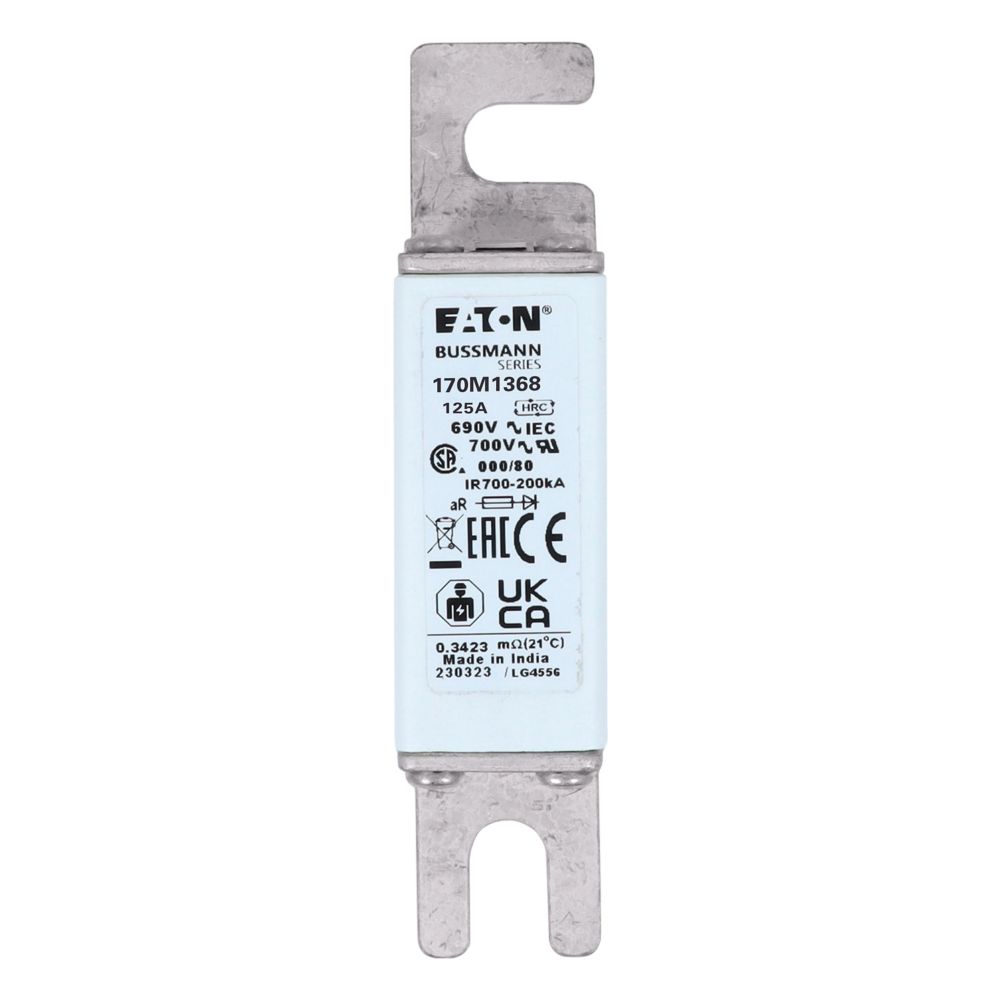

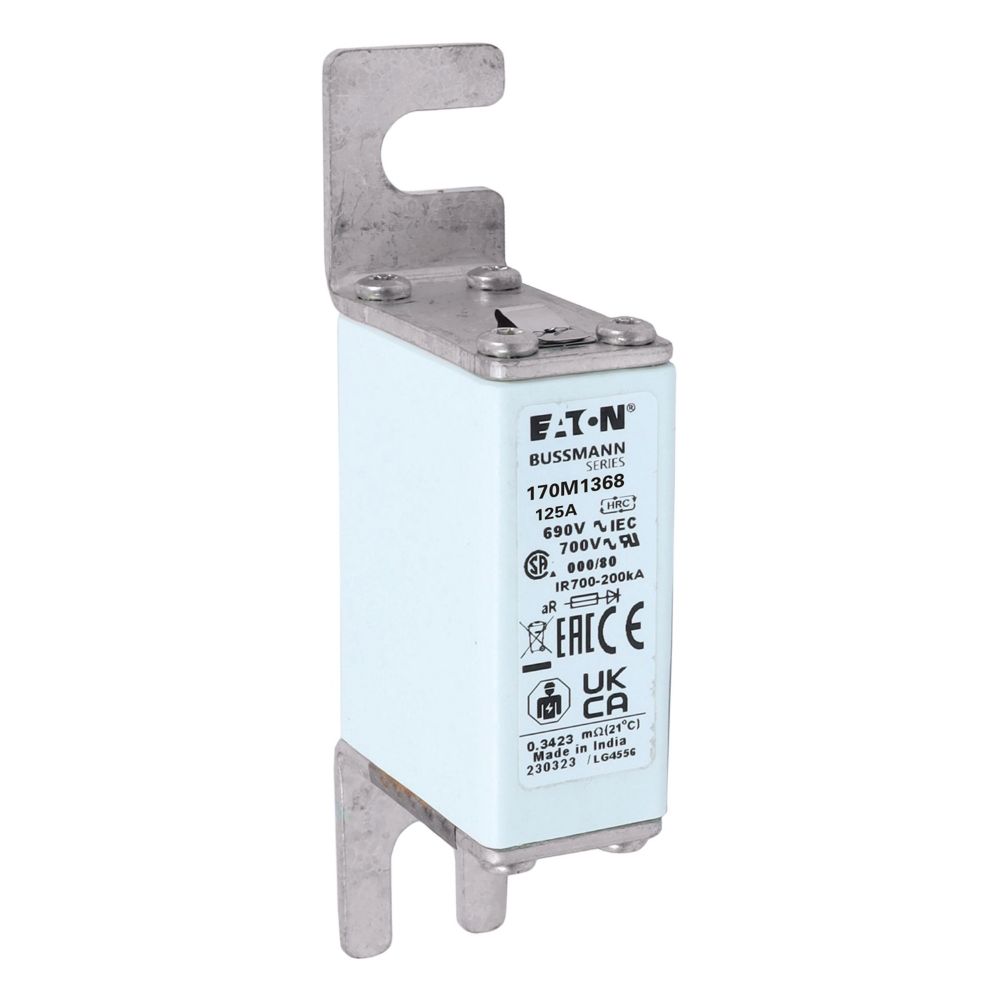

FUSE 125A 690V 000/80 AR UC
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | - |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 125 |
| Breaking capacity | 200 |
| Power loss at rated current | 28 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | - |
| Connection | |
| Centre-to-centre distance of connections | - |
| Package 1 | |
| volume | 0,001449 |
| weight | 0,1453 |
| length | 0,107 |
| width | 0,302 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590440851 |
| Package 2 | |
| volume | 0,01449 |
| weight | 1,453 |
| length | 0,105 |
| width | 0,3 |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 5027590073851 |
| Package 3 | |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 5996516054776 |
| Dimensions of product | |
| Volume | 0,001449 |
| Weight | 0,1357 |
| Length | 0,105 |
| Width | 0,3 |
| Depth | 0,046 |
