Descriere

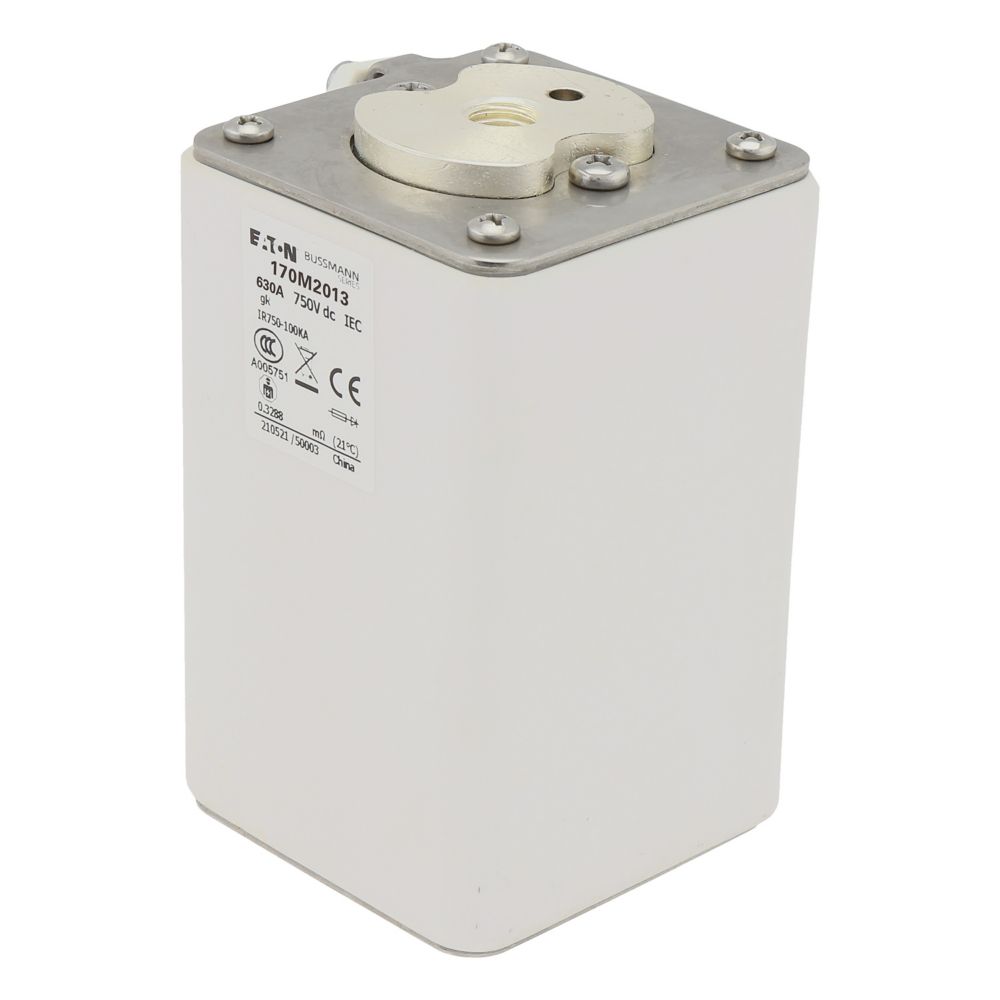

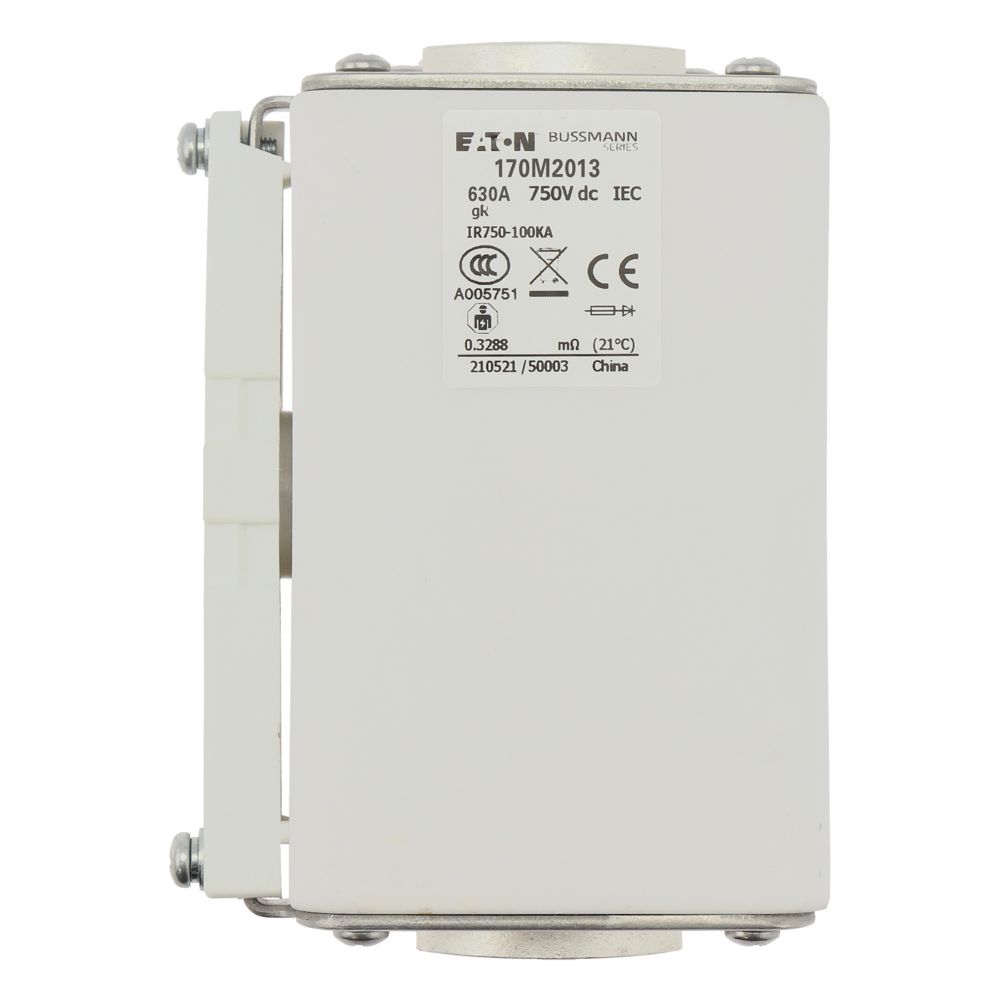

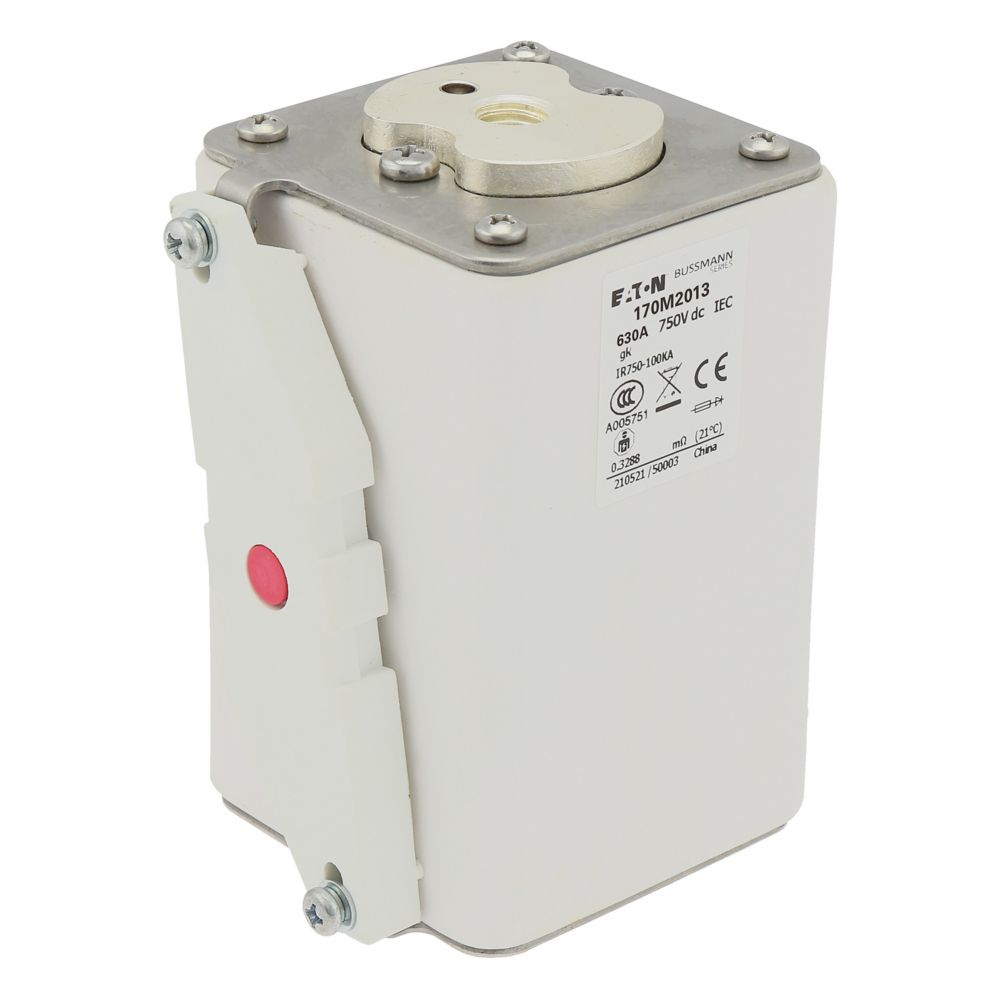

Fuse, Fuse-link, high speed, 630 A, DC 750 V, size 3, 75 x 88 x 131 mm, gR, IEC, single indicator, square body with flush end contacts, indicator style K for microswitch, traction, third rail, IEC 60269-4, Breaking Capacity 110 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | IEC 60269-4 flush end connections type A |
| Fuse construction type according to IEC 60269 | 3 |
| Rated voltage AC | - |
| Rated voltage DC | 750 |
| Rated current | 630 |
| Breaking capacity | 110 |
| Power loss at rated current | 142 |
| Model/type | |
| Type of current | DC |
| Colour code | None |
| Type of fuse status indicator | Other |
| Other | |
| Utilization category according to IEC 60269 | gR |
| Mounting/installation | |
| Mounting holes | Other |
| Connection | |
| Centre-to-centre distance of connections | 129 |

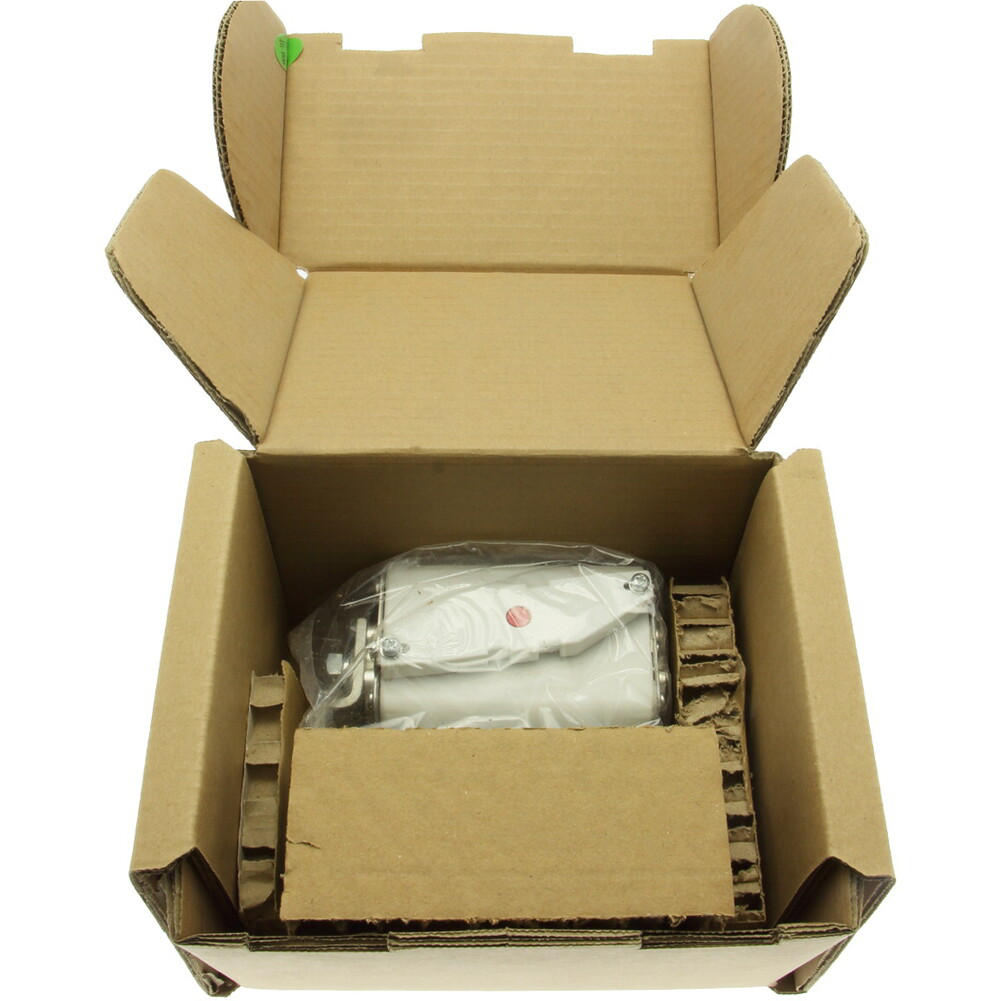

| Package 1 | |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590303583 |
| Dimensions of product | |
| Volume | 0,0008646 |
| Weight | 2,08 |
| Length | 0,131 |
| Width | 0,075 |
| Depth | 0,088 |
