Descriere

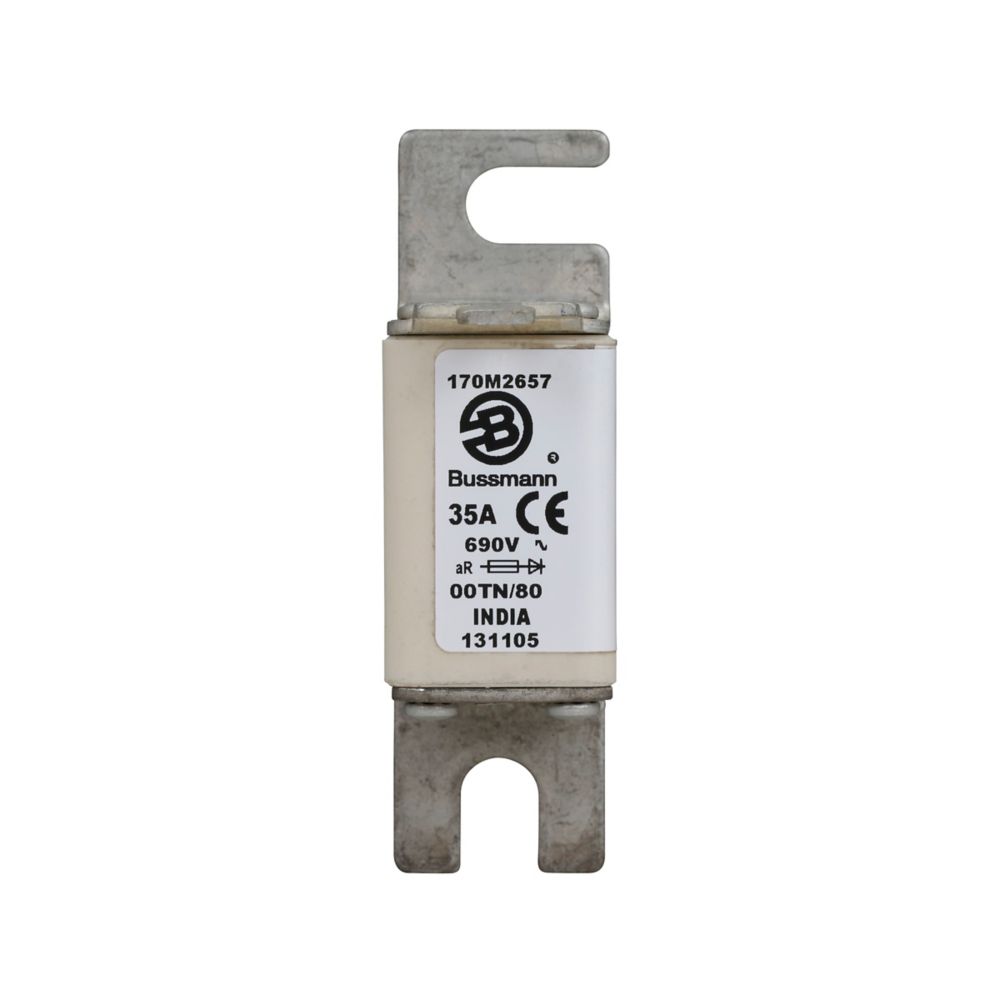

Fuse, Fuse-link, high speed, 35 A, AC 690 V, size 00, 30 x 67 x 100 mm, gR, DIN, IEC, single indicator, square body with offset bolted tags (slotted), indicator style T for microswitch, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 200 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 00 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 35 |
| Breaking capacity | 200 |
| Power loss at rated current | - |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | gR |
| Mounting/installation | |
| Mounting holes | M10 |
| Connection | |
| Centre-to-centre distance of connections | 78 |
| Package 1 | |
| volume | 0,002153 |
| weight | 0,235333 |
| length | 0,235 |
| width | 0,142 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590442329 |
| Package 2 | |
| volume | 0,01291752 |
| weight | 1,412 |
| length | 0,233 |
| width | 0,14 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 5027590338219 |
| Package 3 | |
| volume | 0,018865 |
| weight | 8,472 |
| length | 0,385 |
| width | 0,28 |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 5027590345538 |
| Dimensions of product | |
| Volume | 0,002153 |
| Weight | 0,235333 |
| Length | 0,233 |
| Width | 0,14 |
| Depth | 0,066 |
