Descriere

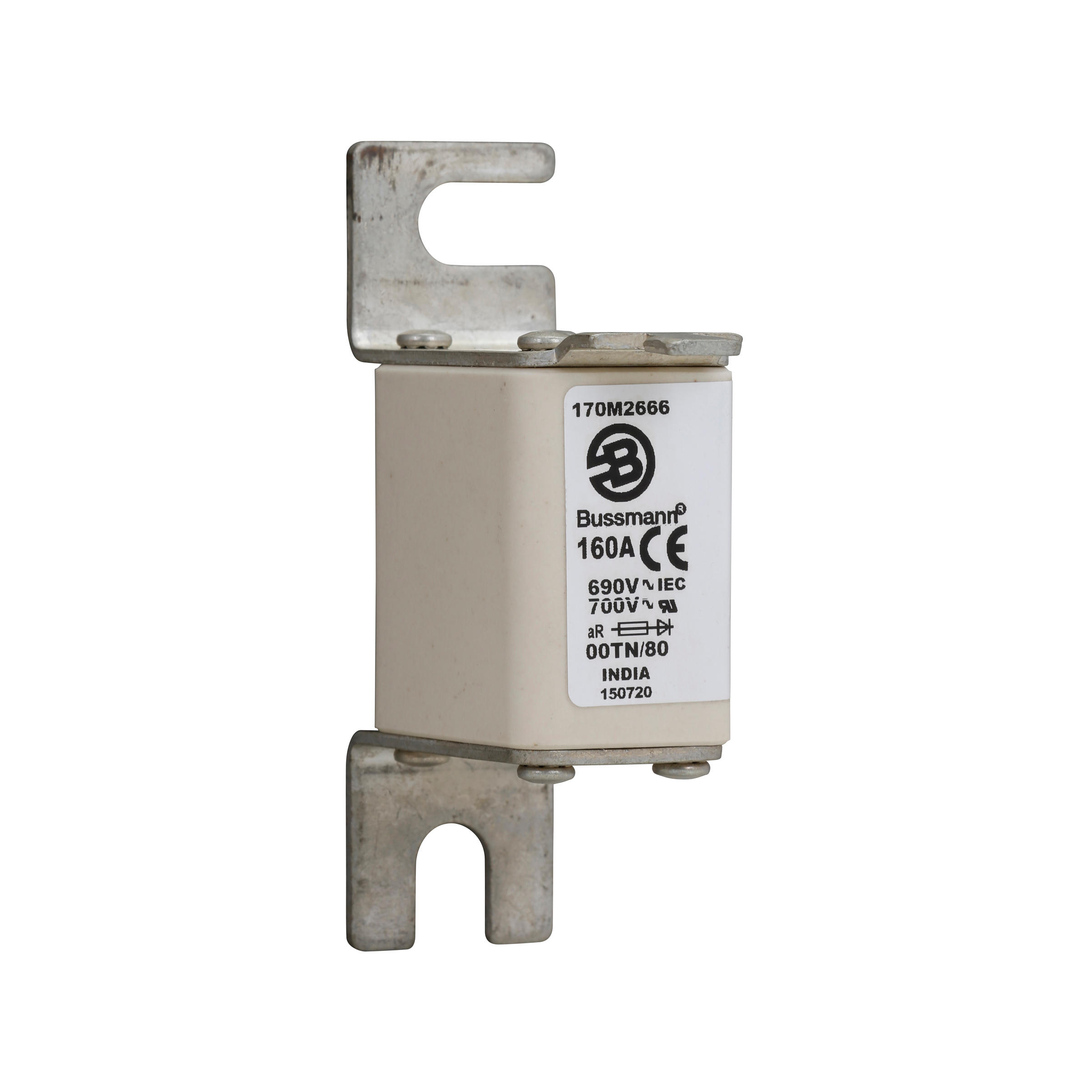

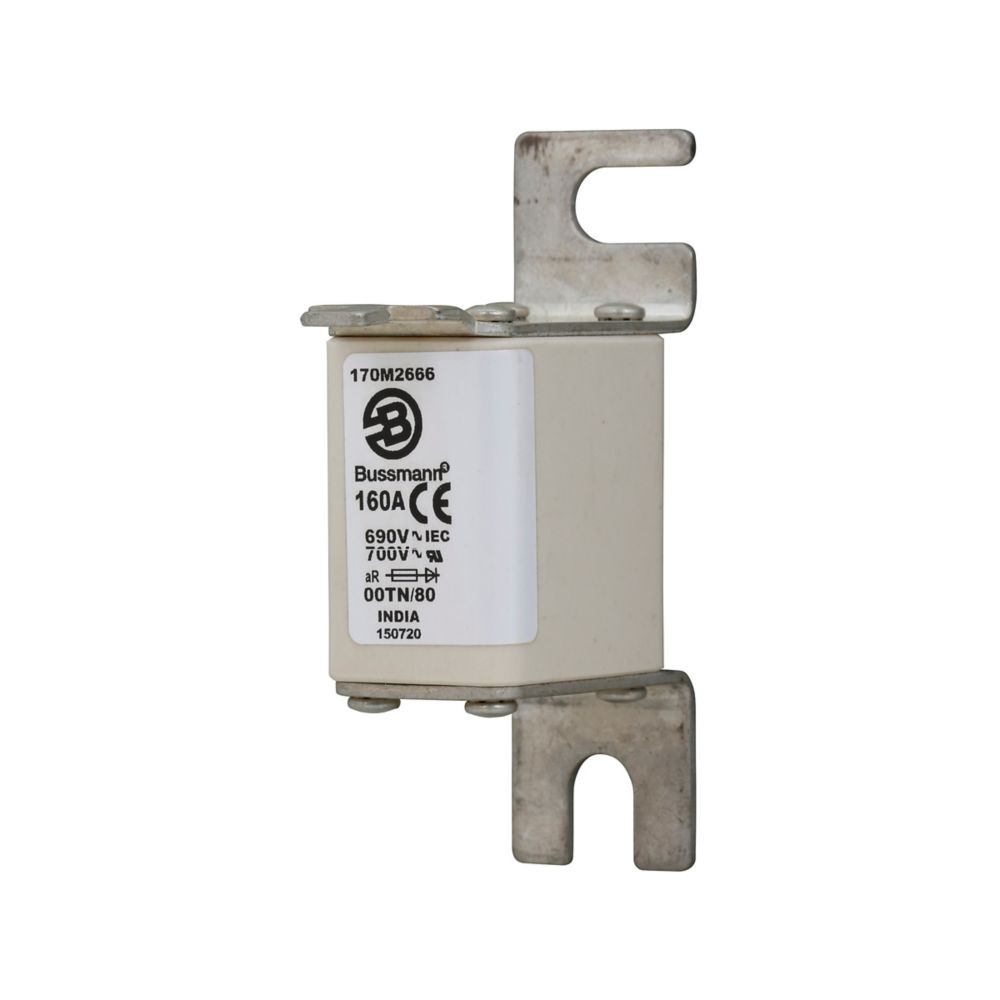

Fuse, Fuse-link, high speed, 160 A, AC 690 V, DIN 00, aR, DIN, IEC, single (top) indicator system, square body with offset bolted tags (slotted), live gripping lugs, indicator style T for microswitch, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 200 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 00 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 160 |
| Breaking capacity | 200 |
| Power loss at rated current | 30 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M10 |
| Connection | |
| Centre-to-centre distance of connections | 78 |
| Package 1 | |
| volume | 0,000201 |
| weight | 0,2225 |
| length | 0,102 |
| width | 0,032 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590442435 |
| Package 2 | |
| volume | 0,00215292 |
| weight | 1,335 |
| length | 0,233 |
| width | 0,14 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 5027590338271 |
| Package 3 | |
| volume | 0,018865 |
| weight | 8,594 |
| length | 0,385 |
| width | 0,28 |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 5027590345637 |
| Dimensions of product | |
| Volume | 0,000201 |
| Weight | 0,2225 |
| Length | 0,1 |
| Width | 0,03 |
| Depth | 0,067 |
