Descriere

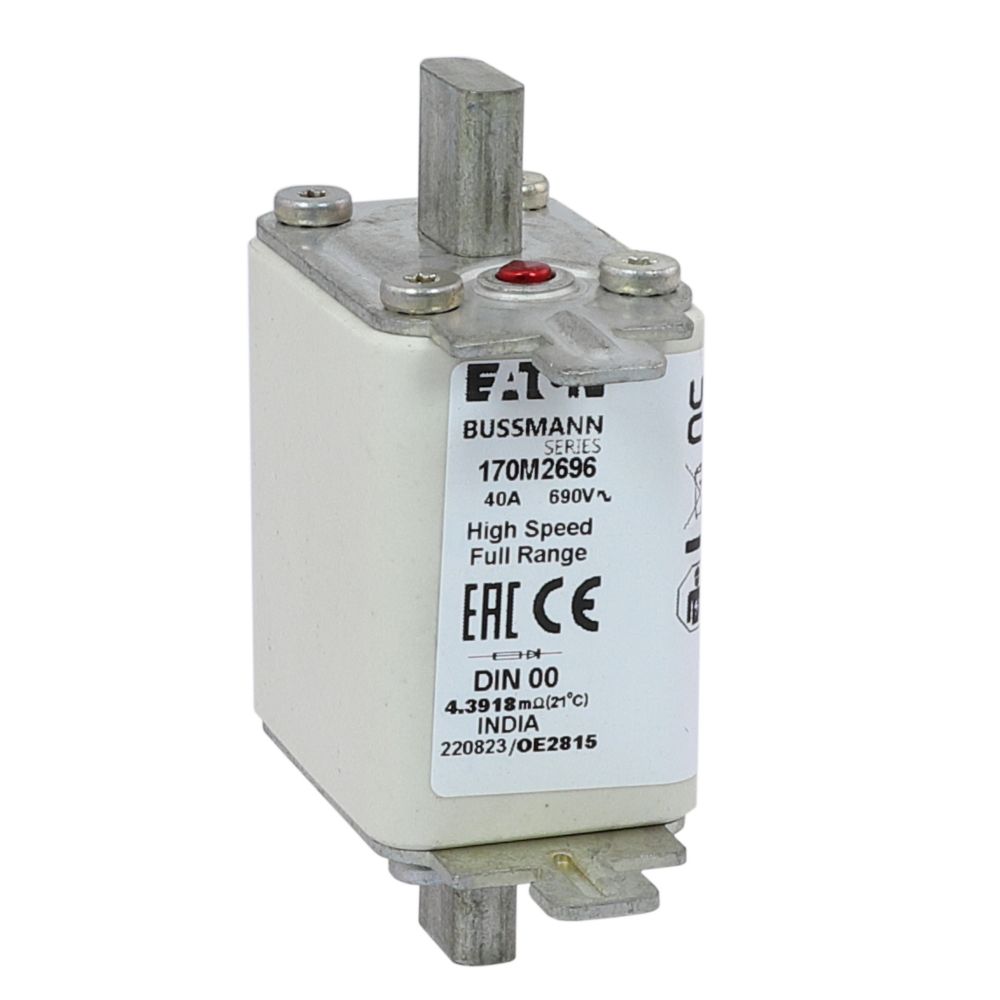

Fuse, Fuse-link, high speed, 40 A, AC 690 V, DIN 00, 30 x 60 x 79 mm, gR, DIN, IEC, single indicator, square body with knife blade contacts, live gripping lugs, indicator style T for microswitch, semiconductor protection, DIN 43620, IEC 60269-4, Breaking Capacity 200 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | 00 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 40 |
| Breaking capacity | 200 |
| Power loss at rated current | 10 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | gR |
| Mounting/installation | |
| Mounting holes | - |
| Connection | |
| Centre-to-centre distance of connections | - |
| Package 1 | |
| volume | 0,001199 |
| weight | 0,217667 |
| length | 0,219 |
| width | 0,087 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590442831 |
| Package 2 | |
| volume | 0,00719355 |
| weight | 1,306 |
| length | 0,217 |
| width | 0,085 |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 5027590338509 |
| Package 3 | |
| volume | 0,018865 |
| weight | 13,06 |
| length | 0,385 |
| width | 0,28 |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 5027590345897 |
| Dimensions of product | |
| Volume | 0,001199 |
| Weight | 0,218 |
| Length | 0,217 |
| Width | 0,085 |
| Depth | 0,065 |
