Descriere

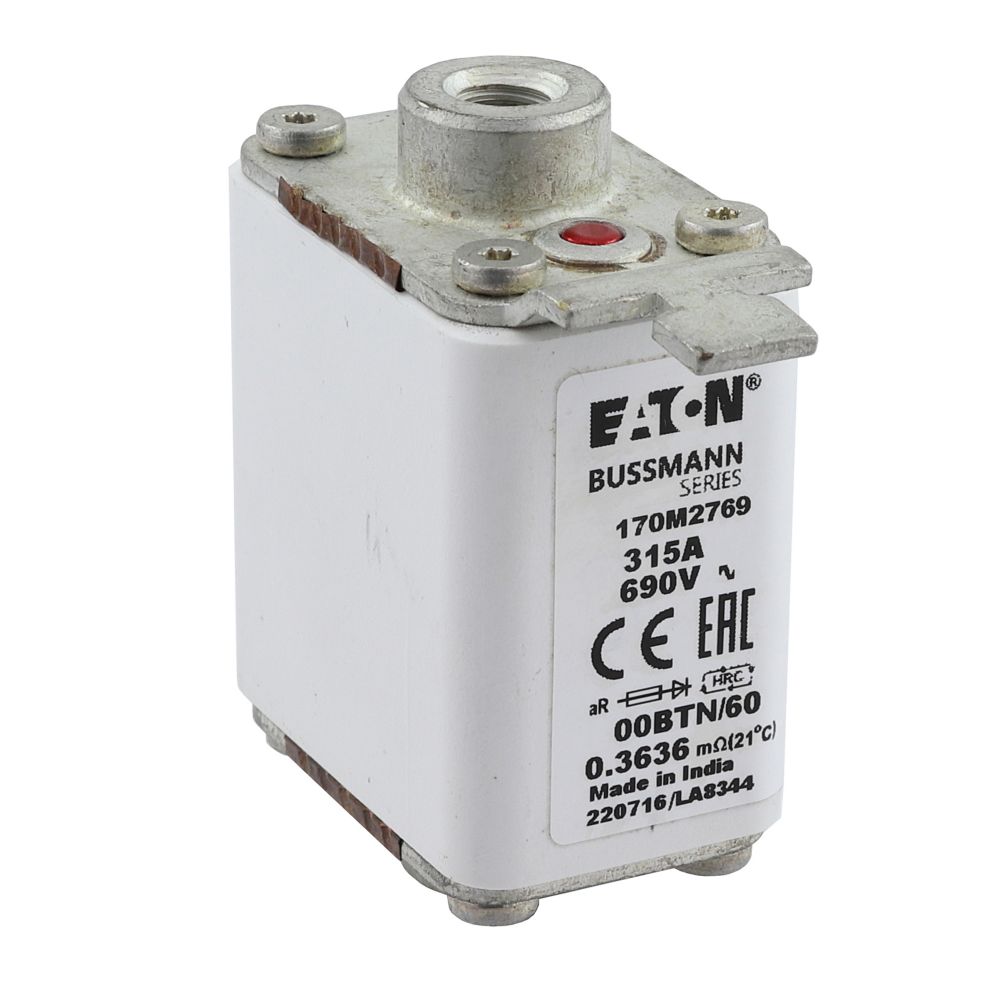

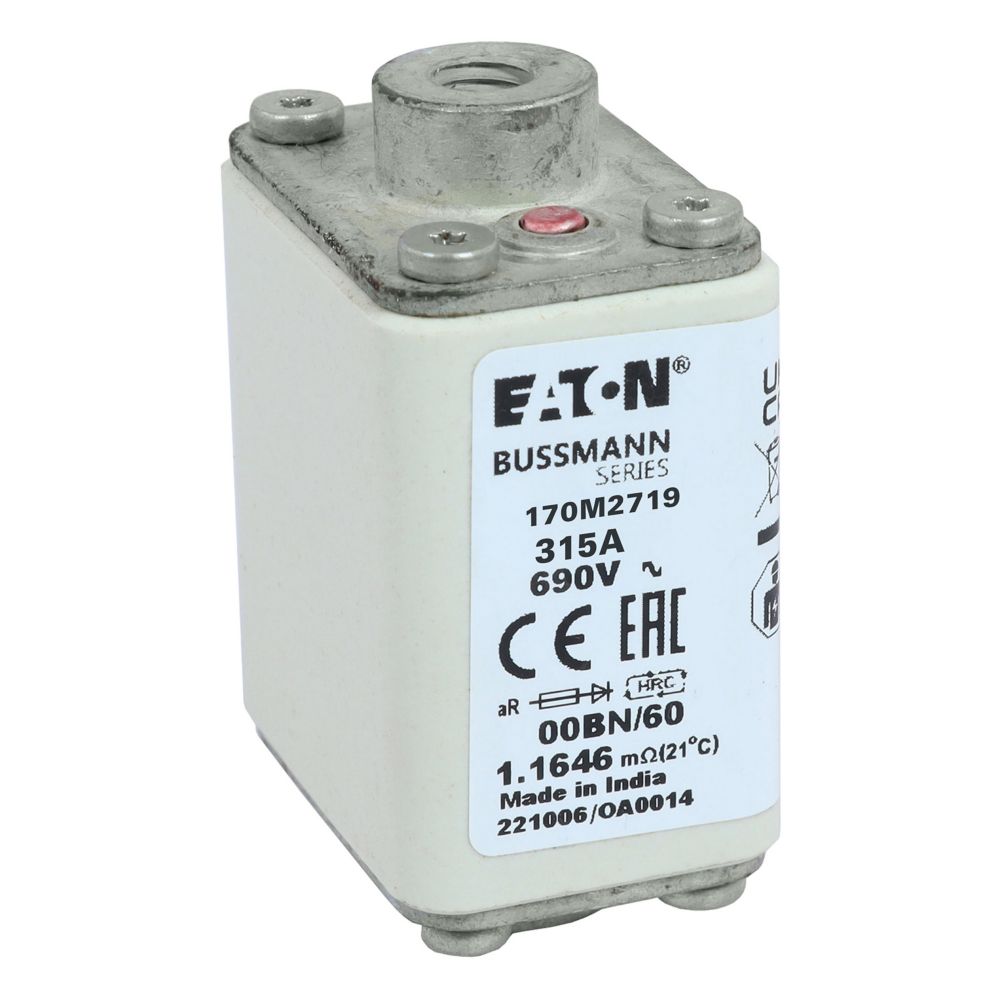

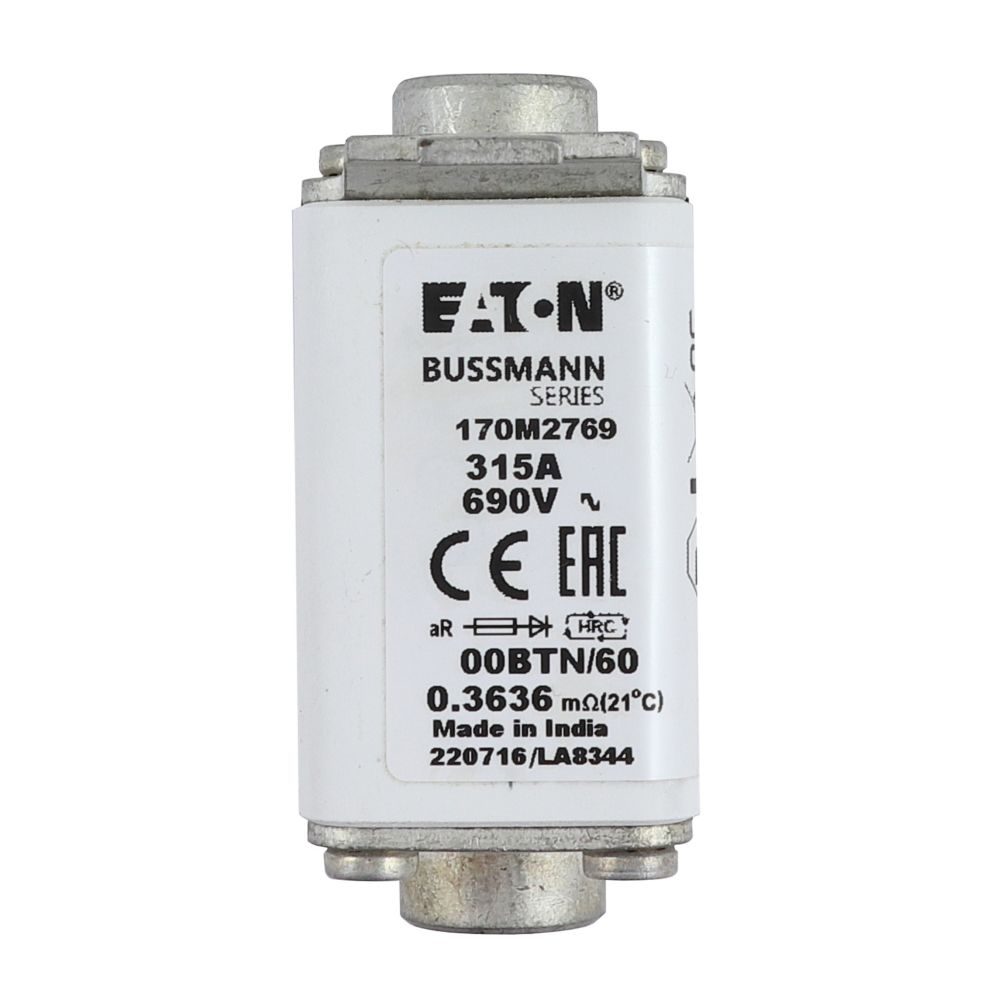

Fuse, Fuse-link, high speed, 315 A, AC 690 V, size 00, 30 x 62 x 64 mm, aR, IEC, single indicator, square body with flush end contacts, indicator style T for microswitch, semiconductor protection, IEC 60269-4, Breaking Capacity 200 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | IEC 60269-4 flush end connections type A |
| Fuse construction type according to IEC 60269 | 00 |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 315 |
| Breaking capacity | 200 |
| Power loss at rated current | 55 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Top fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 64 |
| Package 1 | |
| volume | 0,00094133 |
| weight | 0,2286 |
| length | 0,077 |
| width | 0,165 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590443494 |
| Package 2 | |
| volume | 0,00470663 |
| weight | 1,143 |
| length | 0,075 |
| width | 0,163 |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 5027590338714 |
| Package 3 | |
| volume | 0,018865 |
| weight | 13,716 |
| length | 0,385 |
| width | 0,28 |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 5027590346153 |
| Dimensions of product | |
| Volume | 0,00094133 |
| Weight | 0,2286 |
| Length | 0,075 |
| Width | 0,163 |
| Depth | 0,077 |
