Descriere

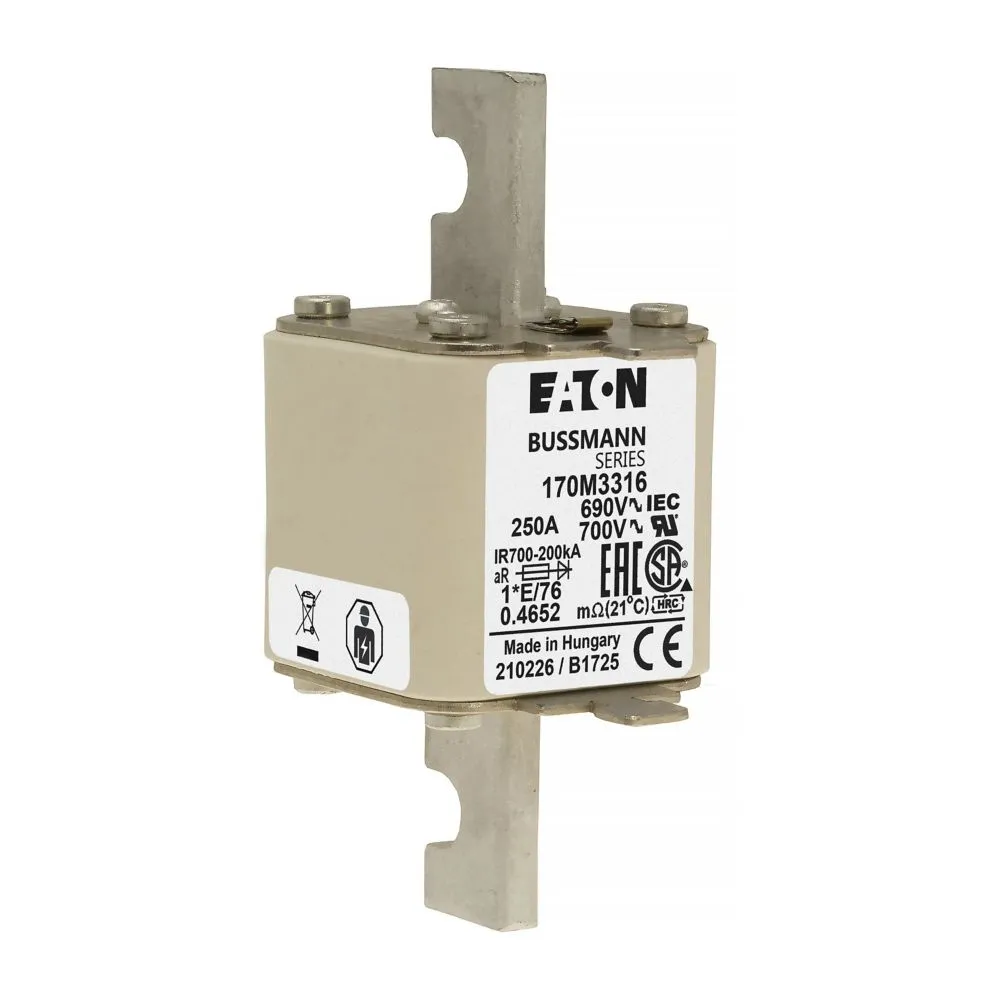

Fuse, Fuse-link, high speed, 250 A, AC 690 V, compact size 1, 45 x 59 x 102 mm, aR, IEC, UL, single indicator, square body with centre-bolted tags (slotted), french style, indicator style K for microswitch, semiconductor protection, IEC 60269-4, Breaking Capacity 200 kA
Specificatii
| Electrical | |
| Fuse system according to IEC 60269 | Other |
| Fuse construction type according to IEC 60269 | Other |
| Rated voltage AC | 690 |
| Rated voltage DC | - |
| Rated current | 250 |
| Breaking capacity | 200 |
| Power loss at rated current | 40 |
| Model/type | |
| Type of current | AC |
| Colour code | None |
| Type of fuse status indicator | Centre fuse status indicator |
| Other | |
| Utilization category according to IEC 60269 | aR |
| Mounting/installation | |
| Mounting holes | M8 |
| Connection | |
| Centre-to-centre distance of connections | 76 |
| Package 1 | |
| volume | 0,001667 |
| weight | 0,704667 |
| length | 0,17 |
| width | 0,126 |
| qmax | 1 |
| qmin | 1 |
| um | CS |
| gtin | 5027590447317 |
| Package 2 | |
| volume | 0,00499968 |
| weight | 2,114 |
| length | 0,168 |
| width | 0,124 |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 5996516010419 |
| Package 3 | |
| volume | 0,018865 |
| weight | 8,456 |
| length | 0,385 |
| width | 0,28 |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 5027590348072 |
| Dimensions of product | |
| Volume | 0,001667 |
| Weight | 0,705 |
| Length | 0,168 |
| Width | 0,124 |
| Depth | 0,08 |
